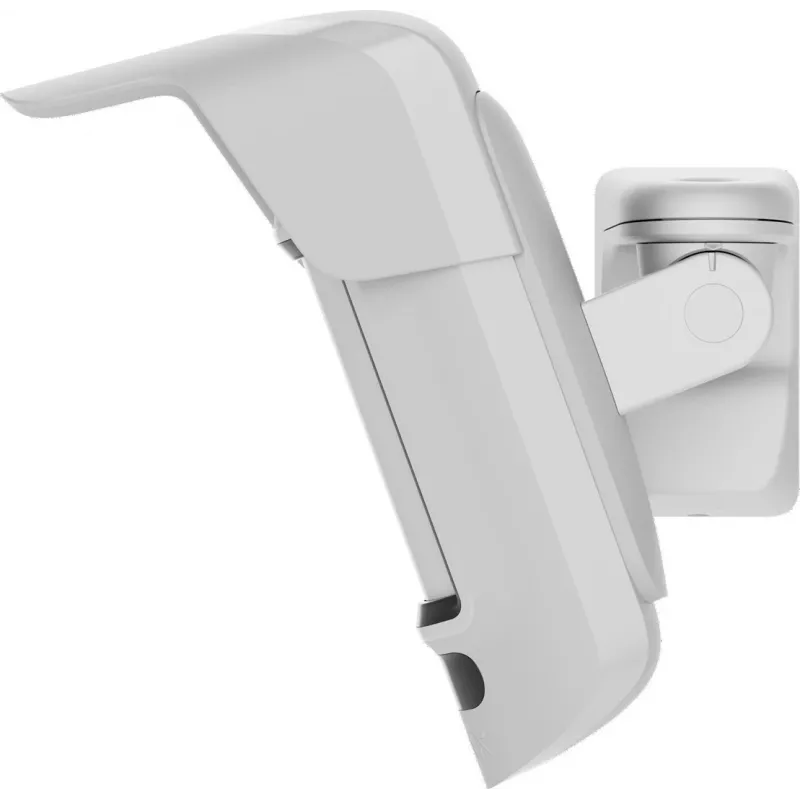

AJAX CurtainCam Outdoor HighMount (PhOD) - Branco

The AJAX CurtainCam Outdoor HighMount (PhOD) is a wireless outdoor motion detector with photo verification, designed for perimeter protection. It creates a narrow curtain detection zone, ideal for protecting windows, doors, and fences. With built-in camera and infrared illumination, it captures verification photos even in complete darkness.

Advantages

Curtain detection zone minimizes false alarms by focusing on a narrow vertical plane. Photo verification provides visual confirmation of events. HighMount design allows installation at heights up to 1.3 meters for optimal coverage. Anti-masking technology detects attempts to block the sensor. Long battery life of up to 3 years reduces maintenance.

Suitable for

• Protecting windows, doors, and glass walls
• Perimeter security for residential and commercial properties
• Integration with AJAX security systems

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection range: Up to 15 meters
• Detection angle: Horizontal 6°, Vertical 90°
• Photo resolution: Up to 640x480 pixels
• Night vision: Infrared illumination
• Wireless communication: Jeweller (alarms), Wings (photos)
• Wireless range: Up to 1700 meters (open space)
• Power: 2 x CR123A batteries (included)
• Battery life: Up to 3 years
• IP rating: IP54
• Operating temperature: -25°C to +50°C
• Anti-masking: Yes
• Color: White

Recommendations

For best performance, install at a height of 0.8 to 1.3 meters. Compatible with AJAX Hub 2, Hub 2 Plus, Hub 2 (4G), and Hub 2 Plus (4G).
