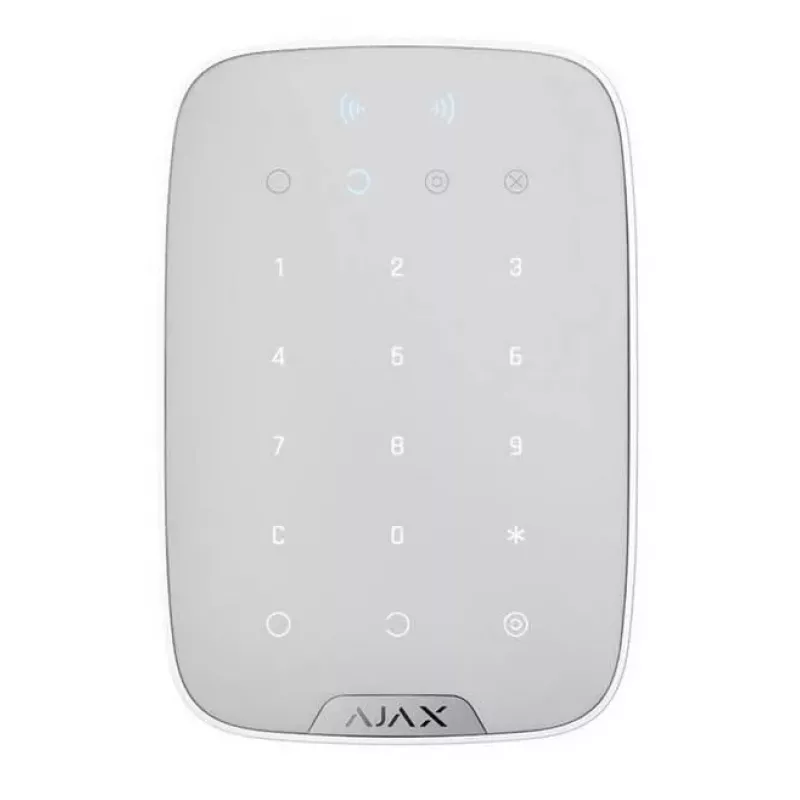

AJAX KEYPAD WRL/PLUS WHITE

The AJAX KeyPad WRL/Plus White is a wireless touch keypad designed for seamless integration with Ajax security systems. It provides intuitive arming/disarming control, panic button, and duress code functionality, all while maintaining high security through encrypted Jeweller communication.

Advantages

Wireless installation eliminates the need for cabling, making it ideal for retrofits and new installations. The keypad supports contactless access via Ajax Pass and Tag, and features remote over-the-air firmware updates for future-proofing. With a battery life of up to 4 years and tamper protection, it offers reliable, low-maintenance operation.

Suitable for

• Residential and commercial security systems
• Indoor use in homes, offices, and retail spaces
• Users requiring quick arming/disarming with panic and duress options

Key specifications

• Product Type: Wireless Touch Keypad
• Compatibility: Ajax Security Systems
• Communication Technology: Jeweller (868.0–868.6 MHz)
• Range: Up to 1700 m (line of sight)
• Encryption: AES-based block encryption
• Power Supply: 6 x AA batteries (pre-installed)
• Battery Life: Up to 4 years
• Contactless Access: Ajax Pass and Tag (DESFire EV1, EV2, EV3, ISO14443-A)
• Arming/Disarming: Yes
• Panic Button: Yes
• Duress Code: Yes
• Tamper Protection: Yes (opening and detachment)
• Indication: LED indicators
• Installation Environment: Indoor
• Operating Temperature: -10°C to +40°C
• Operating Humidity: Up to 75%
• Colour: White
• Material: ABS Plastic
• Firmware Update: Remote OTA

Recommendations

For optimal performance, install the keypad within the Jeweller communication range of the Ajax hub. Use only recommended batteries and ensure firmware is kept up to date via the Ajax app.
