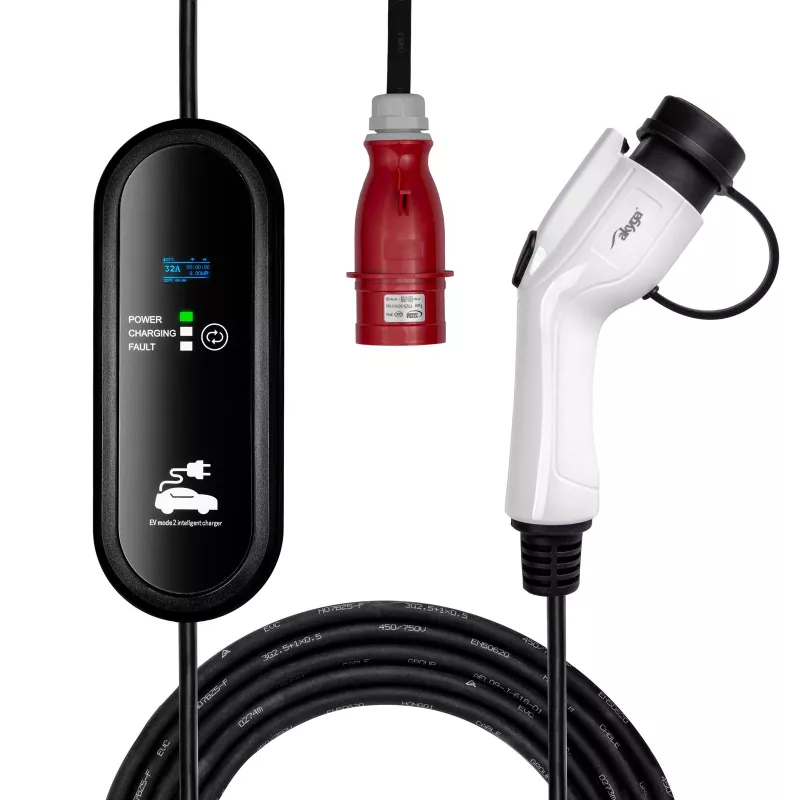

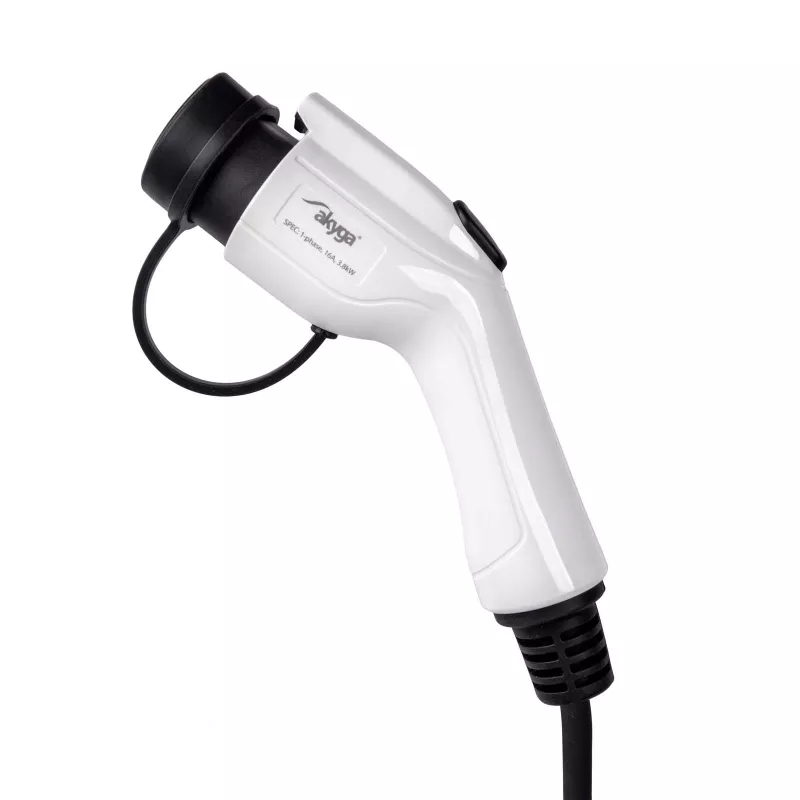

Akyga AK-EC-24 carregador EV móvel, GB/T, ficha CEE 5 pinos, trifásico, 32 A, 22 kW, LCD, 5 m

The Akyga AK-EC-24 is a three-phase GB/T portable EV charger with a CEE 5-pin plug, designed for electric vehicles imported from China. It enables fast charging at up to 22 kW and features an LCD display for monitoring operating parameters in real time.

Key features

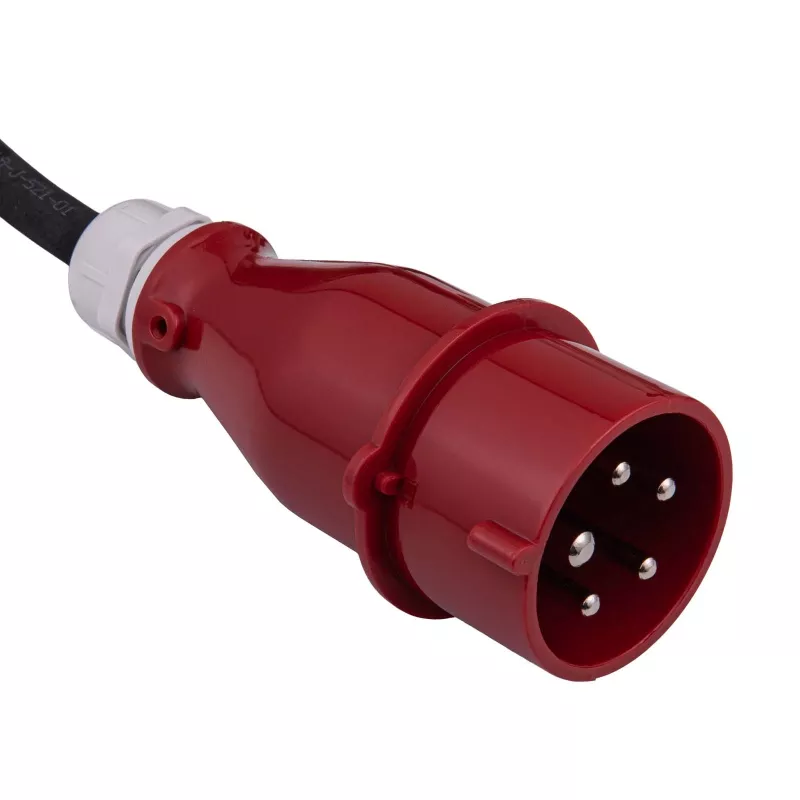

• Three-phase GB/T charger with CEE 5-pin plug
• Adjustable charging current: 8 A, 10 A, 13 A, 16 A, 32 A

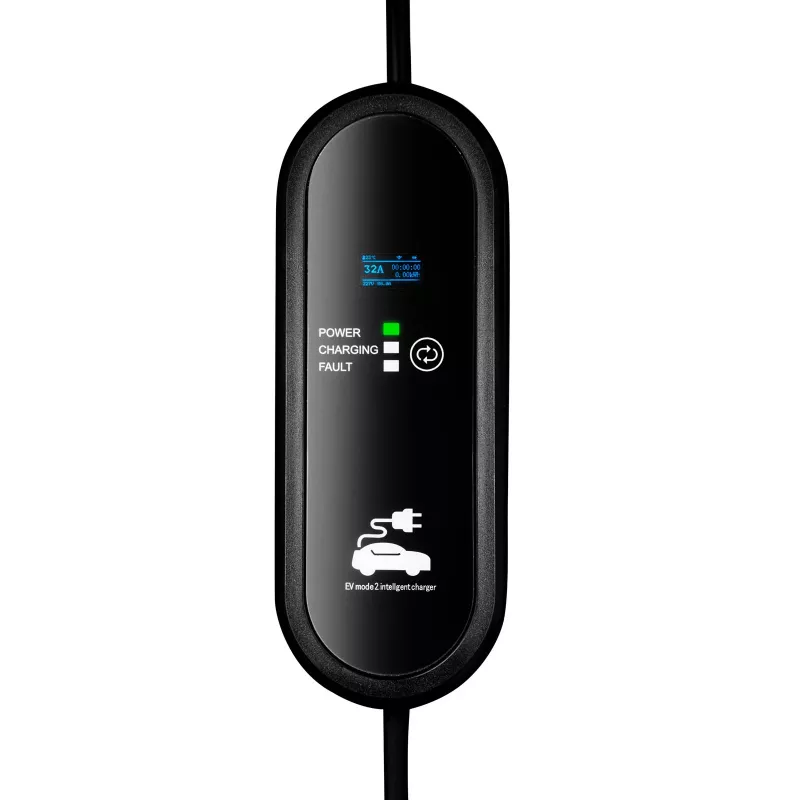

• LCD display for real-time monitoring
• Safety features: over voltage, over current, over power, overheating, short circuit protection
• IP54-rated housing
• 5 m cable

Specifications

• Brand: Akyga
• MPN: AK-EC-24
• Product colour: Blue
• Housing material: ABS Plastic
• AC input voltage: 240 - 450 V
• AC input frequency: 50/60 Hz
• Output current: 32 A
• Maximum current: 32 A (adjustable 8 / 10 / 13 / 16 / 32 A)
• Output power: 22 kW
• Power cable length: 5 m
• International Protection (IP) code: IP54
• Display type: LCD
• Built-in display: Yes
• Weight: 3.7 kg
• Package weight: 4.1 kg
