Carregador móvel para veículos elétricos QOLTEC 52468 Type 2, 3,5 kW, 16 A, cabo de 5 m, IP65

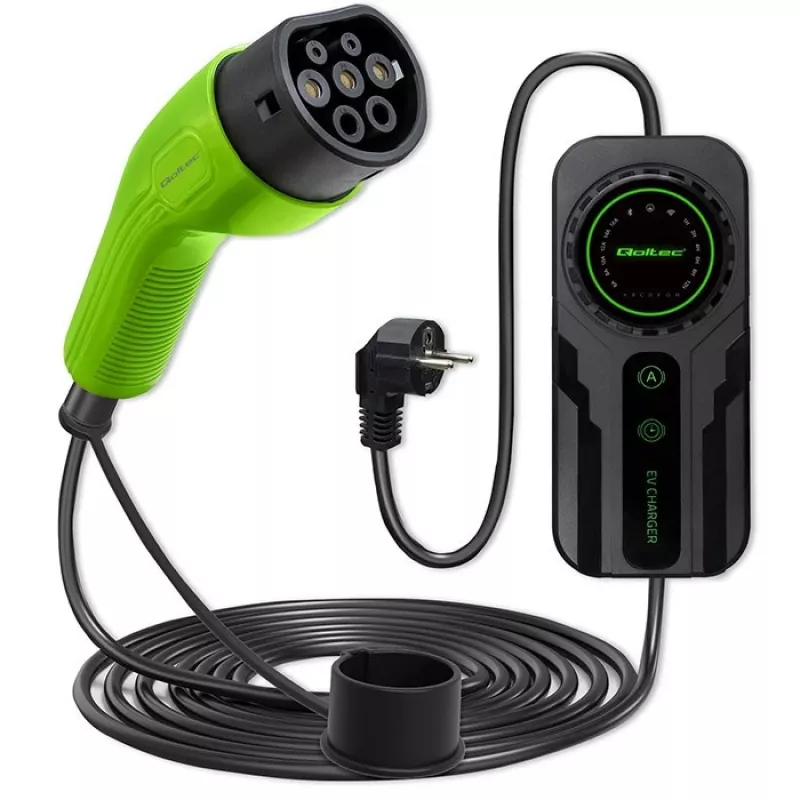

The QOLTEC 52468 mobile EV charger with a Type 2 (IEC62196-2) connector delivers 3.5 kW charging power at 230 V and 16 A. The unit is designed as a portable charging solution with a 5 m cable and IP65-rated enclosure for protection against dust and water, making it suitable for outdoor and indoor use. Built-in safety functions include undervoltage, short-circuit, overvoltage, overtemperature, overcurrent, ungrounded protection and leakage protection.

Advantages

The charger offers compact portability with a long 5 m cable and weather-resistant IP65 construction. It supports standard Type 2 charging for broad compatibility and integrates multiple safety features to protect the vehicle and electrical installation. Its 16 A current rating provides steady 3.5 kW charging suitable for daily top-ups.

Suitable for

• Charging electric vehicles with a Type 2 inlet
• Home charging when a portable, weather-resistant unit is needed
• Public or workplace charging where temporary or mobile charging is required

Key specifications

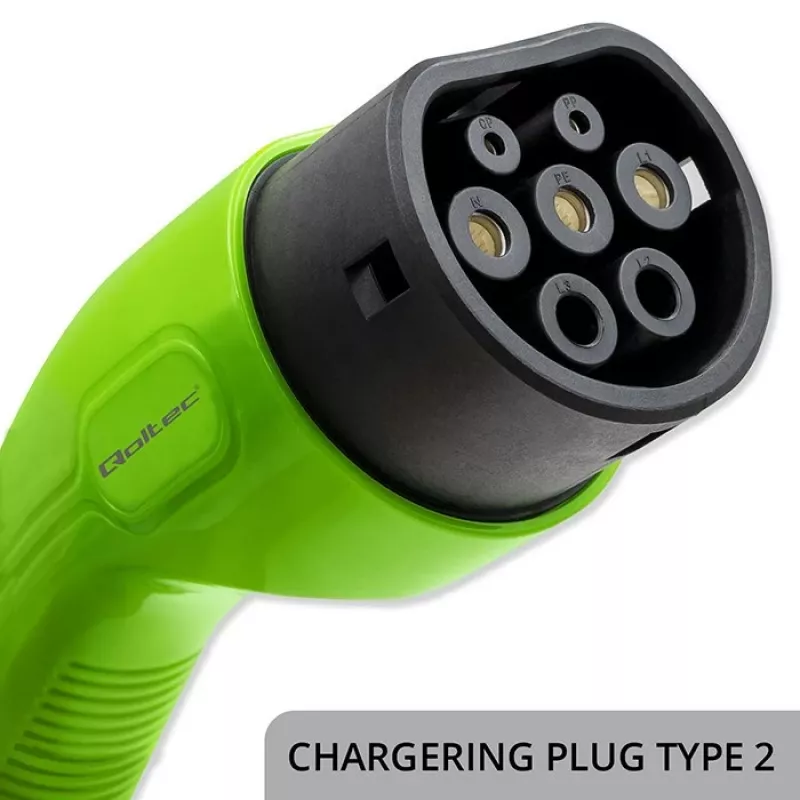

• Connector type: IEC62196-2 (Type 2)
• Charging power: 3.5 kW
• Rated current: 16 A
• Input/output voltage: 230 V
• Frequency: 50 Hz

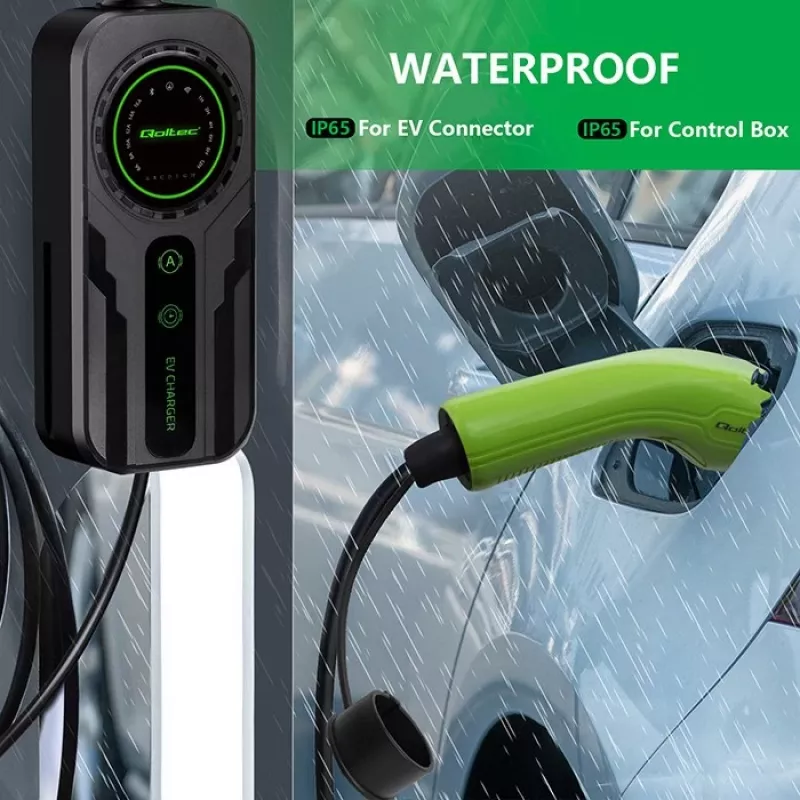

• Ingress protection: IP65
• Insulation resistance: >10 MΩ

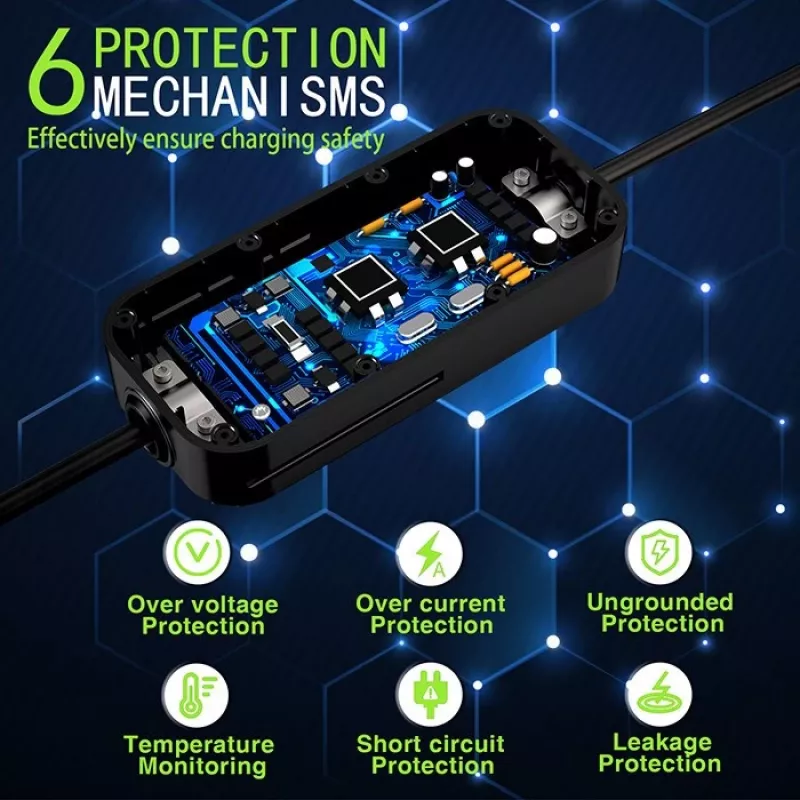

• Safety functions: undervoltage, short-circuit, overvoltage, overtemperature, overcurrent, ungrounded protection, leakage protection
• Cable length: 5 m

How to use

Connect the Type 2 plug to the vehicle inlet and the power plug to a compatible 230 V socket. Ensure the socket and supply can deliver a stable 16 A circuit. Verify the charger is dry and undamaged before use. After charging, disconnect the mains plug first and then remove the Type 2 connector from the vehicle. Store the charger in a dry, cool place away from heat sources.

Recommendations

Use on a dedicated 16 A circuit where possible. Do not use if the cable or housing is damaged, and avoid exposure to extreme temperatures. Follow local electrical regulations and, when in doubt, have installation or inspection performed by a qualified electrician.
