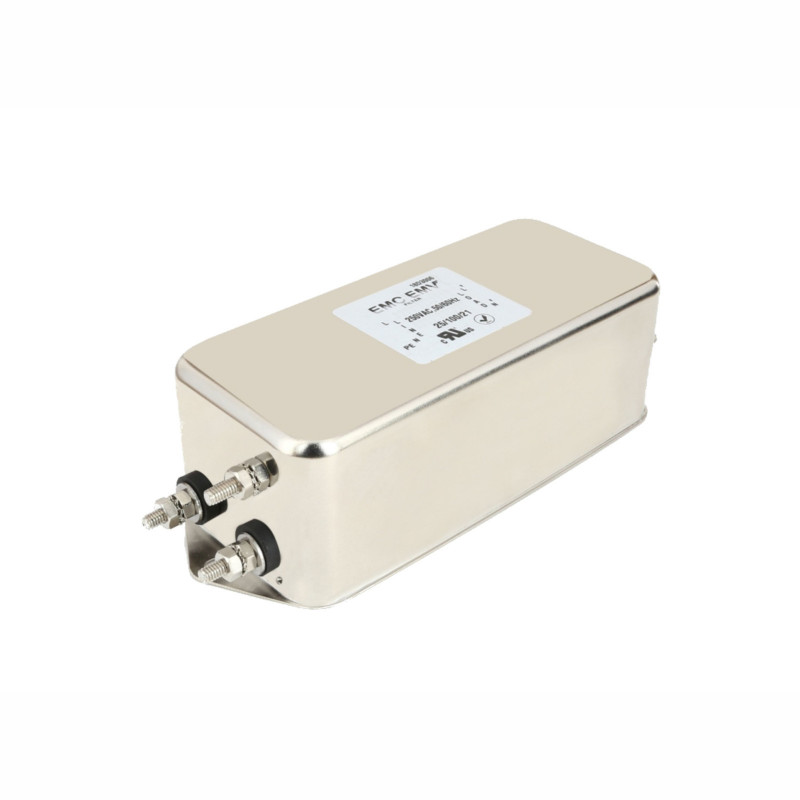

Akyga EN2060-30-S filtro de rede EMC monofásico 30 A, 120–250 V AC, 50/60 Hz, ligações roscadas M4

The Akyga EN2060-30-S is a single-phase EMI filter designed for high-current applications requiring protection against electromagnetic interference. It supports up to 30 A and features M4 screw connectors and a metal housing.

Key features

• Maximum working current: 30 A
• Leads: M4 connectors
• Number of poles: 2
• Metal housing
• Leakage current: 0.90 mA @120 VAC 60 Hz, 1.57 mA @250 VAC 50 Hz
• Operating temperature: -25°C to +100°C

Specifications

• Brand: Akyga
• MPN: EN2060-30-S
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 30 A
• Leads: M4 connectors
• Leakage current: 0.90 mA @120 VAC 60 Hz, 1.57 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 140 x 85 x 58 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
