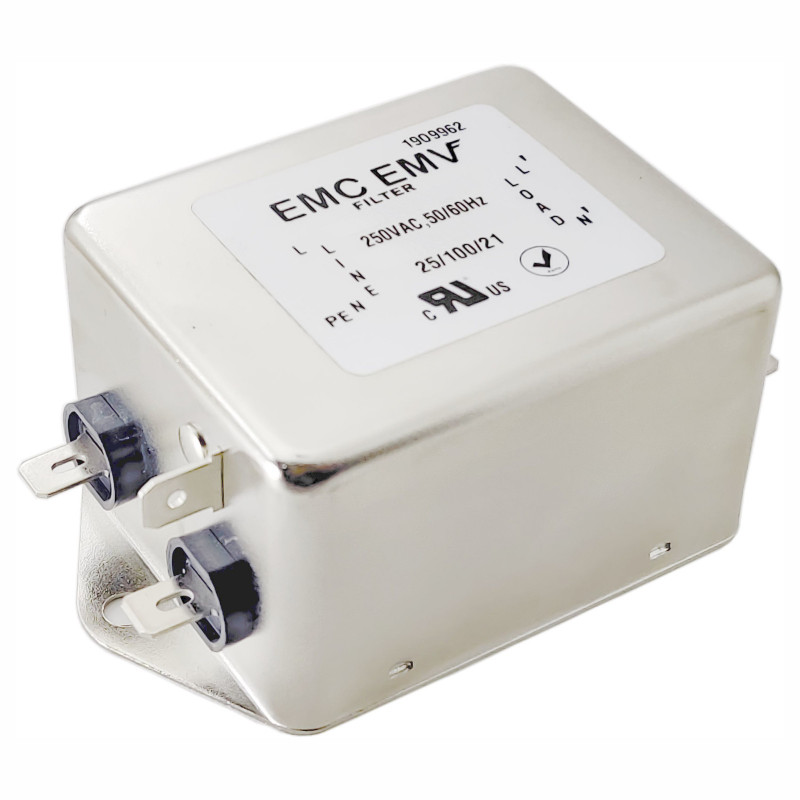

Akyga EN2070-16-F filtro de rede EMC monofásico 16 A, 120–250 V AC, 50/60 Hz, ligações de 6,3 mm

The Akyga EN2070-16-F is a single-phase EMI filter designed to suppress electromagnetic interference in equipment drawing up to 16 A. It is suitable for demanding industrial applications, power systems, audio/video installations, and automation, ensuring stable and safe operation under increased load conditions. The filter features 6.3 mm connectors for quick installation and a metal housing that protects against interference and external damage.

Key features

• Maximum working current: 16 A
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Leads: 6.3 mm connectors
• Material: Metal
• Operating temperature: -25°C to +100°C
• CE, RoHS, and REACH compliant

Specifications

• Brand: Akyga
• MPN: EN2070-16-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Product size (L x W x H): 121 x 85 x 57 mm
• EAN code: 5901720138835
