Akyga EN2080-1-F filtro de rede EMC monofásico 1 A, 120–250 V AC, 50/60 Hz, conectores de 6,3 mm

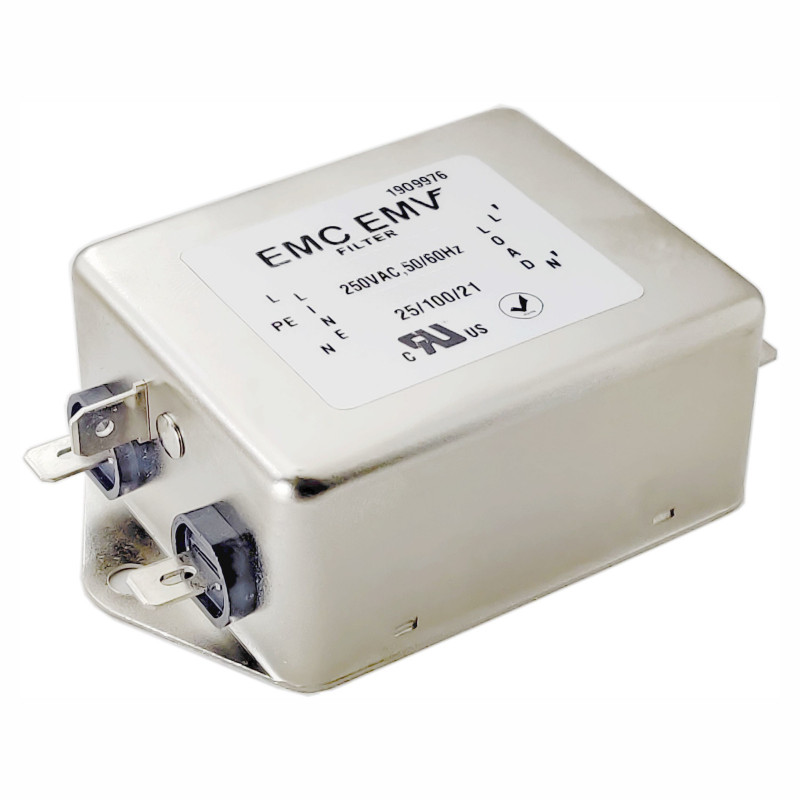

The Akyga EN2080-1-F is a single-phase EMI filter designed to protect sensitive electronic systems from electromagnetic interference. With a maximum operating current of 1 A, it is suitable for low-current applications such as medical devices, control systems, laboratory apparatus, and measurement equipment. The filter features 6.3 mm connectors for installation and a robust metal housing that shields against external interference.

Key features

• Maximum working current: 1 A
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Leads: 6.3 mm connectors
• Material: Metal
• Temperature range: -25°C to +100°C
• CE, RoHS, and REACH compatibility

Specifications

• Brand: Akyga
• MPN: EN2080-1-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Product size (L x W x H): 86 x 52 x 29 mm
• EAN code: 5901720138873
