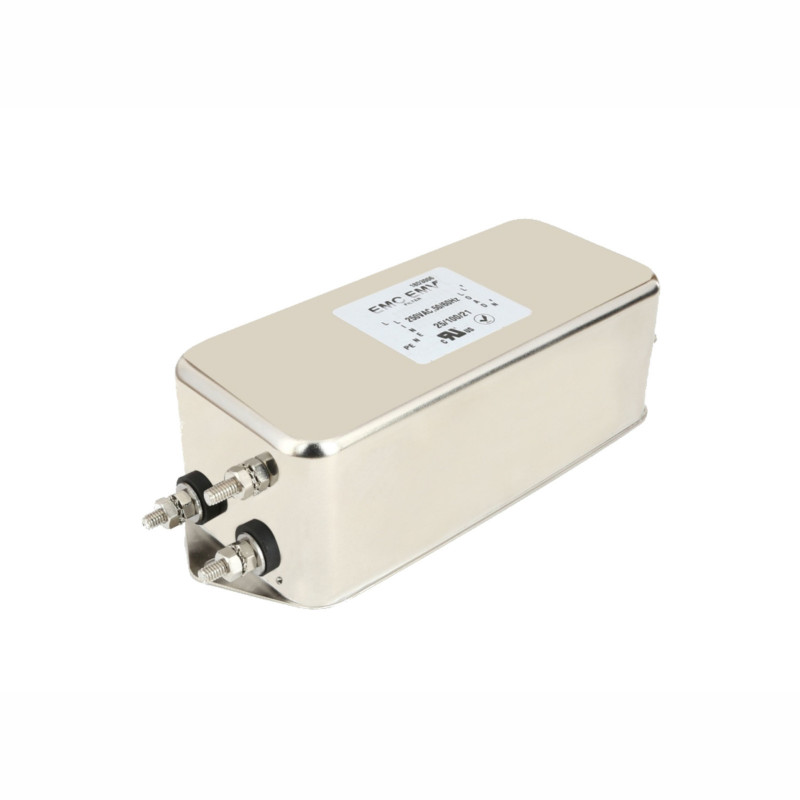

Akyga EN2090-30-S filtro de rede EMC monofásico 30 A, 120–250 V AC, 50/60 Hz, conectores de parafuso M4

The Akyga EN2090-30-S is a single-phase EMI filter designed for power systems requiring high immunity to electromagnetic interference at loads up to 30 A. It is suitable for industrial applications, server rooms, and extended power supply systems. The filter features M4 screw connectors and a robust metal housing.

Key features

• Maximum working current: 30 A
• M4 screw connectors
• Metal housing
• Number of poles: 2
• Leakage current: 1.00 mA @120 VAC 60 Hz, 1.73 mA @250 VAC 50 Hz
• Operating temperature: -25°C to +100°C

Specifications

• Brand: Akyga
• MPN: EN2090-30-S
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 30 A
• Leads: M4 connectors
• Leakage current: 1.00 mA @120 VAC 60 Hz, 1.73 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 124 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720139047
