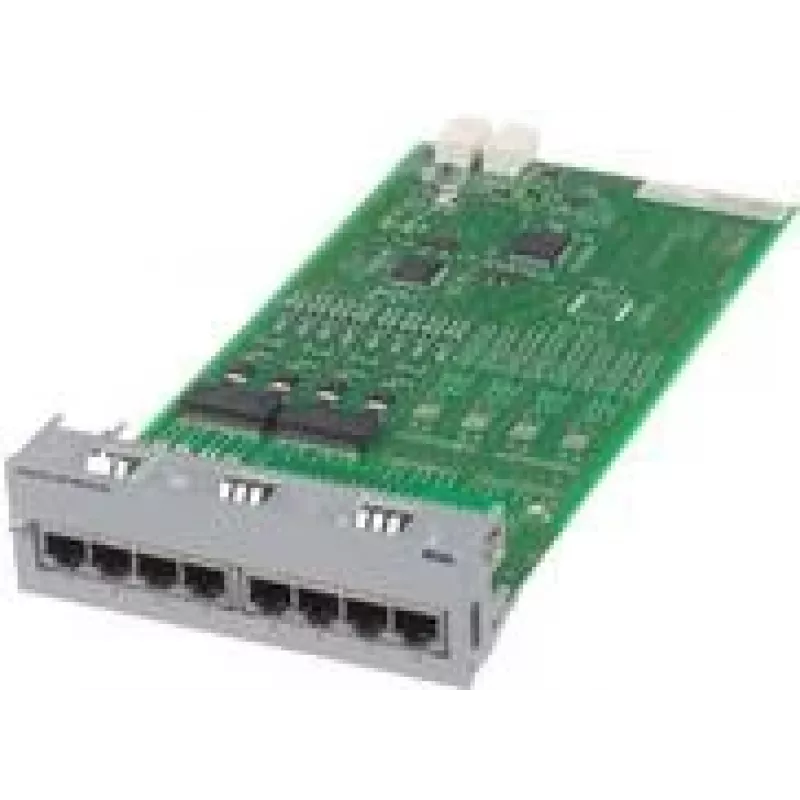

ALCATEL BTS Reflexes módulo de interface 8 interfaces UA (modelo 3EH77005AC)

The ALCATEL BTS Reflexes Interface Module 8 UA Interfaces is an expansion and replacement card designed for use in compatible Alcatel-Lucent BTS Reflexes base transceiver systems. It provides eight UA interfaces to support voice and data transport between the BTS Reflexes system and connected radio or network equipment. Intended for field maintenance, site upgrades and capacity scaling, the module integrates into existing cabinets or racks and helps restore or increase interface availability without major system redesign.

Advantages

This interface module delivers a compact, factory-compatible solution for adding or replacing UA ports in BTS Reflexes equipment. It supports straightforward integration with existing backplanes and reduces the need for extensive rewiring. The module is engineered to meet telecom operational requirements for reliable transport and continuous service, and it enables technicians to maintain network capacity and continuity with minimal downtime.

Suitable for

Key specifications

How to use

Install the module into a compatible BTS Reflexes slot following the site-specific service manual and safety procedures. Power down the affected shelf or follow hot-swap instructions if the system and module support online replacement. Secure the module mechanically and connect required UA cabling to the designated ports. After installation, verify system recognition, run interface diagnostics and confirm traffic routing and alarms are normal before returning the site to full service.

Recommendations

Use genuine, tested modules and follow the vendor’s maintenance procedures to ensure interoperability. Before installation, confirm platform firmware and configuration are compatible with the additional UA interfaces. Perform post-installation checks, maintain spare modules for rapid replacement, and keep electrical and environmental conditions within telecom site specifications.
