Alimentador de fita xTool P2/P2S P5010199 — velocidade ajustável, construção duradoura

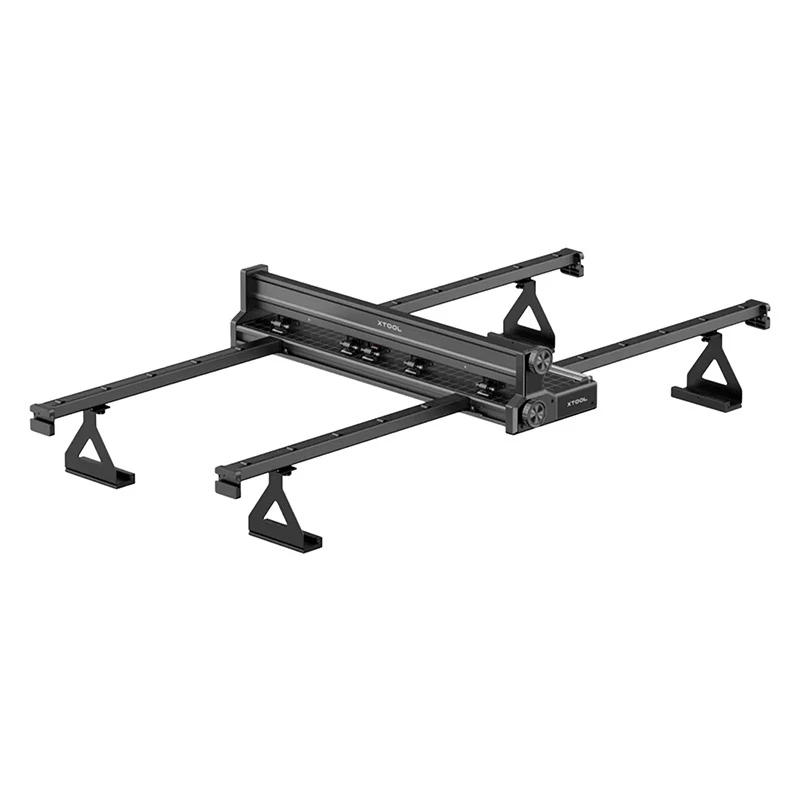

Belt feeder for xTool P2/P2S expands the machine's working area up to 3000 mm × 500 mm, enabling engraving of long materials and processing multiple parts in a single run. It is compatible with xTool P2 and P2S and is designed to improve workflow efficiency and accuracy by automating material feed and reducing manual handling.

Advantages

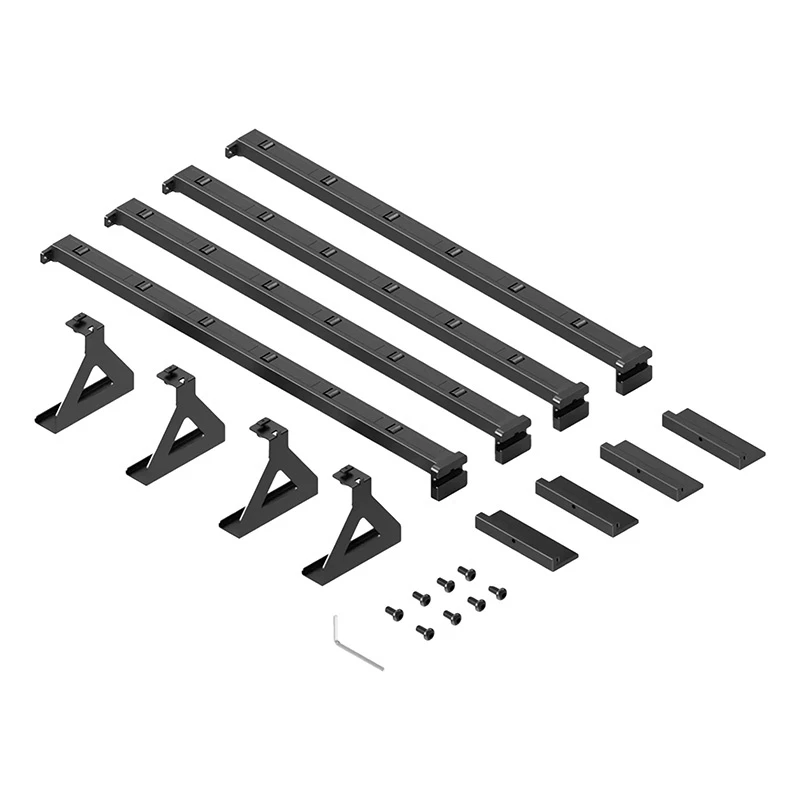

The feeder performs automatic material feeding and plans the engraving path, which reduces positioning errors and saves operator time. Its upper and lower non-slip pressure rollers secure both thin and thicker plates for stable movement. The design includes a snap-in rail mounting system, color-coded pressure markings for quick pressure selection, a bottom adjustment knob for precise material positioning, and an alignment grid for even placement relative to the feed direction. The feeder also broadens the range of processable materials to include plywood, acrylic, MDF, cork, felt and EVA foam.

Key specifications

• Manufacturer: XTool
• Model: P5010199
• Compatibility: xTool P2 / P2S
• Dimensions: 687 × 200 × 135 mm
• Weight: 4.55 kg
• Maximum speed: 160 mm/s
• Maximum machining area: 3000 mm × 500 mm
• Maximum material width: 624 mm
• Minimum material width: 65 mm
• Maximum material thickness: 14 mm
• Maximum length of material: 1 m (including 30 cm hanging)
• Processing length: 0.85 m (including 30 cm hanging)

How to use

Install the belt feeder on the xTool P2 or P2S using the snap-in rail system and secure it according to the manual. Place the material on the belt, use the alignment grid to position it parallel to the feed direction, and select the appropriate pressure setting using the color-coded markings. Adjust the bottom knob to fine-tune the material position. Start the engraving job from the xTool software; the feeder will automatically feed the material and execute the planned path. For best results, verify that material dimensions are within the specified minimum and maximum width and thickness.

Recommendations

Use materials listed in the specifications and ensure the material edges are clean and free of debris before feeding. Regularly check and clean the pressure rollers and belt to maintain stable movement. For thin or flexible materials, confirm pressure settings on a test piece before running a full job.
