Alimentador de papel Lexmark 50G0804

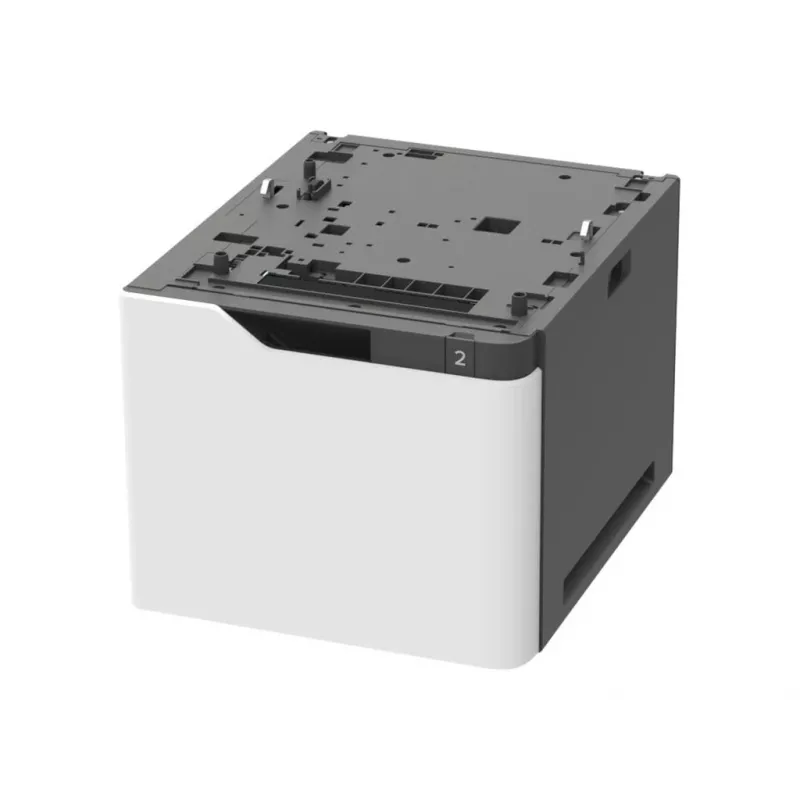

The Lexmark 50G0804 paper tray is a high-capacity optional tray that holds up to 2,100 sheets and is intended to be installed below any other trays. It supports common paper sizes including A4, A5 (long edge first), Folio, Letter, Legal and Oficio and accepts paper weights from 16 to 36 lb (60 to 135 gsm). When the configuration includes the 2,100-Sheet Tray, an optional caster base is required. The tray provides paper, tray-present, tray-low and tray-empty sensing for reliable operation. Note that the Spacer cannot be used with the 2100-Sheet Tray.

Advantages

The Lexmark 50G0804 tray increases paper capacity to reduce refills and fits seamlessly under existing trays. It offers multi-size support and weight compatibility for standard office papers and supplies paper status sensing to help monitor levels and tray condition. Its dimensions (421 mm width, 510 mm depth, 350 mm height) allow integration into compatible Lexmark printer setups.

Suitable for

• High-volume printing environments
• Offices requiring longer unattended print runs
• Workgroups using A4, A5, Folio, Letter, Legal or Oficio paper

Key specifications

• Model: Lexmark 50G0804
• Capacity: up to 2,100 sheets
• Supported paper sizes: A4, A5 (long edge first), Folio, Letter, Legal, Oficio
• Supported paper weight: 16–36 lb (60–135 gsm)
• Tray sensing: paper, tray-present, tray-low, tray-empty
• Dimensions (W×D×H): 421 × 510 × 350 mm
• Package dimensions: 538 × 624 × 479 mm
• MPN: 50G0804
• EAN: 0734646612524

How to use

Install the 50G0804 tray beneath any other installed trays according to the printer service manual. Load paper within the specified sizes and weight range, ensuring A5 is loaded long-edge first. Verify that the machine recognizes the tray and its sensing functions. If your configuration includes the 2,100-Sheet Tray, install the optional caster base as required by the printer documentation. Do not attempt to use the Spacer with this tray.

Recommendations

Use standard office papers within the specified weight range and verify tray seating after installation. For stable operation when fully loaded or when placed as the lowest tray, fit the optional caster base if your printer configuration requires it. Do not combine with the Spacer accessory.
