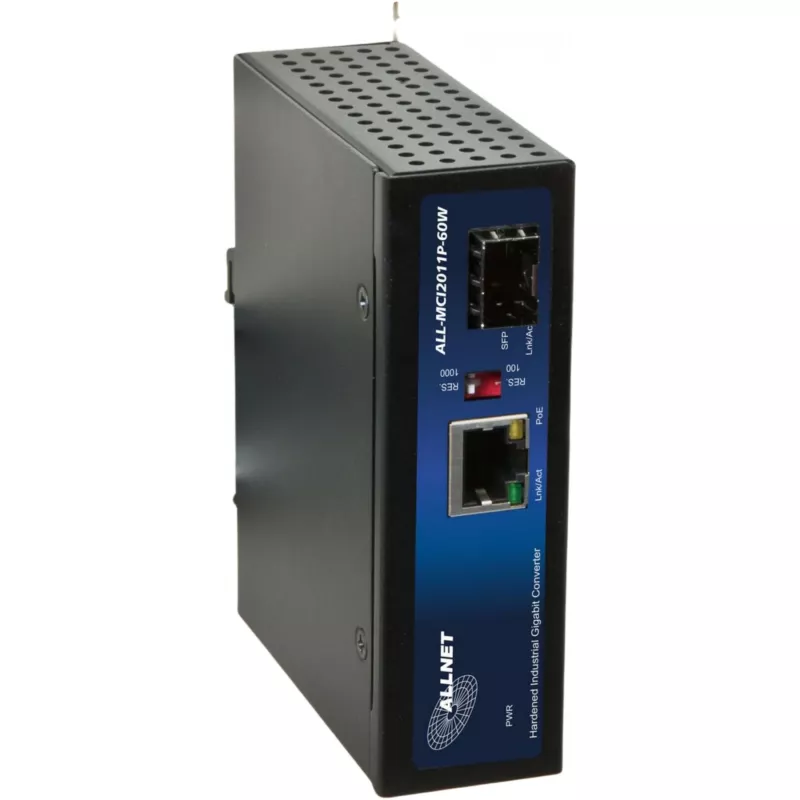

ALLNET ALL-MCI2011P-60W Conversor de Media PoE Industrial, 1x 10/100/1000Base-T RJ45 para 1x 1000Base-X SFP, 60W PoE, Calha DIN, Preto

The ALLNET ALL-MCI2011P-60W is a robust industrial media converter designed to extend network reach by converting copper to fiber optics. It features one 10/100/1000Base-T RJ45 port and one 1000Base-X SFP slot, supporting both multi-mode and single-mode fiber. With IEEE 802.3af/at/bt PoE compliance, it delivers up to 60W power over Ethernet to connected devices. Housed in an IP30-rated metal enclosure, it operates in extreme temperatures from -40°C to 75°C, making it ideal for harsh environments.

Advantages

This converter ensures reliable data transmission over long distances (up to 550m with multi-mode fiber) and supports jumbo frames up to 9K bytes. Its DIN rail and wall mountable design offers flexible installation. The device provides PoE output up to 60W, powering high-consumption devices like PTZ cameras and wireless access points.

Suitable for

• Industrial automation networks
• Surveillance systems requiring long-distance PoE
• Outdoor and harsh environment deployments
• Extending network reach in warehouses, factories, and campuses

Key specifications

• Product Type: Industrial Media Converter with PoE
• Ethernet Port: 1x 10/100/1000Base-T RJ45
• Fiber Port: 1x 1000Base-X SFP Slot (SFP module not included)
• PoE Standard: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Max PoE Power: 60W
• Data Rates: 10/100/1000 Mbps (copper), 1000 Mbps (fiber)
• Duplex: Full/Half
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3bt
• Input Voltage: 48-57V DC
• Mounting: DIN Rail, Wall Mount
• Operating Temperature: -40°C to 75°C
• Housing: IP30 Metal Enclosure
• LED Indicators: Power, Link/Act, PoE Status
• Jumbo Frame Support: Up to 9K bytes
• Power Consumption (excl. PoE): <5W

Recommendations

For optimal performance, use a compatible SFP module (e.g., ALLNET SFP series) and a 48-57V DC power supply (sold separately). This converter is ideal for upgrading existing copper networks to fiber while providing PoE power to endpoints.
