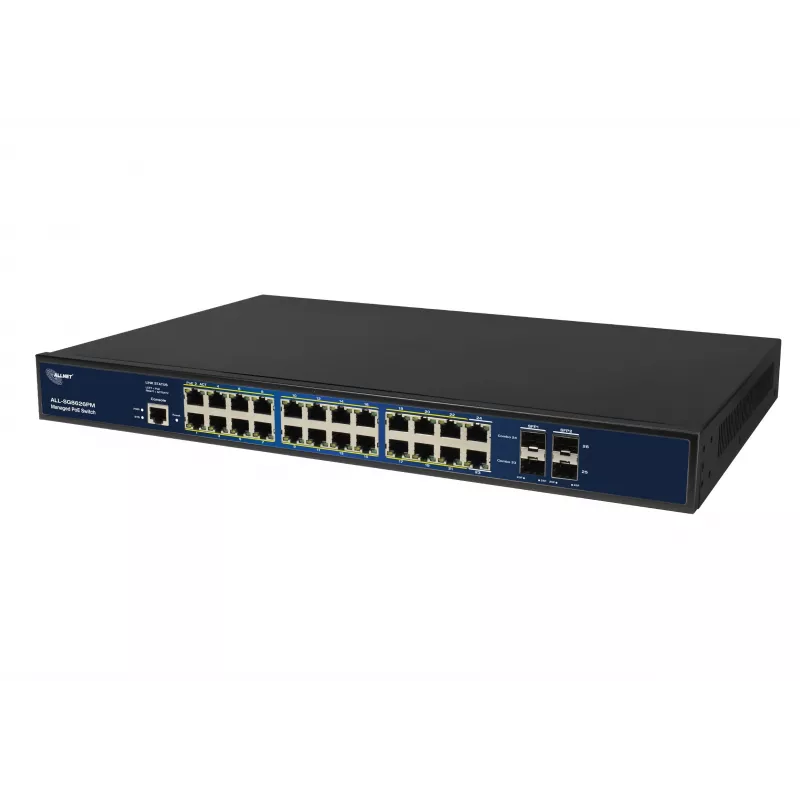

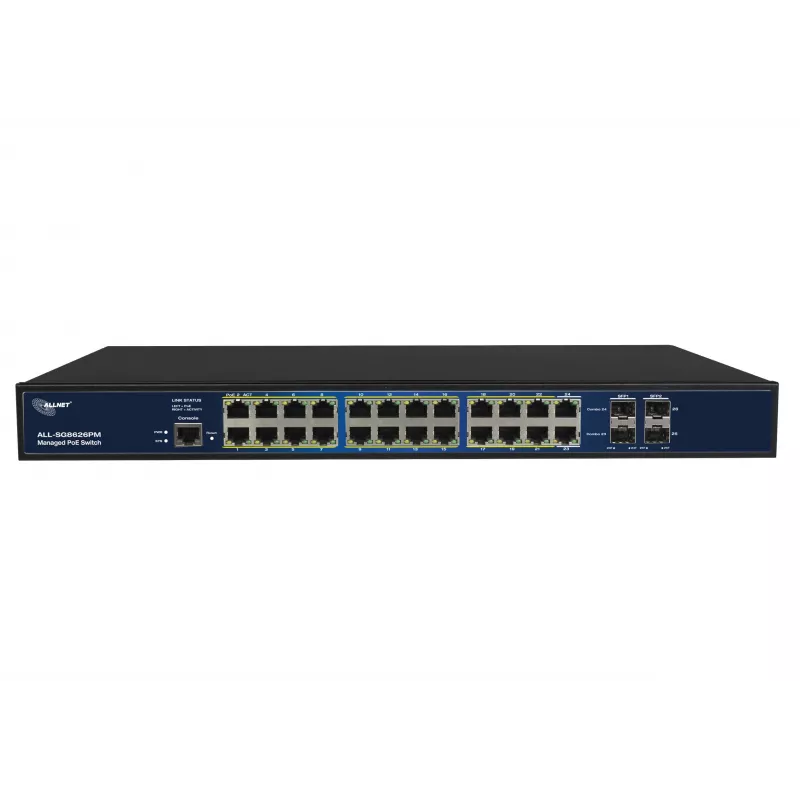

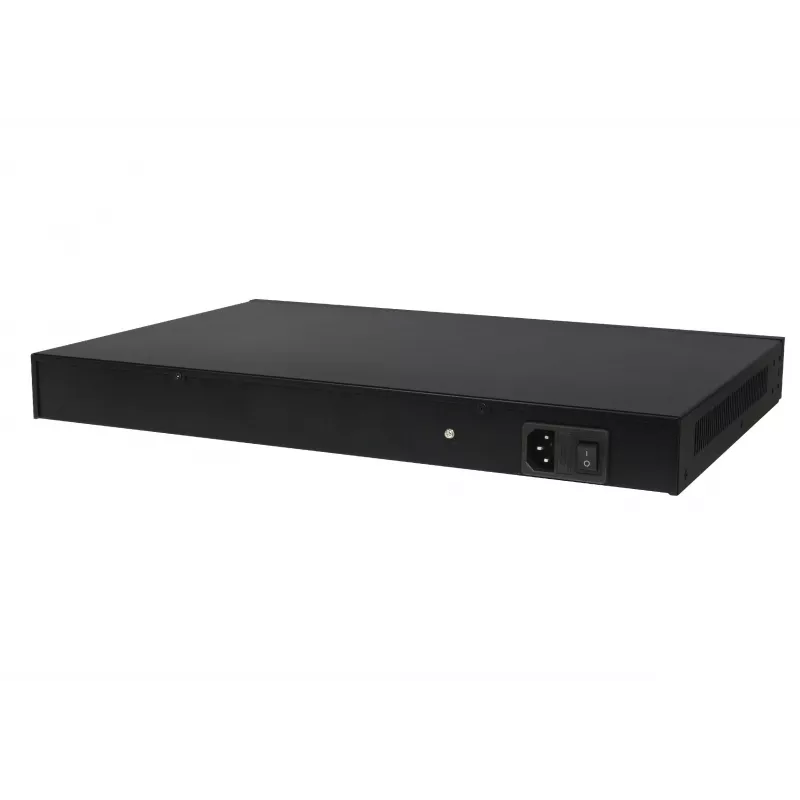

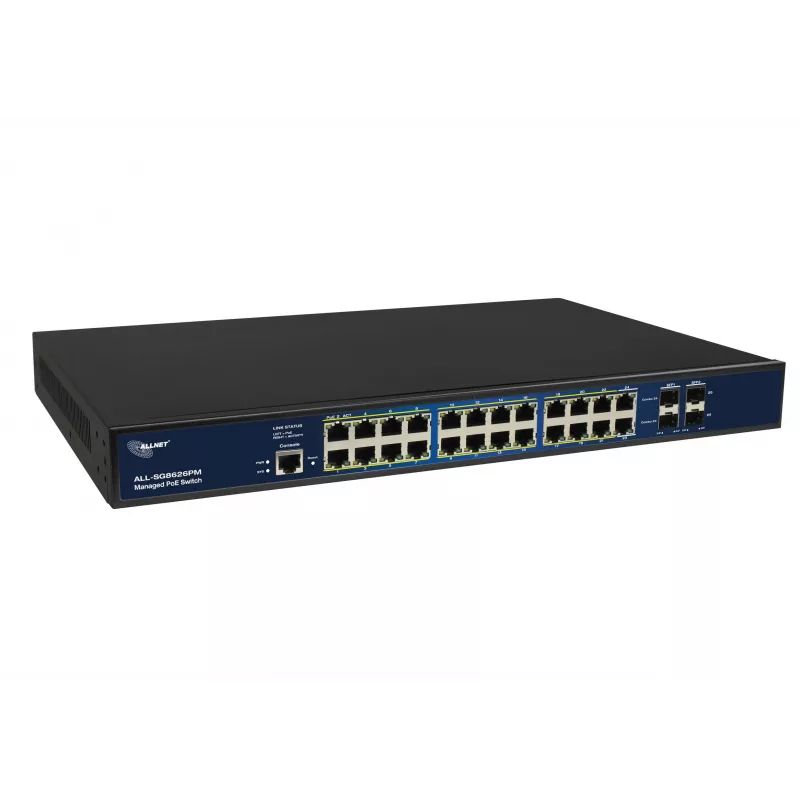

ALLNET ALL-SG8626PMJ switch Gigabit Layer 2+ Full Managed com 24 portas PoE+ 370W

The ALLNET ALL-SG8626PMJ is a high-performance Layer 2+ full managed switch designed for demanding business networks. With 24 Gigabit Ethernet ports and 2 SFP uplinks, it provides robust connectivity and a PoE budget of 370W to power devices such as IP cameras, VoIP phones, and wireless access points. Ideal for small to medium-sized enterprises, this switch offers advanced management features including VLAN, QoS, and security protocols.

Advantages

Full Layer 2+ management with web GUI and CLI for flexible configuration. 22 PoE+ ports deliver up to 370W total power, simplifying deployment of powered devices. Rack-mountable 1U design saves space in server rooms. Supports jumbo frames up to 9KB for improved data throughput.

Suitable for

• Small to medium business networks requiring managed switching
• IP surveillance systems with multiple PoE cameras
• VoIP phone deployments needing PoE+ power
• Wireless access point installations

Key specifications

• 26 ports: 24x 10/100/1000Base-T Gigabit Ethernet + 2x Gigabit SFP
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• PoE budget: 370W
• Switching capacity: 52 Gbps
• Forwarding rate: 38.68 Mpps
• MAC address table: 8K entries
• VLAN support: 802.1Q tag-based and port-based
• QoS: 802.1p CoS, DSCP
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
• Security: ACL, Port Security, 802.1X, DHCP Snooping
• Mounting: 1U rack-mountable
• Power supply: Internal AC 100-240V

Recommendations

For optimal performance, use quality CAT5e or CAT6 cabling. Ensure adequate ventilation for the internal fan. The switch supports up to 22 PoE+ devices simultaneously within the 370W budget.
