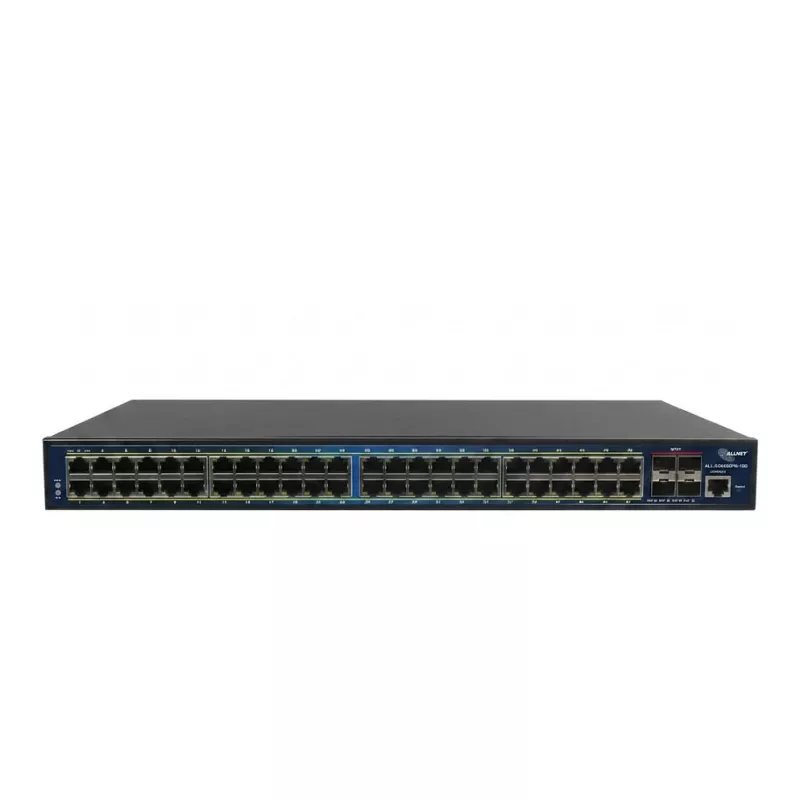

ALLNET ALL-SG8652PMJ-10G-850W switch Full Managed Layer 2+, 52 portas (48x GbE PoE+, 4x 10G SFP+), orçamento PoE 850W, montagem em rack 19 polegadas, API JSON

The ALLNET ALL-SG8652PMJ-10G-850W is a full managed Layer 2+ switch designed for high-performance networks requiring Power over Ethernet. With 48 Gigabit Ethernet ports supporting PoE+ (IEEE 802.3af/at) and a total PoE budget of 850W, it is ideal for powering IP cameras, wireless access points, and VoIP phones. Four 10 Gigabit SFP+ uplink ports provide high-speed connectivity to backbone networks. The switch offers comprehensive management features including web GUI, CLI, SNMP, and JSON API, making it suitable for enterprise and data center environments.

Advantages

High PoE budget of 850W supports demanding devices like PTZ cameras and high-power access points. Full Layer 2+ management with advanced features such as VLAN, QoS, and security protocols ensures network optimization and protection. The 10GbE uplinks eliminate bottlenecks, while the 19-inch rackmount form factor fits standard server racks.

Suitable for

• Enterprise networks requiring centralized PoE device management
• Surveillance systems with multiple PoE cameras
• Wireless LAN deployments with PoE access points
• Data center top-of-rack switching

Key specifications

• Management Type: Full Managed
• Layer Support: Layer 2+
• Total Ports: 52
• Gigabit Ethernet Ports: 48x 10/100/1000Base-T (PoE+)
• Uplink Ports: 4x SFP+ (10 Gigabit Ethernet)
• PoE Power Budget: 850 W
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.94 Mpps
• Form Factor: 19-inch Rackmount
• Management Interfaces: Web GUI, CLI, SNMP, JSON API
• VLAN Support: Yes (802.1Q, Port-based, Protocol-based)
• QoS Support: Yes (DSCP, 802.1p)
• Security Features: ACLs, Port Security, 802.1X
• Jumbo Frame Support: Yes (up to 9KB)
• Power Supply: Internal
• Cooling: Fan-cooled
• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3af, 802.3at

Recommendations

For optimal performance, use Category 6a or higher cabling for 10GbE connections. Ensure adequate ventilation in the rack to maintain operating temperature. The switch supports JSON API for easy integration with network management systems.
