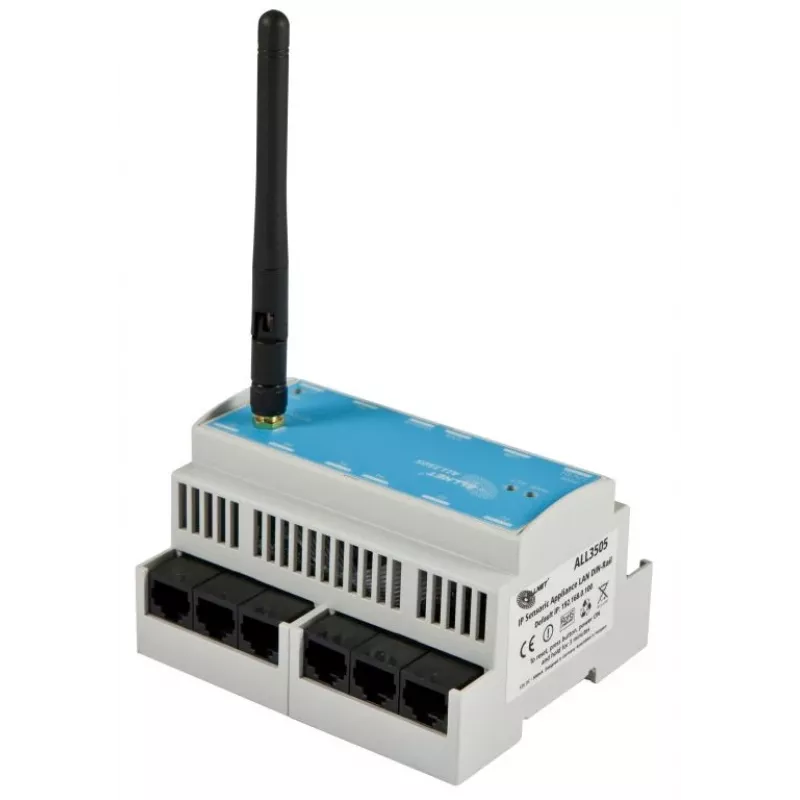

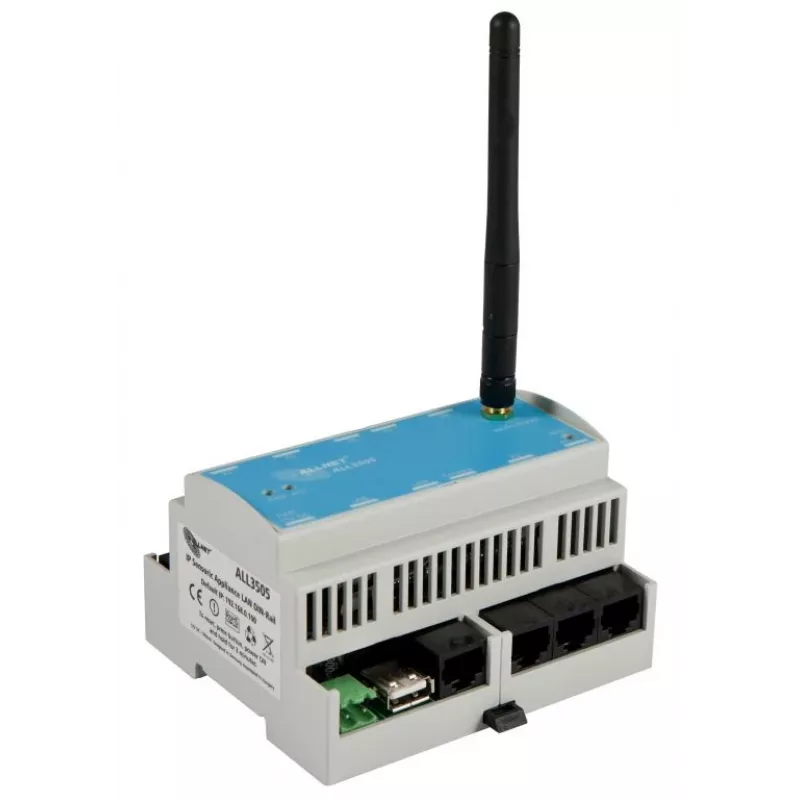

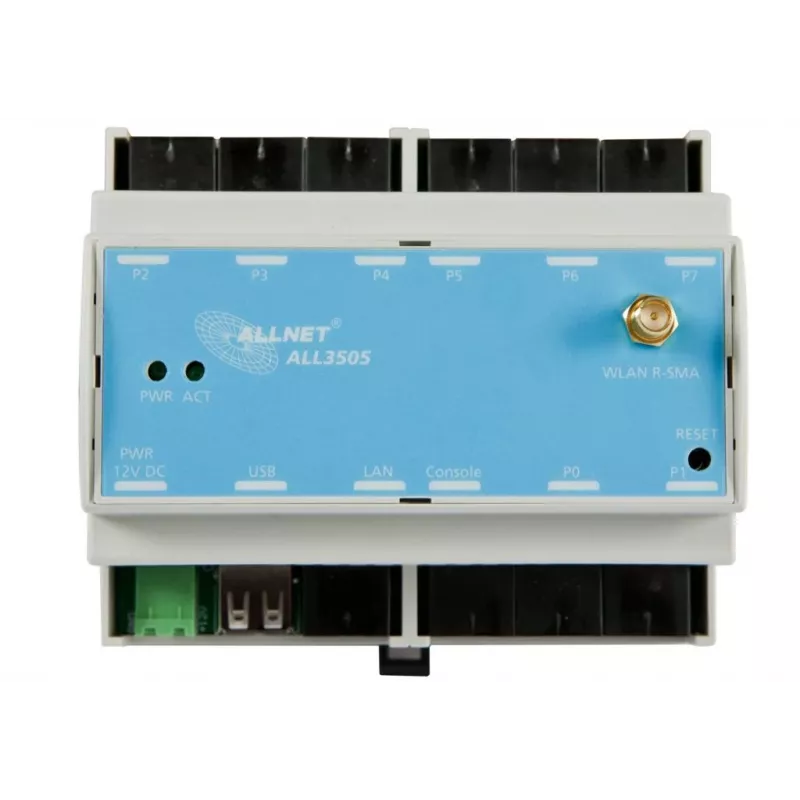

ALLNET ALL3505v2 controlador IP de automação de edifícios com 8 portas de sensores, montagem em calha DIN

8 configurable sensor ports and 2 relay outputs make the ALL3505v2 a versatile IP building automation controller for DIN rail mounting.

Overview

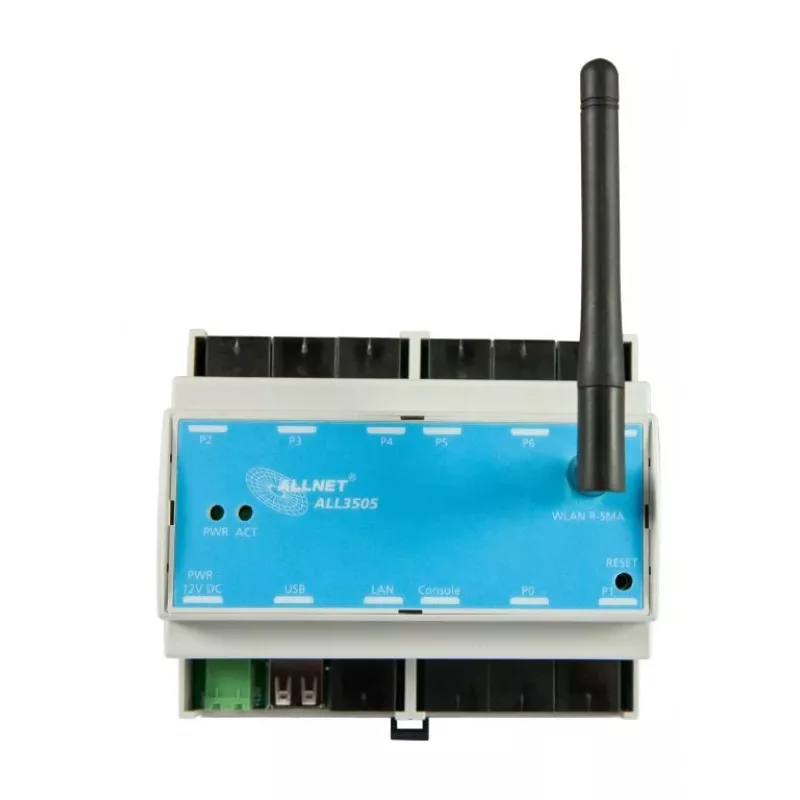

The ALLNET ALL3505v2 is an IP-based MSR central unit for building automation. It provides 8 sensor ports configurable as 1-Wire, digital input, or analog input 0-10V, plus 2 potential-free relay outputs and 2 digital inputs. The unit mounts on a DIN rail and connects via 10/100Base-TX Ethernet.

What stands out

• 8 configurable sensor ports for flexible integration
• 2 relay outputs for switching external devices
• Embedded Linux with web-based configuration and SSH
• Supports HTTP, HTTPS, SNMP, Modbus TCP, MQTT, REST API
• Integrated data logger and event management
• Robust metal housing for industrial environments

Technical details

• Sensor ports: 8x (1-Wire, digital input, analog input 0-10V)
• Relay outputs: 2x potential-free (max. 24V AC/DC, 1A)
• Digital inputs: 2x potential-free
• Network: 1x 10/100Base-TX Ethernet (RJ45)
• Power supply: 12V DC (adapter not included)
• Power consumption: max. 3W
• Operating temperature: -20°C to +70°C
• Housing: metal
• LED indicators: power, status, network link/activity

Our verdict

A compact and flexible controller for IP-based building automation, with extensive protocol support and DIN rail mounting.
