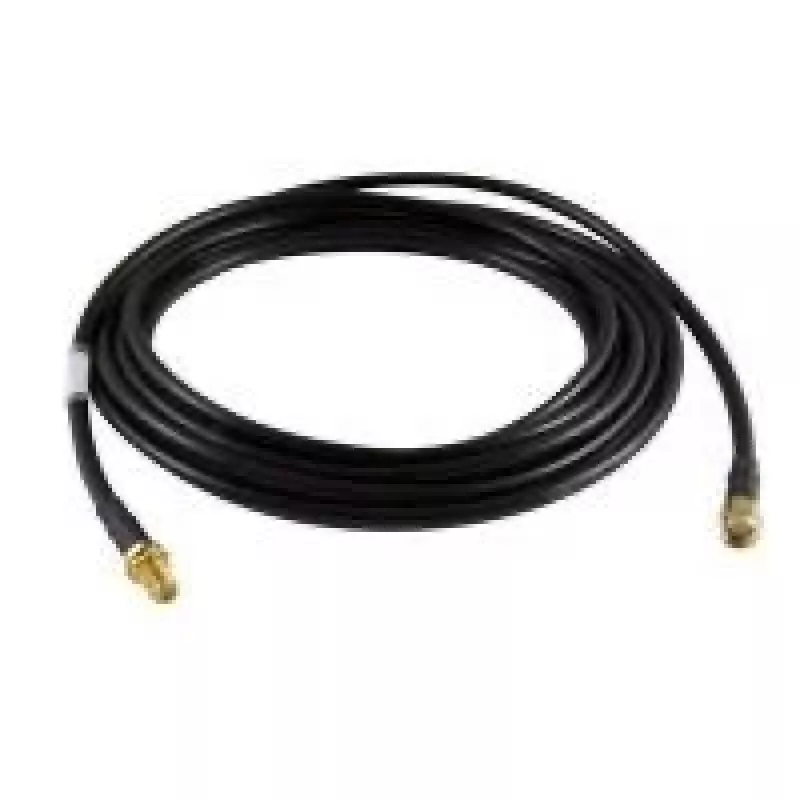

ALLNET ANT-CAB-RSMA-RSMA-700 cabo coaxial para antena, ficha R-SMA para conector fêmea R-SMA, LMR-195, 7 m, preto

Connect a Wi-Fi router or access point to an external antenna with this 7 m coaxial cable. The R-SMA male connector on one end and R-SMA female on the other fit devices with Reverse SMA ports, commonly found on WLAN equipment and RF communication hardware. The LMR-195 cable has a double shield of foil and braid to reduce signal loss, and the black PE jacket protects the cable indoors and outdoors. Operating temperature range is -40 °C to 85 °C, so the cable works in unheated attics, outdoor enclosures, or machine rooms.

Key specifications

• Cable length: 7 m
• Connector 1: R-SMA male
• Connector 2: R-SMA female
• Impedance: 50 Ω
• Cable type: LMR-195
• Colour: Black
• Operating temperature: -40 °C to 85 °C

Why choose it

The double shielding keeps signal integrity high over the 7 m run, and the solid bare copper inner conductor provides stable performance for Wi-Fi and RF links. The R-SMA connectors are the standard for many wireless devices, so no adapters are needed for typical installations.

Ideal use cases

• Connecting a Wi-Fi router to a remote antenna
• Extending an RF signal between two devices with R-SMA ports
• Outdoor antenna installations where temperature extremes occur

Good to know

The cable diameter is 4.95 mm, making it flexible enough for routing through cable ducts or along walls. The PE jacket resists moisture and UV, suitable for long-term outdoor use.
