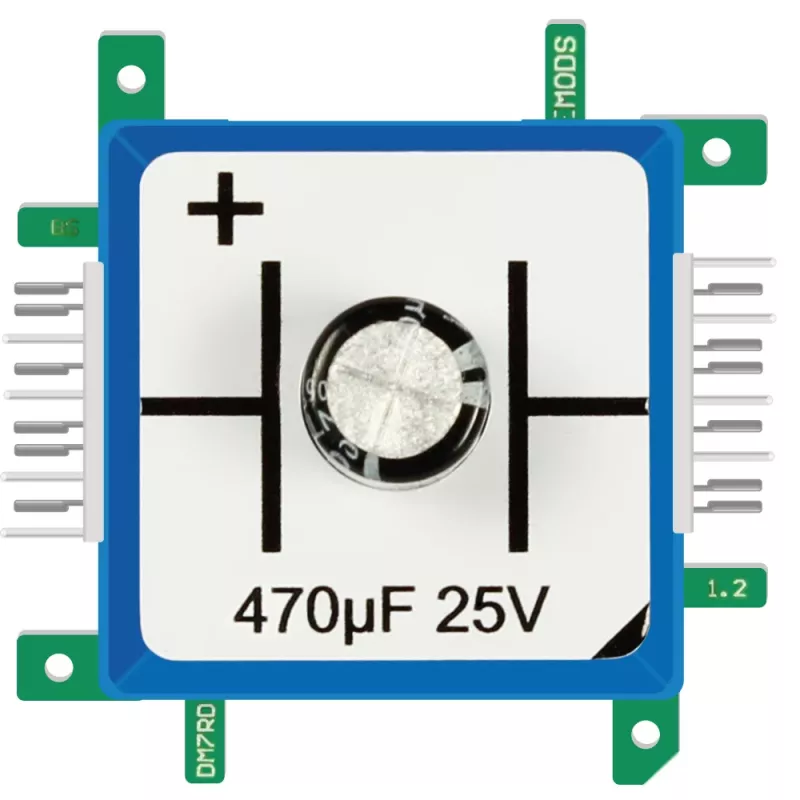

ALLNET Brick'R'knowledge Condensador 470µF 25V

The ALLNET Brick'R'knowledge Capacitor 470µF 25V is a passive component module designed for educational, prototyping, and DIY electronics projects. This polarized electrolytic capacitor module provides energy storage, filtering, and decoupling functions, making it an essential building block for circuit experimentation within the Brick'R'knowledge system.

Advantages

Pre-mounted on a compact 20x20 mm FR4 PCB module with two 4-pin connectors for easy chaining, this capacitor simplifies prototyping without soldering. Its ±20% capacitance tolerance and wide operating temperature range (-40°C to +85°C) ensure reliable performance in various environments. RoHS compliant and compatible with all Brick'R'knowledge modules.

Suitable for

• Educational electronics labs and STEM courses
• Rapid prototyping of power supply circuits
• Signal filtering and decoupling in digital systems
• DIY electronics projects and hobbyist experiments

Key specifications

• Capacitance: 470 µF
• Voltage Rating: 25 V DC
• Capacitor Technology: Electrolytic
• Polarity: Polarized
• Capacitance Tolerance: ±20%
• Module Dimensions (Base): 20 x 20 mm
• Operating Temperature Range: -40°C to +85°C
• Mounting: Pre-mounted on PCB module
• Connector Type: Brick'R'knowledge 4-pin
• Number of Connectors: 2 (for chaining)
• PCB Material: FR4

Recommendations

Combine with other Brick'R'knowledge modules to build complex circuits. Ideal for learning about capacitor behavior in RC circuits, power supply smoothing, and signal coupling.
