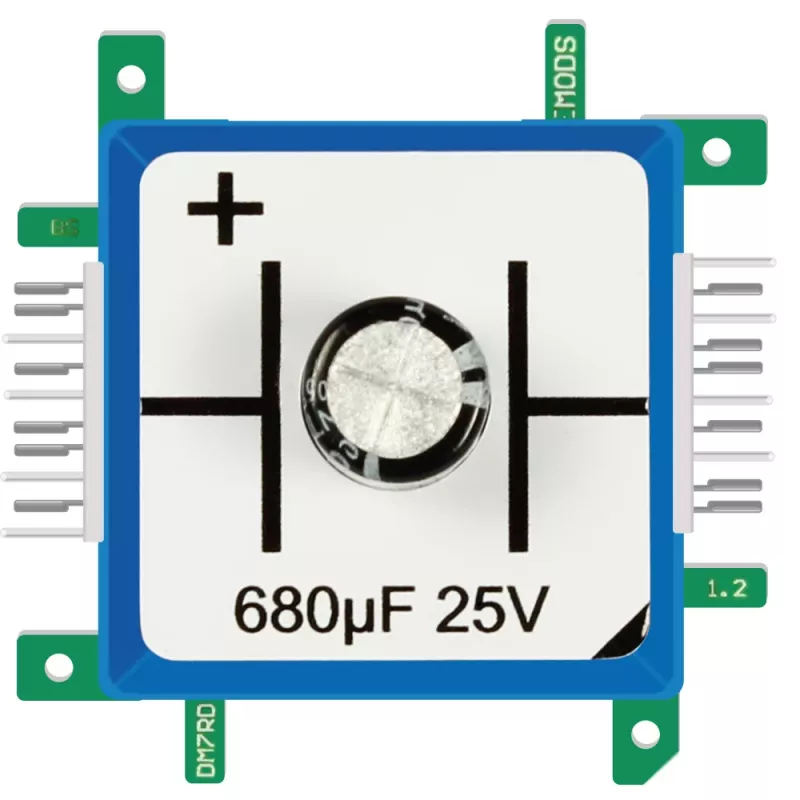

ALLNET Brick'R'knowledge Condensador 680µF 25V

The ALLNET Brick'R'knowledge Capacitor 680µF 25V is a modular electrolytic capacitor module designed for the Brick'R'knowledge system. It provides energy storage, filtering, and smoothing in prototyping, educational, and DIY electronics projects. With a capacitance of 680 µF and a voltage rating of 25 V DC, this module is ideal for power supply decoupling and signal conditioning.

Advantages

Easy integration via magnetic connectors, no soldering required. Compact 20x20 mm base footprint. Reliable electrolytic technology with ±20% tolerance. Wide operating temperature range from -40°C to +85°C.

Suitable for

• Prototyping and breadboard alternatives
• Educational electronics labs
• DIY electronics projects
• Power supply filtering and smoothing

Key specifications

• Capacitance: 680 µF
• Voltage Rating: 25 V DC
• Capacitor Type: Electrolytic
• Tolerance: ±20%
• Operating Temperature: -40°C to +85°C
• Module Dimensions: 20 x 20 mm (base), height approx. 12 mm
• Connectors: 4 magnetic connectors
• RoHS Compliant

Recommendations

Use with other Brick'R'knowledge modules to build complex circuits quickly. Ideal for educational environments where reusable components are valued.
