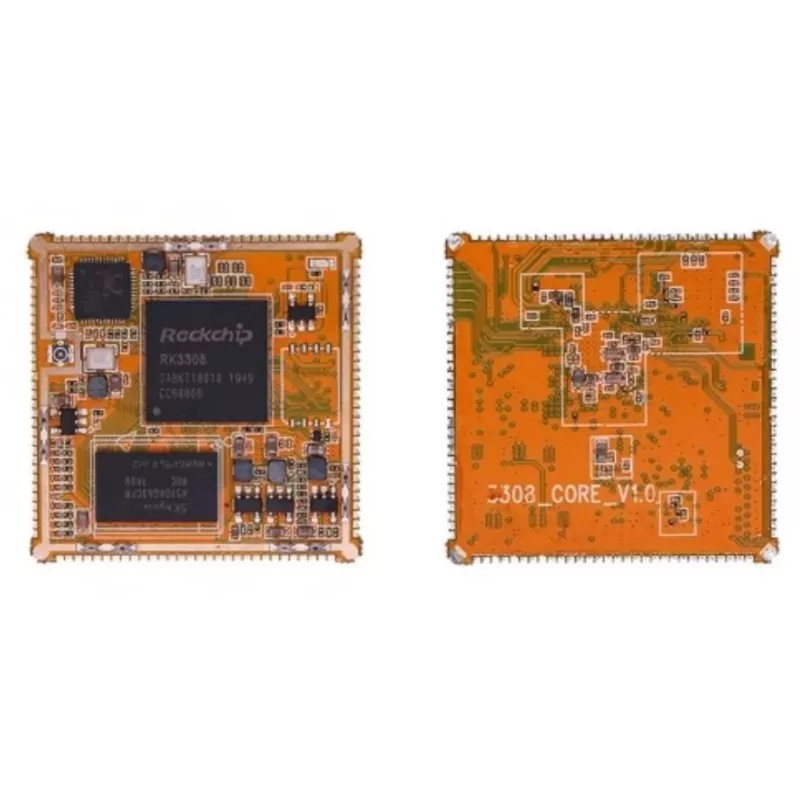

ALLNET Rock Pi S Core SOM RockSD8WSOM - Rockchip RK3308 Quad-Core Cortex-A35, 512MB RAM, 8GB eMMC, Wi-Fi, Bluetooth, 260-Pin SODIMM

Embedded developers building compact IoT gateways, smart speakers, or industrial controllers can deploy the ALLNET Rock Pi S Core SOM as a ready-to-integrate compute module. The 260-pin SODIMM form factor plugs directly into a custom carrier board, reducing design time for edge devices that need reliable Linux processing in a small footprint.

Key specifications

• System on Chip: Rockchip RK3308
• CPU: Quad-core ARM Cortex-A35
• RAM: 512MB DDR3L
• Onboard Storage: 8GB eMMC
• Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 4.0
• Connector: 260-pin SODIMM
• Ethernet: 10/100M Ethernet PHY
• USB: 1x USB 2.0 Host, 1x USB 2.0 OTG
• Audio Interfaces: I2S, PDM
• Other Interfaces: SPI, I2C, UART, GPIO, PWM
• Power Input: 5V DC
• Operating System Support: Linux (Debian, Buildroot)

Why choose it

The RK3308's quad-core Cortex-A35 delivers efficient performance for always-on voice and audio applications, while the integrated Wi-Fi and Bluetooth simplify wireless connectivity. The 8GB eMMC provides ample space for a custom Linux image and application data.

Ideal use cases

• IoT gateways and edge nodes
• Smart speakers and voice assistants
• Industrial control and monitoring
• Portable audio devices

Good to know

The module is designed for integration into custom carrier boards, not as a standalone single-board computer. A compatible baseboard is required for development.
