ALLNET splitter/extrator PoE industrial IEEE 802.3bt Type 4, 90W, saída selecionável 5V/9V/12V/24V, Gigabit Ethernet, montagem em calha DIN/parede (ALL-PSI104G-BT90-PD)

Industrial-grade PoE splitter/extractor that converts IEEE 802.3bt Type 4 (PoE++) input up to 90W into a selectable DC output of 5V, 9V, 12V or 24V, while maintaining Gigabit Ethernet data connectivity. Ideal for powering non-PoE devices in industrial environments.

Advantages

Supports high-power PoE++ input up to 90W, enabling power delivery to demanding devices. Selectable DC output voltages (5V/9V/12V/24V) provide flexibility for various equipment. Gigabit Ethernet ensures high-speed data transmission. Robust metal housing with wide operating temperature range (-40°C to 75°C) suits harsh industrial conditions. DIN rail and wall mount options offer versatile installation.

Suitable for

• Powering IP cameras, wireless access points, and other PoE-compatible devices that require non-standard voltages.
• Industrial automation and control systems.
• Remote locations where separate power cabling is impractical.
• Upgrading legacy non-PoE devices to PoE infrastructure.

Key specifications

• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Max PoE Input Power: 90W
• Ethernet Data Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• PoE Input Port: 1x RJ45
• Data Output Port: 1x RJ45
• DC Output Port: 1x DC Jack
• Selectable DC Output Voltages: 5V, 9V, 12V, 24V
• Max DC Output Power: 90W
• Max DC Output Current (5V): 18A
• Max DC Output Current (9V): 10A
• Max DC Output Current (12V): 7.5A
• Max DC Output Current (24V): 3.75A
• Operating Temperature: -40°C to 75°C
• Housing Material: Metal
• Mounting Type: DIN Rail / Wall Mount

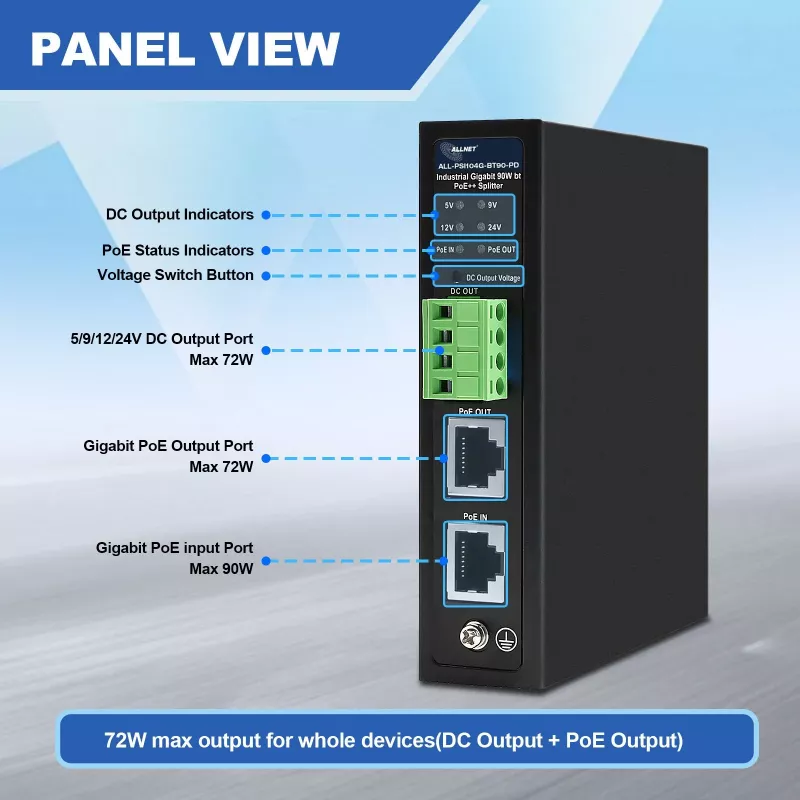

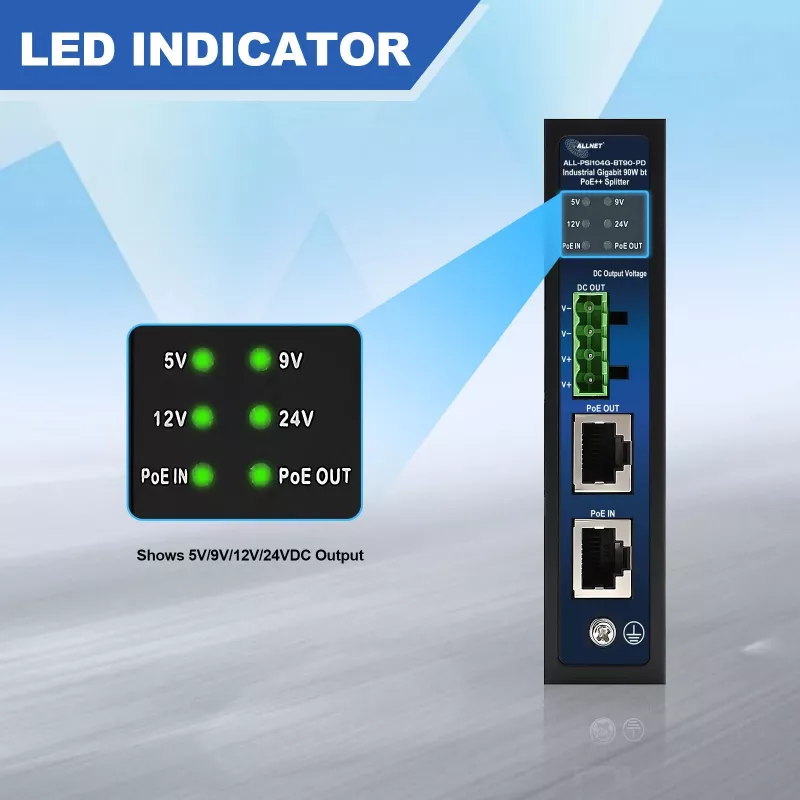

• LED Indicators: Power, PoE, DC Output
• Protection Features: Over-voltage, Over-current, Short-circuit
• Isolation: 1.5KV

Recommendations

For reliable power extraction in industrial PoE networks, pair with a high-quality 802.3bt PoE injector or switch. Ensure the DC output voltage is set correctly before connecting your device.
