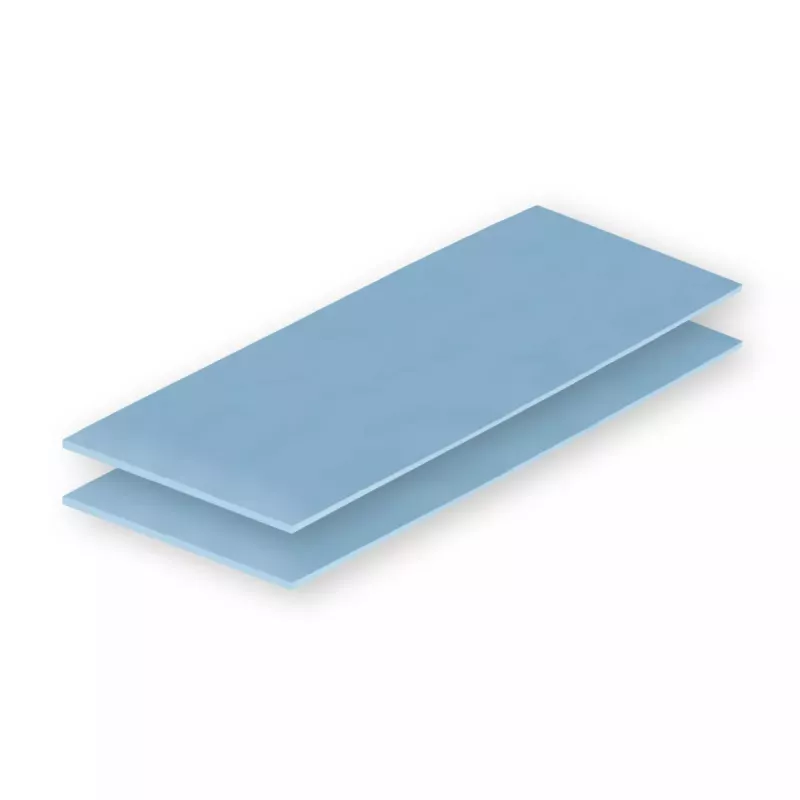

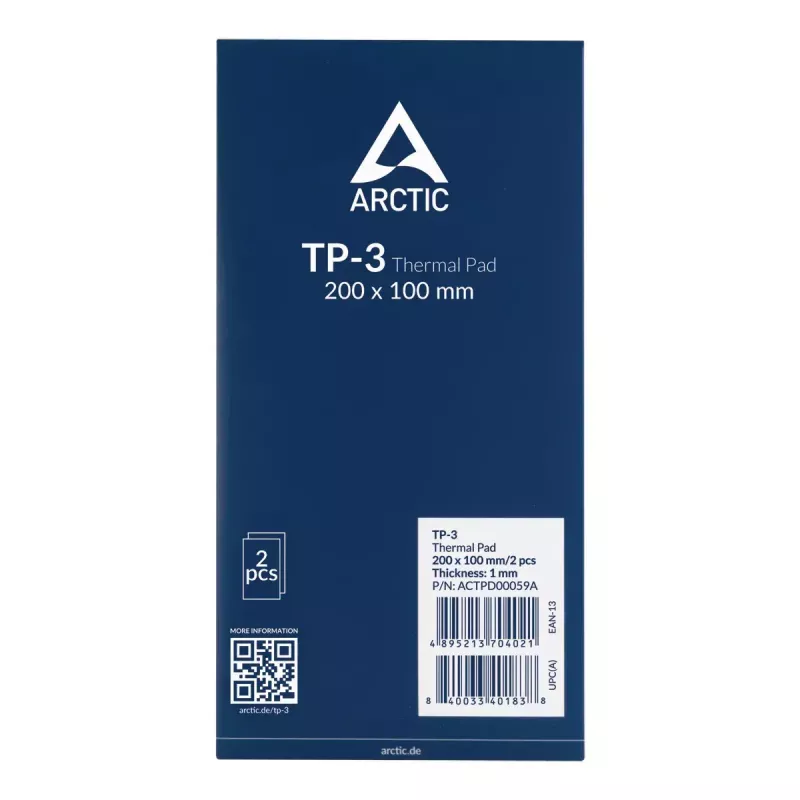

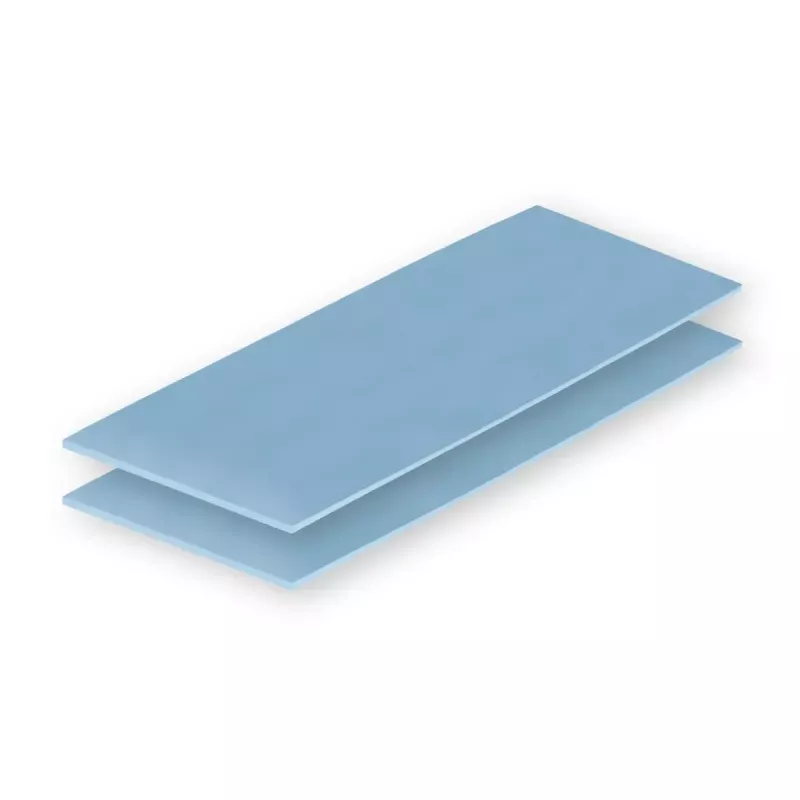

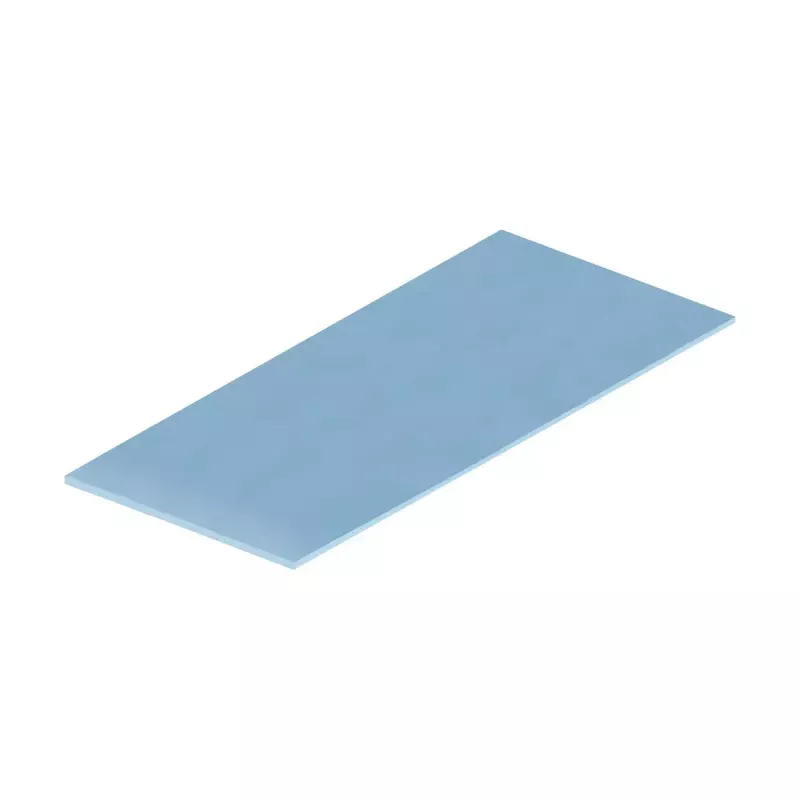

Almofada térmica ARCTIC TP-3 Premium Performance 200x100 mm 1 mm azul

High Performance - very soft

Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

Minimization of thermal resistance

The thinner the pad, the lower the termal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

Versatile Applications

Heat-conducting, vibration-damping, mouldable, electrically insulating - safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards and electronic devices in general.

Safe handling

The ARCTIC TP-3 is electrically insulating, non-adhesive and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.

Bridging gaps

The TP-3 are softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridges uneven surface and air gaps without stressing sensitive and protruding components.

Available in different thicknesses and sizes

Our thermal pads are available in a choice of 0.5 mm, 1.0 mm and 1.5 mm. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads are available in different dimensions, depending on their thickness. If required, the pads can also be independently cut to any size.

How to use

Turn off and unplug the device before starting. Remove old thermal material and clean contact surfaces with isopropyl alcohol. Cut the pad to the required shape and size if necessary, peel off the protective film, and place the pad onto the component so it covers the contact area evenly. Reassemble the heatsink or cooling assembly and secure it according to the manufacturer’s instructions to ensure firm, even pressure across the pad.

Recommendations

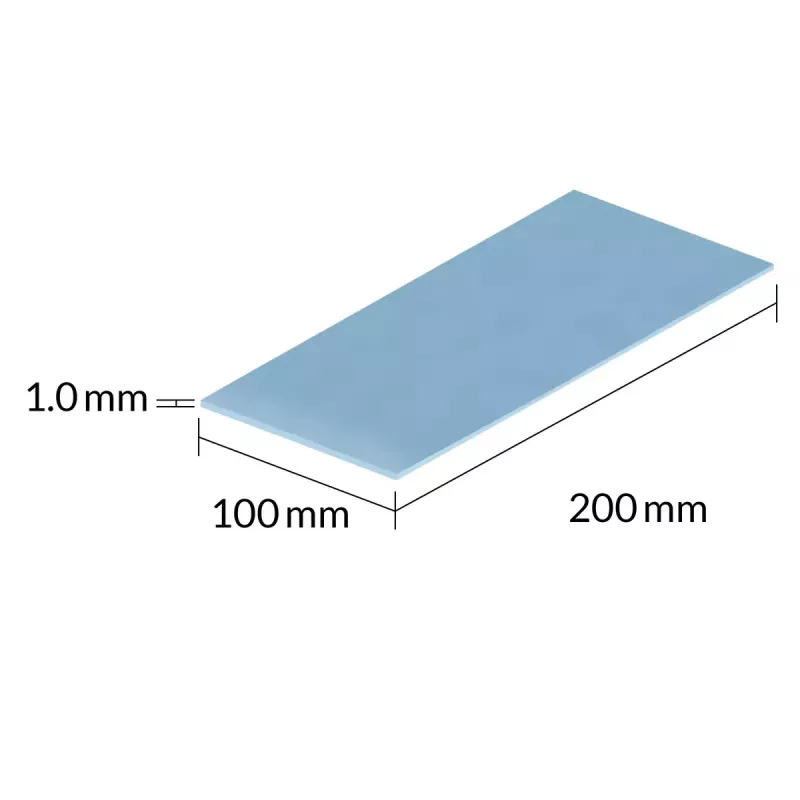

For best results, verify that the gap matches the 1 mm thickness or trim the pad accordingly. Avoid stretching the pad and ensure surfaces are clean and dry. Because the pad is non-liquid and non-conductive, it is suitable for use near exposed circuitry, but always follow the device manufacturer's service guidelines.
