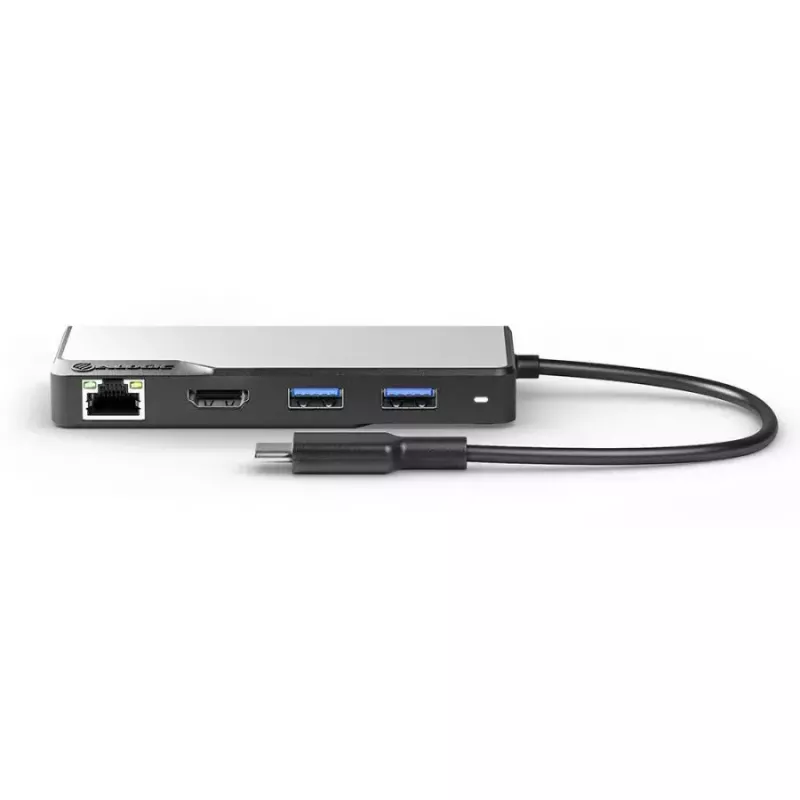

ALOGIC USB-C Fusion ALPHA 5-em-1 Hub V2 USB 3.2 Gen 1 Type-C HDMI RJ-45

The ALOGIC USB-C Fusion ALPHA 5-in-1 Hub V2 expands a single USB-C port into HDMI, USB-C (data and PD), two USB-A ports and an RJ-45 Gigabit Ethernet port. It supports HDMI video output up to 4K at 60 Hz, USB 3.2 Gen 1 (USB 3.1 Gen 1) data rates up to 5 Gbps, and up to 100W Power Delivery passthrough. The compact, space-grey hub includes an integrated USB-C cable and is compatible with a range of USB-C phones, tablets, laptops and ChromeOS devices.

Advantages

The Fusion ALPHA hub provides multiple connectivity options in a small, lightweight enclosure, allowing video output, high-speed file transfers and stable wired network access from a single USB-C connection. Its two USB-A ports support common peripherals such as keyboards and mice, while the HDMI port enables mirroring or extending external displays. The hub’s integrated USB-C cable and compact design make it convenient for use at home, in the office or on the go.

Suitable for

• Connecting a laptop or tablet to an external monitor or TV (up to 4K@60Hz)
• Adding wired Gigabit Ethernet for stable video calls and network transfers
• Attaching USB-A peripherals: keyboard, mouse, external drive, or scanner
• Charging a host device or powering accessories via up to 100W Power Delivery

Key specifications

• Host interface: USB-C (USB 3.2 Gen 1 / USB 3.1 Gen 1)
• Data transfer: up to 5 Gbps on USB 3.2 Gen 1 port
• Video output: HDMI up to 4K (3840×2160) at 60 Hz
• Power Delivery: up to 100W passthrough via USB-C
• Ethernet: RJ-45 Gigabit Ethernet (100/1000 Mbit/s)
• Ports: 1× HDMI, 1× USB-C (data/PD), 2× USB-A (USB 3.2 Gen 1), 1× RJ-45
• Colour: Grey / Black
• Weight: approximately 0.075 kg

How to use

Connect the hub’s integrated USB-C cable to your USB-C host device. Use the HDMI port to mirror or extend your screen to a compatible monitor, TV or projector. Plug USB-A peripherals into the available USB-A ports for keyboards, mice or external storage. Connect an Ethernet cable to the RJ-45 port for a wired network connection. If needed, connect a USB-C power adapter to the hub’s USB-C PD port to supply up to 100W power to the host device while using other ports.

Recommendations

For best performance, use HDMI and Ethernet cables rated for the required specifications (HDMI cable supporting 4K@60Hz and a Cat5e/Cat6 Ethernet cable for Gigabit speeds). Use a USB-C power adapter that provides sufficient wattage for your host device when using Power Delivery passthrough. Ensure your host device supports DisplayPort Alt Mode over USB-C to enable video output.
