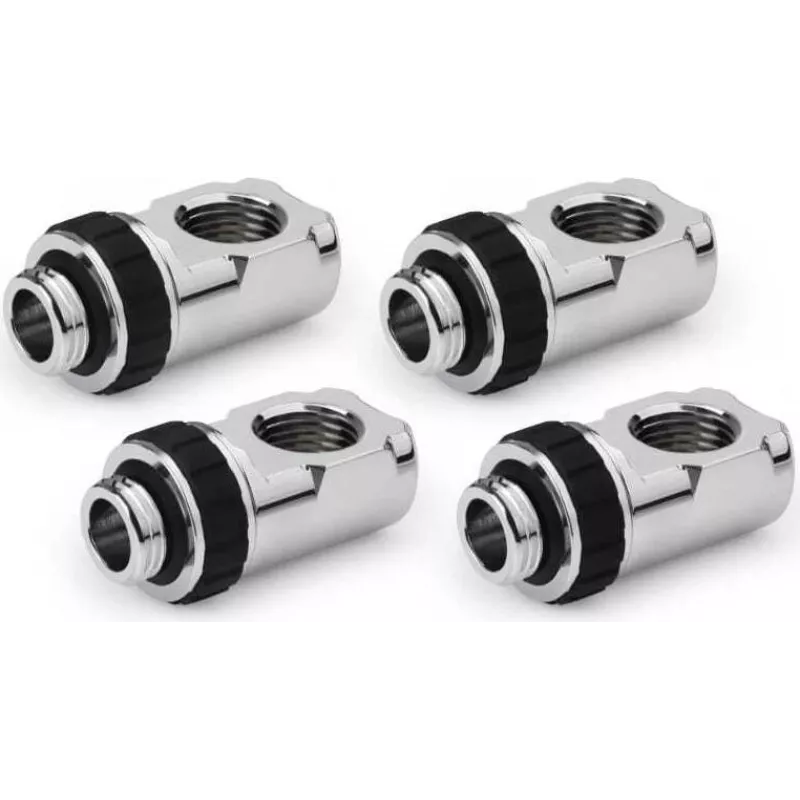

Alphacool Apex Grip adaptador articulado 90° G1/4 rosca macho para rosca fêmea, cromado, pack de 4 (14933)

Custom loop builders working in tight cases know the struggle of routing tubing around corners without kinking. The Alphacool Apex Grip 90° swivel adapter solves that by giving you a right-angle turn with full 360° rotation at the joint. Each fitting has a male G1/4 thread on one end and a female G1/4 port on the other, so you can attach it directly to a radiator, pump, reservoir, or CPU block and then connect your compression fitting or hard tube fitting on top. The chrome-plated brass body looks sharp in any build and resists corrosion over years of service.

Key specifications

• Thread: G1/4" male to female
• Angle: 90°
• Rotatable: 360° swivel
• Material: Brass with chrome plating
• Sealing: O-ring
• Quantity: 4 adapters

Why choose it

Because the swivel joint lets you position the outgoing tube at any angle after the fitting is tight, you eliminate stress on tubing and simplify loop layout. The chrome finish matches nickel and silver components, and the brass core provides long-term reliability. Each adapter is only 31.5 mm long and 18 mm in diameter, so it fits in cramped spaces where standard elbows won't.

Ideal use cases

• Connecting a GPU block to a vertical radiator in small form factor cases
• Making a clean 90° turn directly at a pump outlet without extra fittings
• Adjusting tube routing after installation thanks to the swivel action
• Building a parallel loop where space between components is minimal

Good to know

The set includes four adapters, enough for two complete inlet/outlet pairs. Always use a suitable O-ring and do not overtighten; hand-tight plus a quarter turn is usually sufficient. Compatible with all standard G1/4" water cooling components from Alphacool and other major brands.
