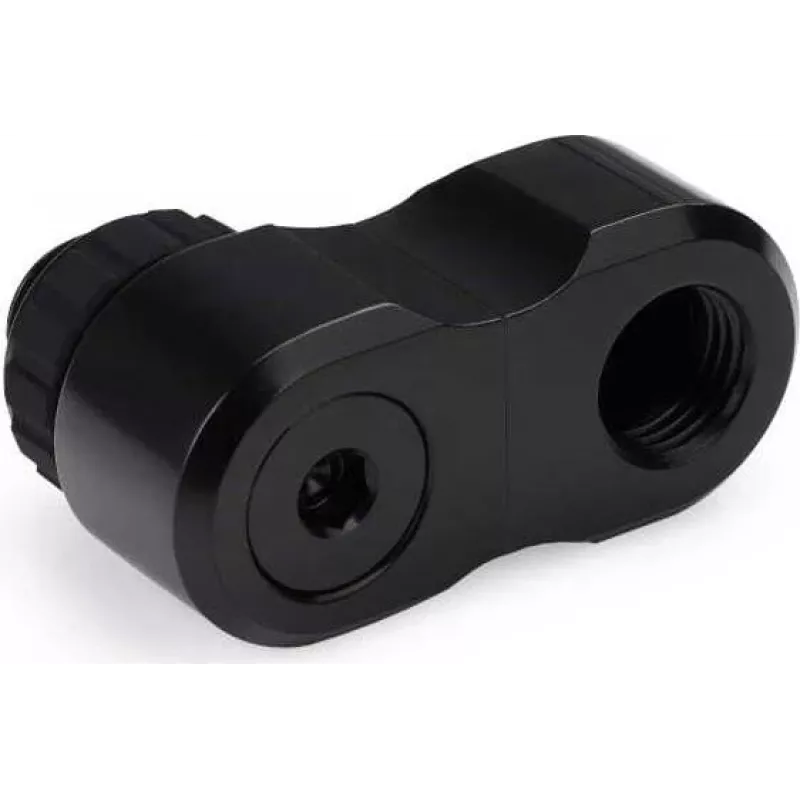

Alphacool Apex Grip Offset Adaptador 27mm Duplo 90° G1/4 Rosca Macho para Rosca Fêmea Rotativo Preto 14814

PC water cooling enthusiasts often face tight spaces where standard fittings cannot achieve the required routing. The Alphacool Apex Grip Offset Adapter solves this by providing a dual 90-degree angle with a 27mm offset, allowing tubing to bypass obstacles like RAM modules or VRM heatsinks without kinking. Its swivel design enables precise alignment, making it an essential component for compact or complex loop configurations.

Key specifications

• Product type: Offset adapter with dual 90-degree angle
• Connection: Male G1/4" to Female G1/4"
• Offset distance: 27 mm
• Rotatability: 360° swivel on both joints
• Material: Brass with matte black finish
• Seal: EPDM O-ring
• Max operating temperature: 60 °C
• Max operating pressure: 1.5 bar
• Male thread length: 7 mm
• Female thread depth: 5 mm
• Body diameter: 23 mm

Why choose it

The Apex Grip series is engineered for reliability and ease of use. The swivel mechanism allows the fitting to be rotated after installation, ensuring perfect tube alignment without stressing the O-ring. The deep black coating not only looks sleek but also resists corrosion, maintaining performance over time. Its compact design saves space while providing a robust connection for high-flow loops.

Ideal use cases

• Routing tubing around large CPU coolers or graphics cards
• Creating offset runs in small form factor cases
• Connecting components with misaligned ports
• Bridging distances where a straight fitting would cause kinks

Good to know

This adapter is compatible with all standard G1/4" threaded components, including radiators, pumps, reservoirs, and water blocks. For optimal sealing, hand-tighten the fitting and avoid over-torquing. The EPDM O-ring provides excellent chemical resistance to common coolants. Always check for leaks after installation and periodically inspect O-rings for wear.
