Altifalante de 2 vias Omnitronic 11036927

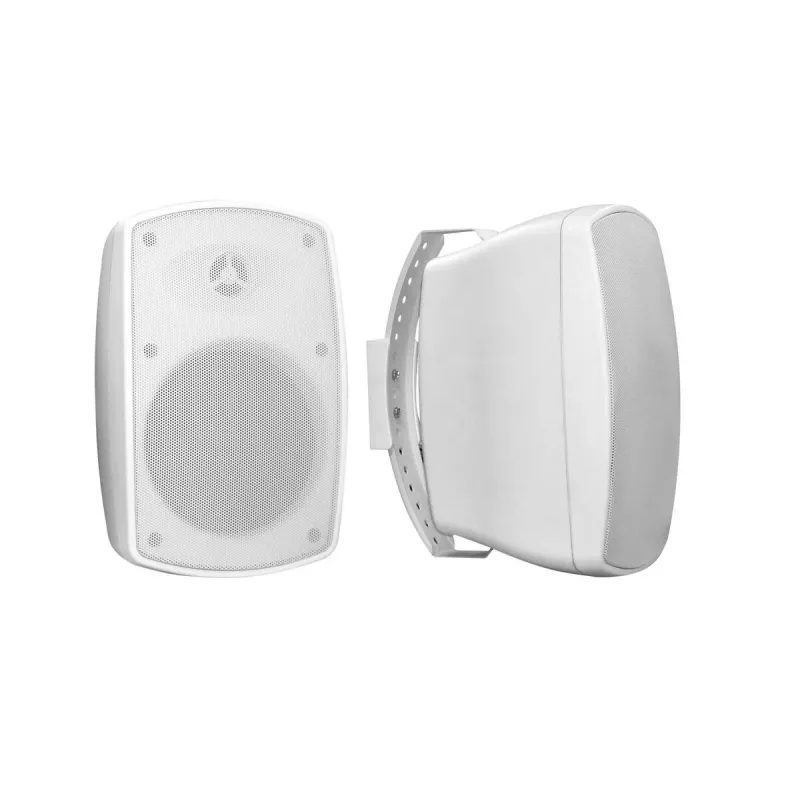

The Omnitronic OD-6T (model 11036927) is a weatherproof 2-way wall speaker pair designed for indoor and outdoor fixed installations. Each cabinet houses a 16.5 cm woofer and a 2.5 cm silk-dome tweeter, and the speakers come in a white IP65-rated plastic housing with metal grille and a protective cover over the connection terminals. The system supports 100 V line operation and includes a swivel/tilt bracket for wall or ceiling mounting.

Advantages

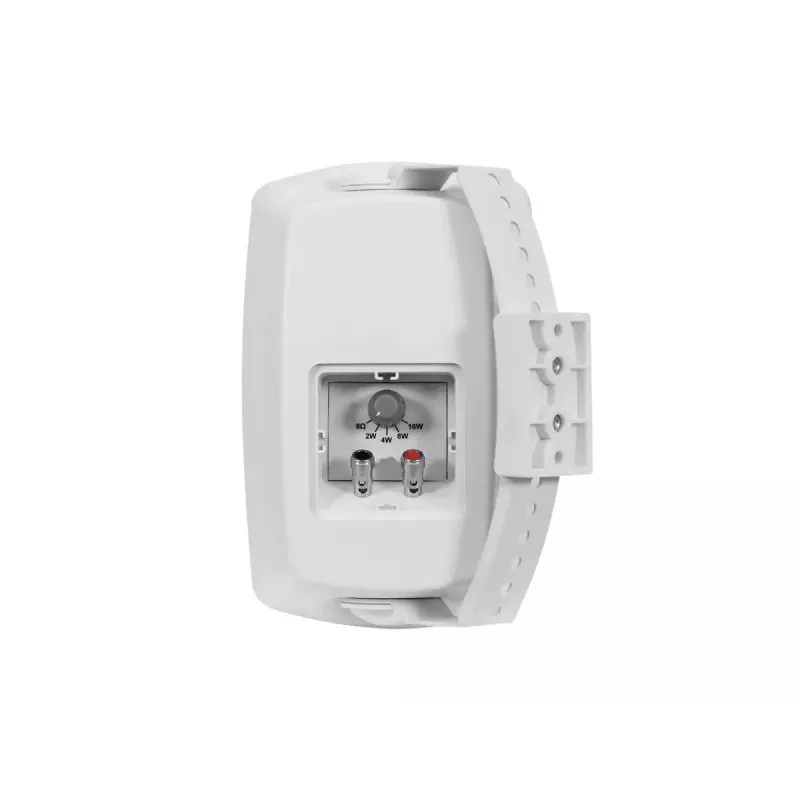

The speakers offer a clear sound image across a wide frequency range (50–20,000 Hz) with a sensitivity of 90 dB and nominal impedance of 8 Ω. A built-in 100 V transformer provides four power taps plus an 8 Ω bypass position, enabling flexible power matching for distributed audio systems. The IP65 weatherproof enclosure and covered connections ensure reliable outdoor use and protection against moisture and dust.

Suitable for

Key specifications

How to use

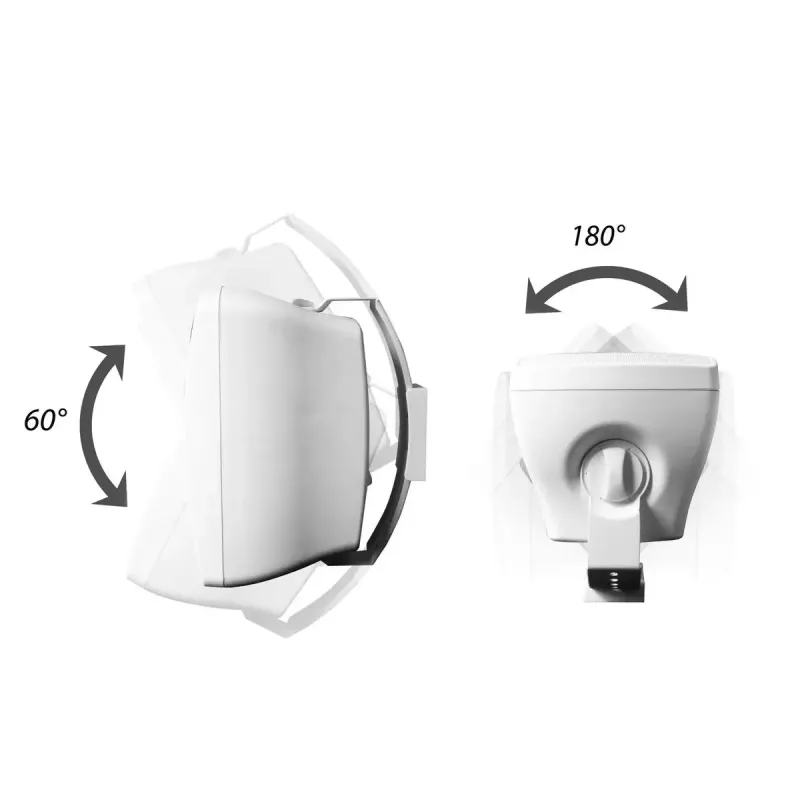

Mount the speaker cabinets to a sturdy wall or ceiling using the supplied swivel and tilt brackets; adjust the angle for optimal coverage. For distributed 100 V systems, select the required power tap on the transformer according to the desired wattage and system design. If connecting to an amplifier directly in low-impedance mode, switch the selector to the 8 Ω position. Ensure connections are tightened and the cover is closed to maintain weather protection.

Recommendations

Install at heights and positions that provide even sound coverage and avoid directing speakers toward exposed locations where they would receive direct water spray. For longer-term outdoor installations, verify mounting hardware is corrosion-resistant and follow local wiring regulations when integrating into 100 V public address systems.
