Altifalante full range Omnitronic 11036909 branco com fios 15 W

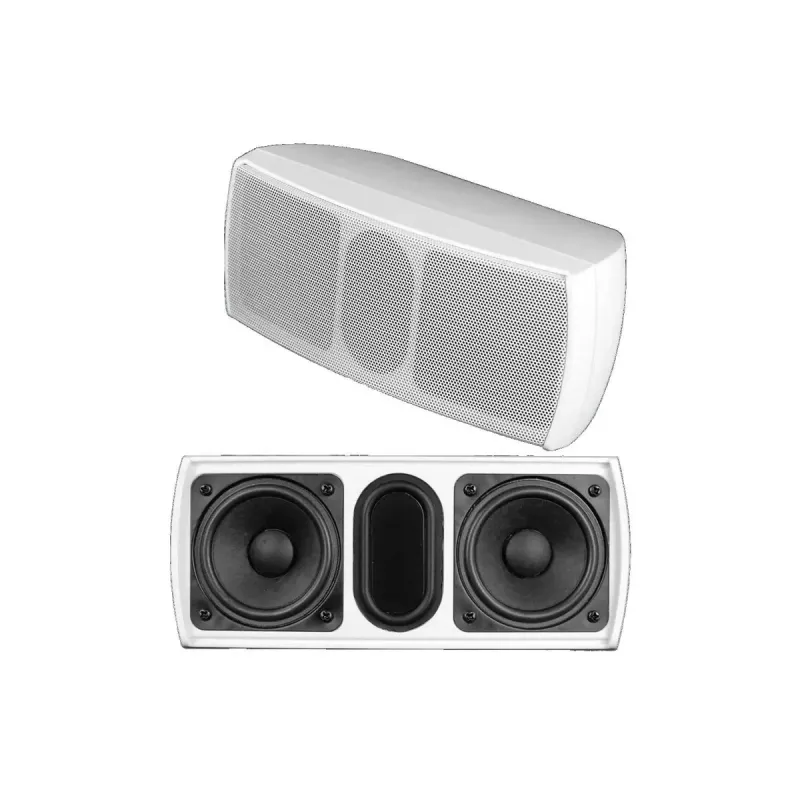

The Omnitronic Full range loudspeaker 11036909 is a compact 15 W wired speaker designed for background music and voice reinforcement in restaurants, bars, shops, conference rooms and recreation areas. The unit combines a 2 x 6 cm full-range driver with a 3.5 x 6 cm passive membrane and a built-in 100 V transformer in a scratch-resistant ABS housing with metal grille, enabling reliable public-address and background-music use.

Advantages

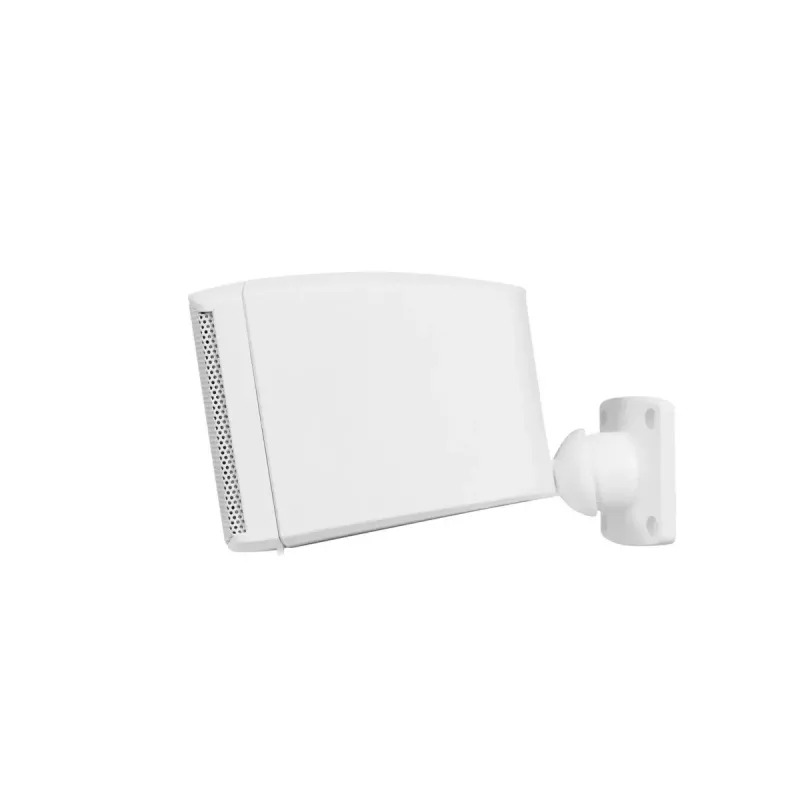

The speaker delivers consistent sound with 15 W nominal power, 8 Ω impedance and 88 dB sensitivity across a wide frequency range (120–22000 Hz). Its 100 V transformer simplifies distributed installations, while the impact- and scratch-resistant ABS enclosure with metal grille provides durable protection. A stable mounting plate with swivel and tilt joint allows wall or ceiling mounting at adjustable angles.

Suitable for

Key specifications

How to use

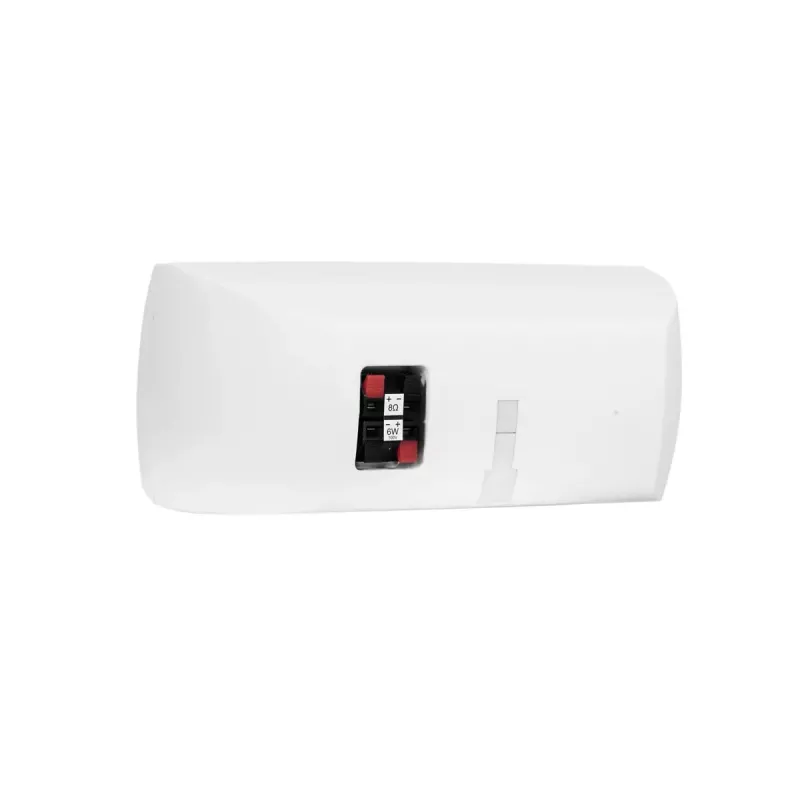

Mount the loudspeaker securely using the supplied stable mounting plate; adjust the swivel and tilt joint to aim the speaker at the listening area. Connect the speaker to a compatible amplifier or PA system using the wired connection and, when used in 100 V distributed systems, select the appropriate tapping on the transformer. Verify polarity and test at low volume before regular operation.

Recommendations

For even coverage in larger areas, plan speaker placement and use multiple units on a 100 V line. Avoid exposing the unit to direct moisture or extreme temperatures; clean the housing with a dry or slightly damp cloth. Use an amplifier with appropriate power and impedance matching to ensure optimal performance.
