Amplificador de antena DVB-T/T2 RED EAGLE WZ-20

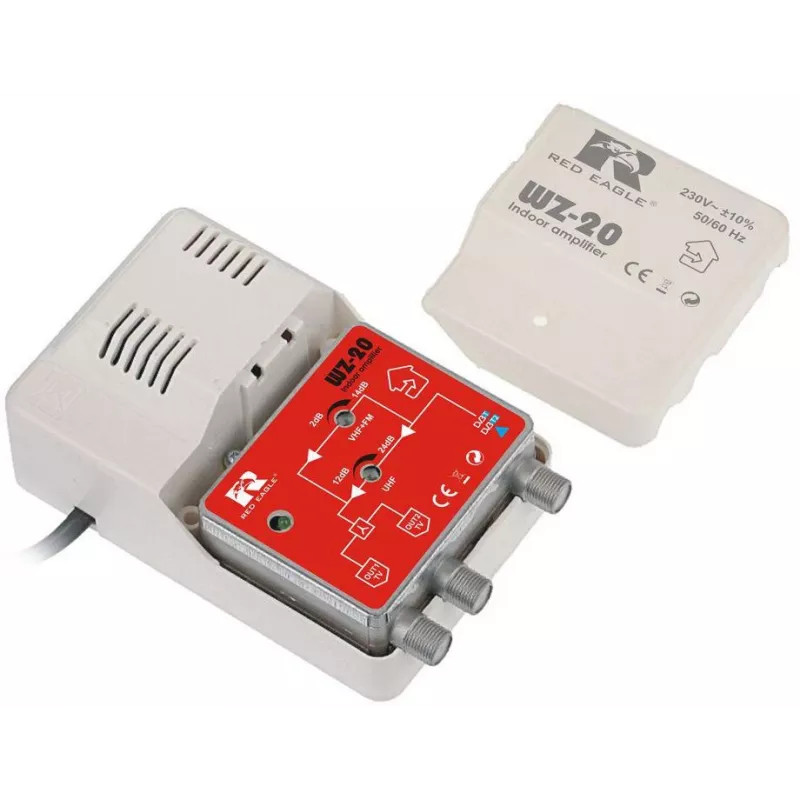

The RED EAGLE WZ-20 is a high-performance DVB-T/T2 antenna amplifier designed to boost weak digital terrestrial television signals. With 20 dB gain and integrated LTE/5G filtering, it ensures clear reception of DVB-T and DVB-T2 broadcasts. The compact metal housing provides excellent shielding, making it ideal for indoor installation.

Advantages

Improves signal quality in areas with weak reception; filters out LTE/5G interference up to 694 MHz; easy to install with F-type connectors; low noise figure for minimal signal degradation.

Suitable for

• Home TV setups with weak DVB-T/T2 signals
• Indoor antenna systems requiring signal amplification
• Users needing reliable reception in fringe areas

Key specifications

• Product Type: Antenna Amplifier
• Signal Type: DVB-T, DVB-T2
• Frequency Range: 47-694 MHz
• Gain: 20 dB (±1 dB)
• Noise Figure: < 2.5 dB
• Max Output Level: 100 dBµV
• Inputs: 1
• Outputs: 1
• Connectors: F-type
• Impedance: 75 Ohm
• Power Supply: 5-12 V DC
• Current Consumption: 30 mA
• LTE/5G Filtering: Yes (up to 694 MHz)
• Shielding: High (metal housing)
• Installation Environment: Indoor
• Powering Method: Remote power via coaxial cable or external power injector

Recommendations

For optimal performance, use with a compatible DVB-T/T2 antenna and ensure proper cable connections. The amplifier can be powered remotely via coaxial cable or with an external power injector (not included).
