Módulo SFP+ InLine 32335K 1550 nm Monomodo 40 km 10 Gb/s

10Gb/s high-speed transceiver:Powerful for network backbones, data centres and industrial applications.
Up to 40 km range:Ideal for medium distances with single-mode fibre – perfect for site networking or building interconnection.
1550 nm EML laser for long range:Ensures reliable signal transmission with low attenuation.
Digital Diagnostic Monitoring (DDM):Real-time monitoring of temperature, voltage and reception level – ideal for controlled environments.
Hot-plug capable & MSA-compliant:Easy replacement during operation, compatible with common switches and routers.

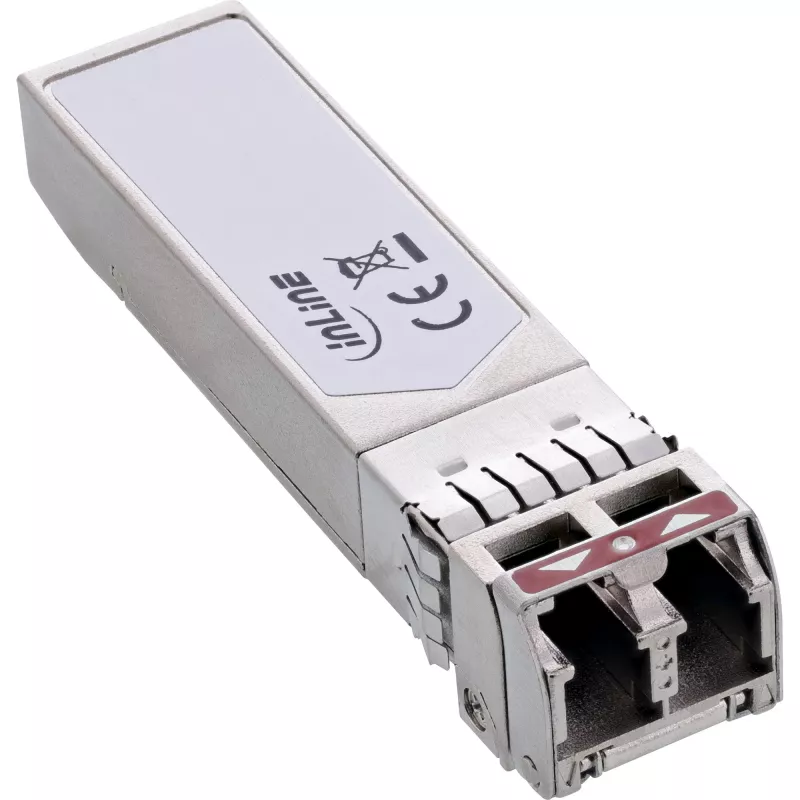

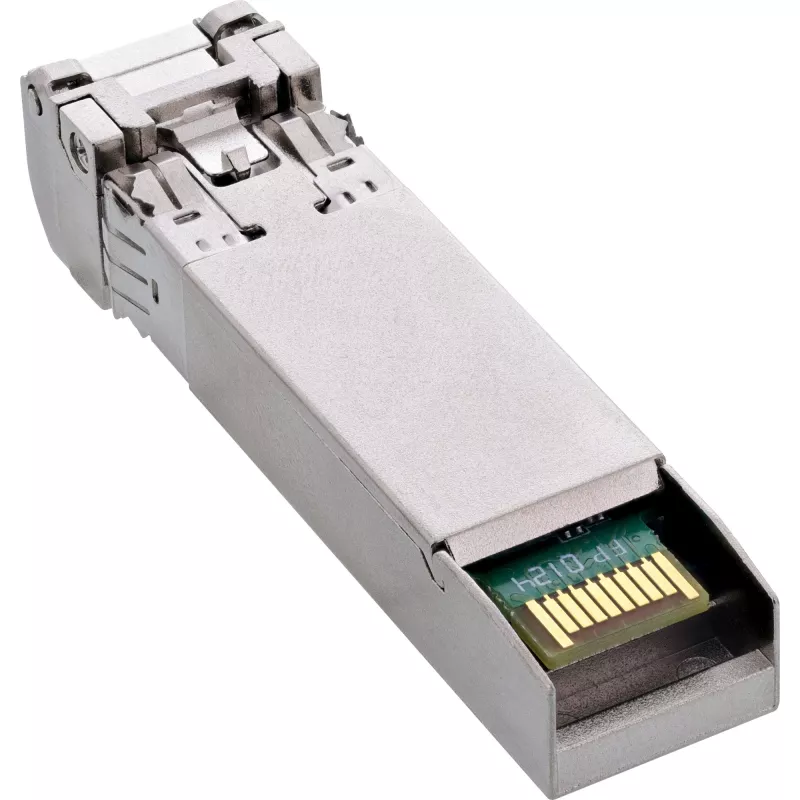

The InLine® SFP+ Module 32335K is the reliable solution for fibre optic connections with up to 10Gb/s and a range of 40 km. It is ideal for structured networks with medium distances – e.g. between technical centres, racks or across company premises.
Equipped with a 1550 nm EML laser and an APD receiver with TIA amplification, this SFP+ module ensures stable, low-loss transmission over single-mode fibres. MSA compliance (SFF-8472, SFF-8431) and compatibility with IEEE 802.3ae enable a wide range of applications in a variety of devices.
Another highlight is the integrated DDM (Digital Diagnostic Monitoring) function, which continuously monitors important operating parameters such as temperature, power consumption, reception strength and voltage – ideal for professional IT environments.
Thanks to the hot-plug function, the module can be replaced during operation without interrupting the network. The compact LC duplex interface also makes it particularly easy to install.

Form factor: SFP+
Transmission rate: up to 10.3125 Gb/s (10GBASE-EW)
Fibre type: single mode
Range: up to 40 km
Transmitter: 1550 nm EML laser
Receiver: 1260–1620 nm (APD + TIA)
Connection: LC duplex
Hot-plug capable: yes
Digital diagnostics: DDM / DOM supported
Compatibility: MSA SFF-8472, SFF-8431, IEEE 802.3ae
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 610 mA
Power consumption: < 2 W
Operating temperature: 0 °C to +70 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335K. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10312.5 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V, Power consumption (typical): 2 W. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.22 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm

How to use

Install the SFP+ module into a compatible SFP+ cage on a switch, router or media converter with the unit powered down or following the host device hot-plug guidelines. Connect singlemode fibre patch cables with LC duplex connectors to the module, ensuring correct transmit/receive orientation. Configure the host port for 10 Gb/s operation if required by the network device. Monitor link status and diagnostics through the host device management interface to verify optical signal levels and connection quality.

Recommendations

Use good quality singlemode fibre and LC duplex patch cords, follow proper fibre handling procedures to avoid contamination of optical interfaces, and verify compatibility with your network equipment. For distances approaching the maximum reach, check link budget and optical power margins to ensure reliable operation.
