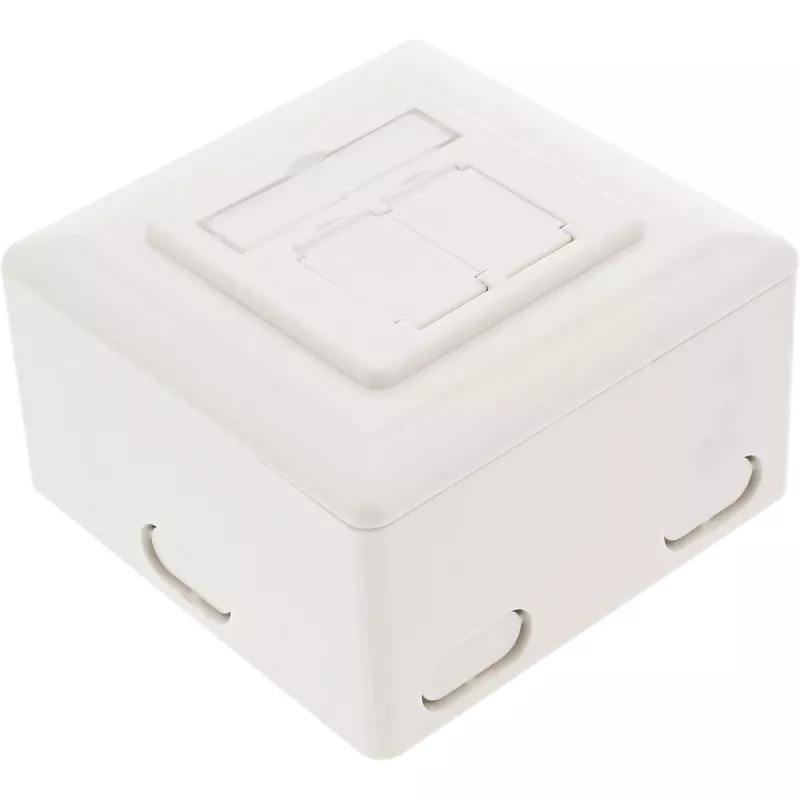

Tomada de parede InLine Cat.6 2x RJ45 horizontal — montagem à superfície ou embutida

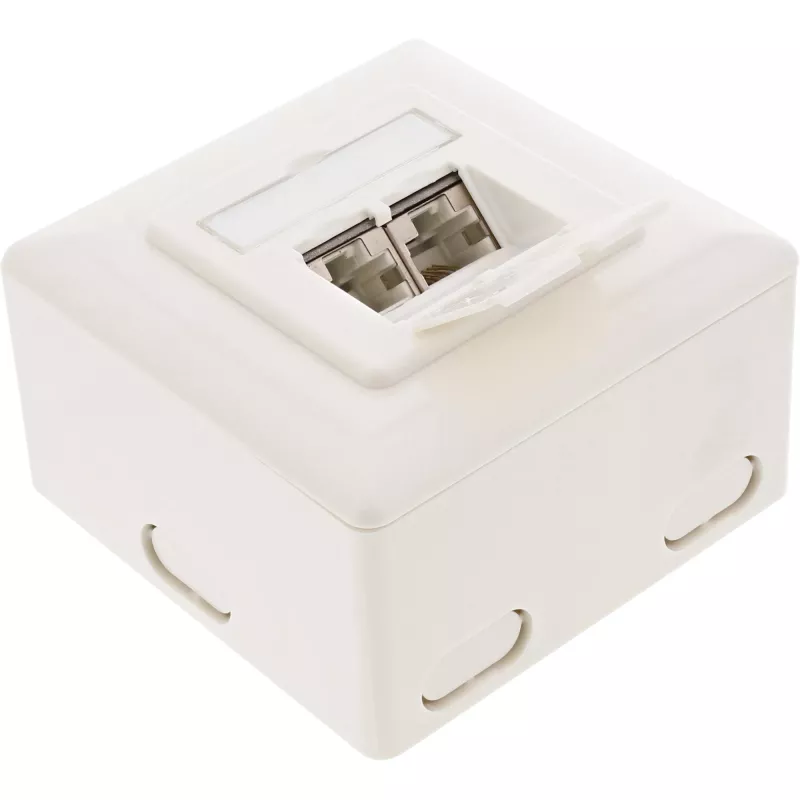

The InLine Cat.6 wall outlet box provides a compact and fully shielded enclosure for two horizontal RJ45 connections, suitable for both surface and flush mounting. Designed for Cat.6 network terminations, the box accepts keystone RJ45 jacks or pre-terminated cables and includes two LSA connection strips with eight clamping plates each to support reliable structured cabling. Its shielded metal design helps reduce electromagnetic interference in office, home or data cabinet installations while keeping connections tidy and accessible.

Advantages

The outlet box offers a dual-port layout that keeps two RJ45 connections in a single footprint, saving wall space and simplifying cabling routes. Complete shielding improves signal integrity in environments with potential electromagnetic disturbances. The integrated LSA connection strips with 8 clamping plates per strip enable stable punched-down terminations for Cat.6 cabling. Flexible mounting options allow either surface-mounted installation where conduit or trunking is used, or flush mounting for a low-profile finish.

Suitable for

• Office workstations and conference rooms requiring two Ethernet ports
• Home networks and multimedia installations
• Patch and distribution points inside data cabinets or comms cupboards
• Retrofit projects where surface mounting is preferred

Key specifications

• Port count: 2 horizontal RJ45 positions
• Cabling class: compatible with Cat.6 terminations

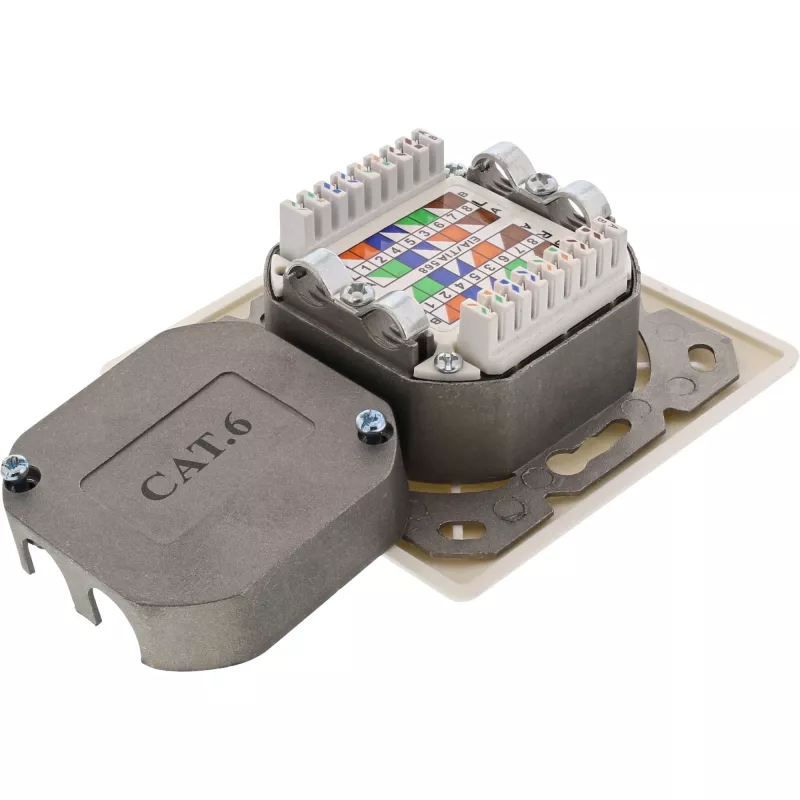

• Connection type: two LSA (punch-down) strips with 8 clamping plates each

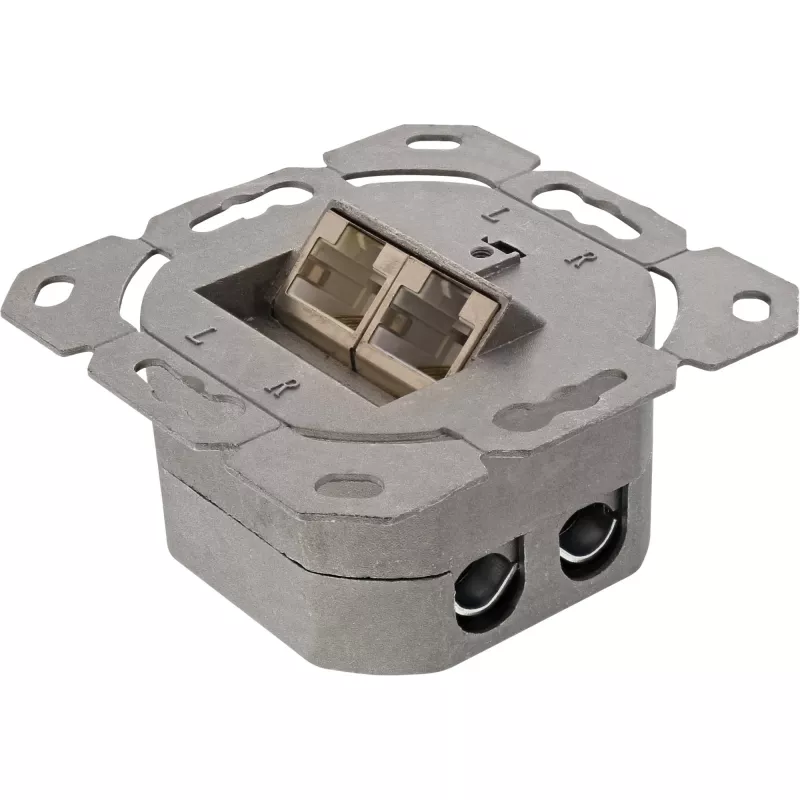

• Shielding: fully shielded enclosure for EMI protection
• Mounting: surface mount or flush mount options
• Enclosure: compact footprint suitable for wall or cabinet mounting

How to use

Mount the box at the chosen location using appropriate screws and anchors for surface or in-wall fastenings. Install keystone RJ45 jacks or guide pre-terminated cable connectors into the horizontal RJ45 openings. For hard-terminated cables, punch down each conductor into the LSA strips following the T568A or T568B wiring standard and verify correct pair alignment. Ensure the shield is properly bonded to the building grounding system when using shielded twisted-pair cable to maintain shielding effectiveness. After termination, attach the cover and secure any cable strain relief.

Recommendations

Use Cat.6-compatible keystone jacks and ensure correct wiring standard across the network to preserve performance. When installing shielded cable, confirm continuous grounding from the cable shield to the box and onward to the building ground. Test each link with an appropriate network tester after installation to verify continuity, pair integrity and Cat.6 performance.
