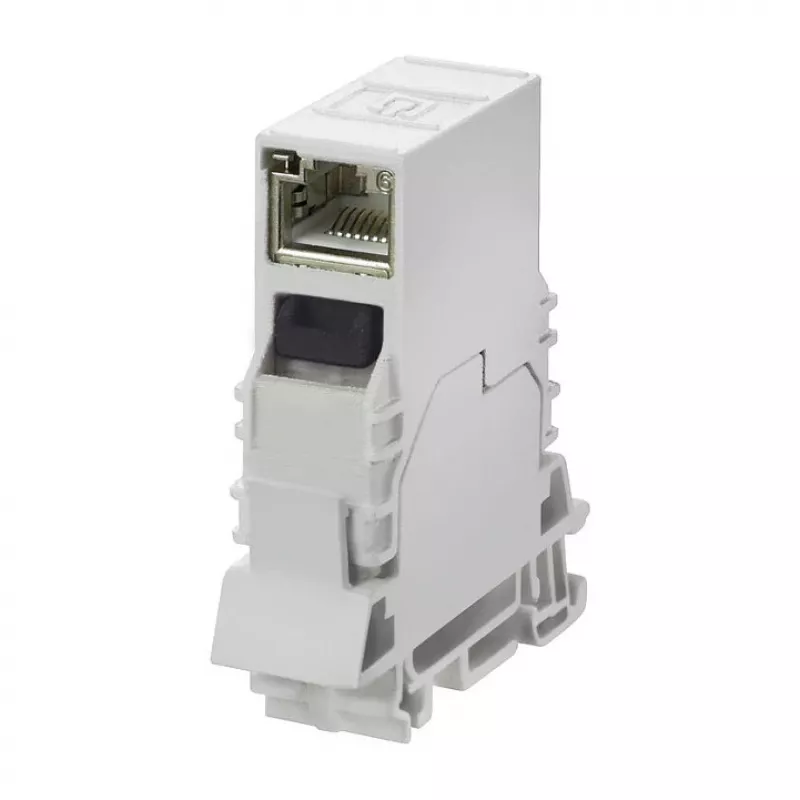

Weidmueller IE-TO-RJ45-C tomada RJ45 para calha DIN, Cat.6A blindada

Industrial control cabinets often lack a reliable, high-performance network termination point that can withstand the rigors of automation environments. The Weidmüller IE-TO-RJ45-C solves this by providing a robust, shielded RJ45 outlet that mounts directly onto a standard 35 mm DIN rail, ensuring stable 10-Gigabit Ethernet connectivity in compact spaces.

Who is it for

Network installers, system integrators, and automation engineers who need a tool-free, space-saving RJ45 outlet for industrial Ethernet or structured cabling inside control panels and enclosures.

Main features

• DIN rail (35 mm) mounting for quick installation in control panels.
• Cat.6A shielded RJ45 outlet supports 10GBASE-T connections.
• LSA-Plus IDC termination for fast, reliable wire termination without special tools.
• Supports TIA/EIA 568A/B wiring schemes for flexibility.
• Metal housing provides ruggedness and effective shielding.
• Single-port design ideal for equipment outlets.

Specifications

• Connector Type: RJ45 (Female)
• Network Category: Cat.6A
• Shielding: Shielded (FTP/STP)
• Number of Ports: 1
• Termination Type: LSA-Plus IDC
• Wiring Scheme: TIA/EIA 568A/B
• Supported Data Rate: Up to 10 Gbit/s (10GBASE-T)
• Wire Gauge Support: AWG 24-22
• Mounting: DIN Rail (35 mm)
• Housing Material: Metal
• Colour: Silver / Grey
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

When terminating, use appropriate AWG 24-22 twisted pair cable and follow the chosen wiring scheme carefully. Ensure the shield is connected properly for optimal performance.
