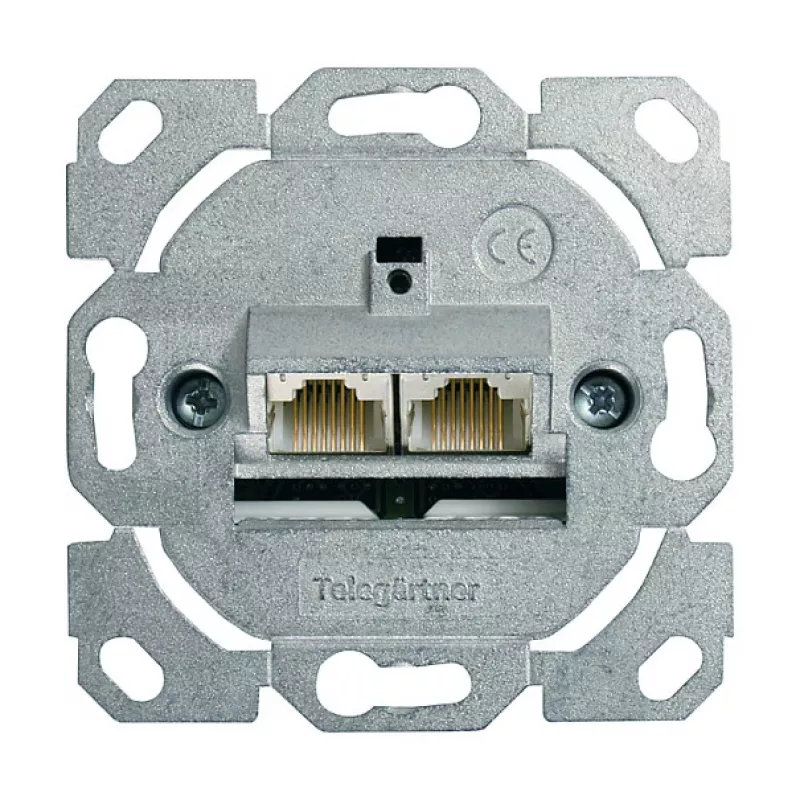

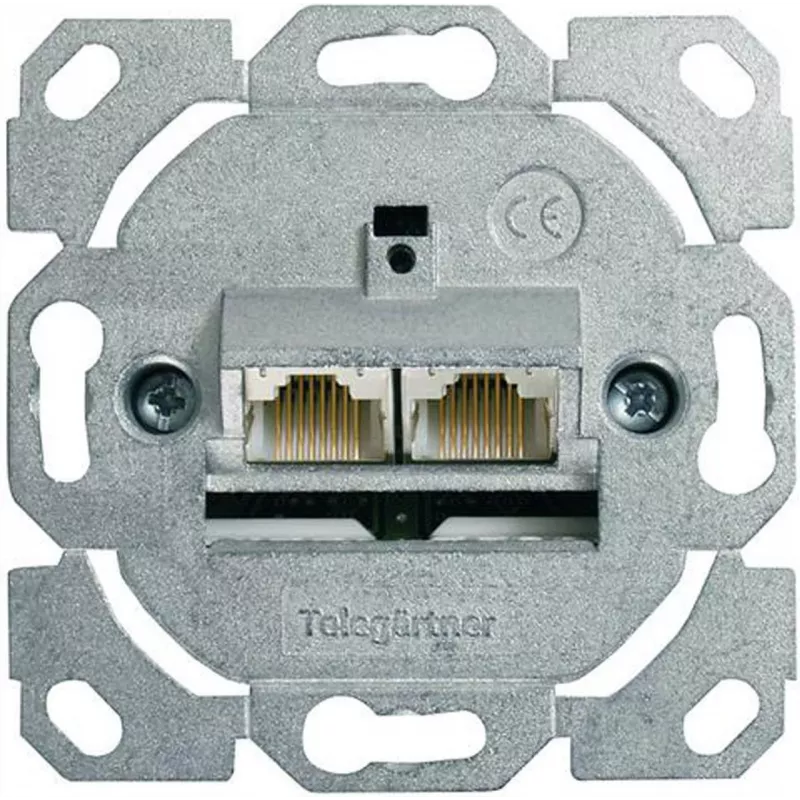

Telegärtner AMJ45 Módulo de ligação de dados, 2 portas RJ45, Cat.6A blindado, 10G, IDC sem ferramentas, caixa de zinco

For installations demanding both high bandwidth and long-term reliability, the Telegärtner AMJ45 Data Outlet Module delivers Cat.6A performance in a compact, two-port design. Unlike standard keystone jacks that rely on plastic bodies, this module uses a die-cast zinc housing for superior shielding, mechanical stability, and heat dissipation. It supports 10 Gigabit Ethernet up to 500 MHz, making it ideal for modern office networks, industrial environments, and smart buildings where PoE and high data rates are essential.

Highlights

• Two RJ45 ports in a single module – doubles connection density without extra space.
• Cat.6A / Class EA performance – supports 10GBASE-T up to 500 MHz.
• Fully shielded (STP/FTP) with die-cast zinc body – protects against EMI and crosstalk.
• Tool-free IDC termination – quick, reliable connections for solid or stranded conductors.
• PoE ready – supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powered devices.
• Gold-plated contacts (min. 0.8 µm) – ensures low contact resistance and corrosion resistance.
• High durability – rated for over 750 insertion cycles.

In daily use

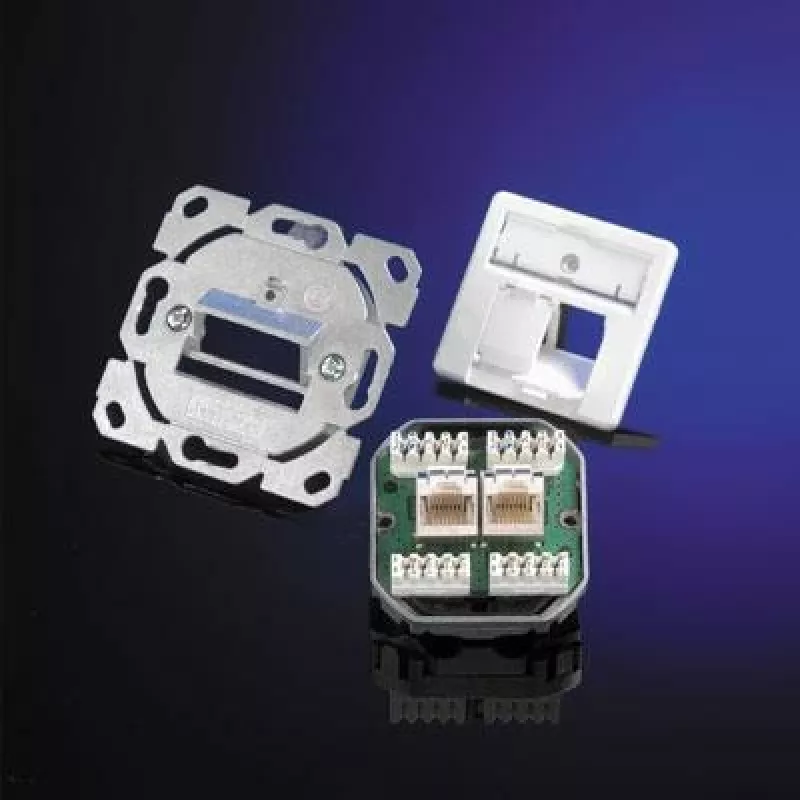

Installing the AMJ45 module is straightforward: insert the cable conductors into the colour-coded IDC slots and press down with the integrated cap – no special punch-down tool required. The module snaps into standard AMJ45/Keystone frames and faceplates, making it compatible with existing Telegärtner mounting systems. Its wide operating temperature range (-40°C to +70°C) allows deployment in challenging environments, from unheated warehouses to outdoor cabinets. The shielded zinc housing ensures stable performance even when bundled with power cables or near sources of interference.

Full specifications

• Product type: Data outlet module
• Number of ports: 2
• Connector type: RJ45
• Category rating: Cat.6A (ISO/IEC 11801 Class EA)
• Shielding: Shielded (STP/FTP)
• Transmission speed: 10 Gigabit Ethernet (10GBASE-T)
• Frequency bandwidth: 500 MHz
• Wiring standard: T568A / T568B
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Mounting type: Module for Keystone/AMJ45 frames
• Housing material: Die-cast zinc
• Contact plating: Gold-plated (min. 0.8 µm)
• Insertion cycles: >750
• Operating temperature: -40°C to +70°C
• Standards compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2
• Termination type: IDC (Insulation Displacement Connector), tool-free
• Supported cable gauge (solid): AWG 24/1 to AWG 22/1
• Supported cable gauge (stranded): AWG 26/7 to AWG 22/7

Final note

When you need a robust, future-proof connection point that can handle 10G speeds and high power delivery, the Telegärtner AMJ45 module is a professional choice that combines German engineering with practical installation features.
