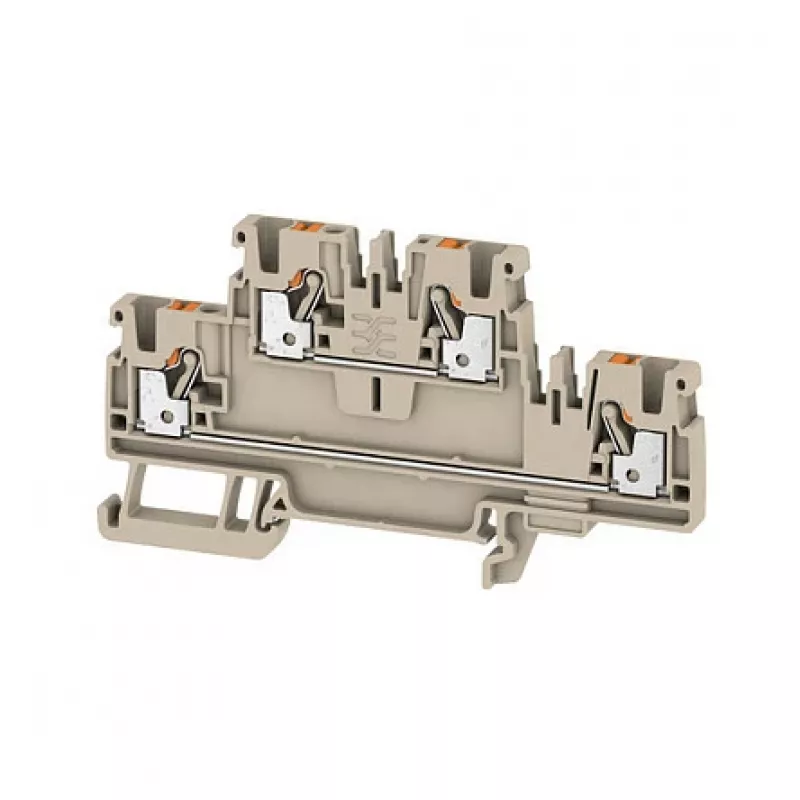

Borne de passagem Weidmüller A2T 2.5, 2,5 mm², bege, PUSH IN

The Weidmüller A2T 2.5 feed-through terminal block is a high-quality connection solution for industrial wiring. Designed for DIN rail mounting, it features PUSH IN technology for fast and tool-free wiring of solid and flexible conductors. With a rated voltage of 800 V and rated current of 24 A, it is suitable for a wide range of applications in control cabinets and junction boxes.

Advantages

PUSH IN connection technology reduces installation time and ensures reliable, vibration-proof connections. The compact design saves space on the DIN rail. The beige colour provides clear identification in complex wiring systems.

Suitable for

• Industrial control cabinets
• Building automation
• Power distribution
• Machine wiring

Key specifications

• Product Type: Feed-through Terminal Block
• Connection Technology: PUSH IN
• Nominal Cross-section: 2.5 mm²
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: TS 35 DIN rail
• Colour: Beige
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Impulse Withstand Voltage: 8 kV
• Conductor Cross-section, Solid: 0.5 - 4 mm²
• Conductor Cross-section, Flexible: 0.5 - 2.5 mm²
• Conductor Cross-section, Flexible with Ferrule: 0.5 - 2.5 mm²
• Stripping Length: 10 mm
• Insulation Material: Wemid
• Flammability Rating: UL 94 V-0
• Operating Temperature: -60 °C to 130 °C
• Approvals: cULus, KEMA, EAC
• Test Port Diameter: 2.3 mm

Recommendations

For optimal performance, use with Weidmüller marking systems and accessories. Ensure proper stripping length and use appropriate ferrules for flexible conductors.
