Adaptador de módulo de transferência DeLOCK M12 4 pinos codificação A conector fêmea para bloco de terminais de 5 pinos

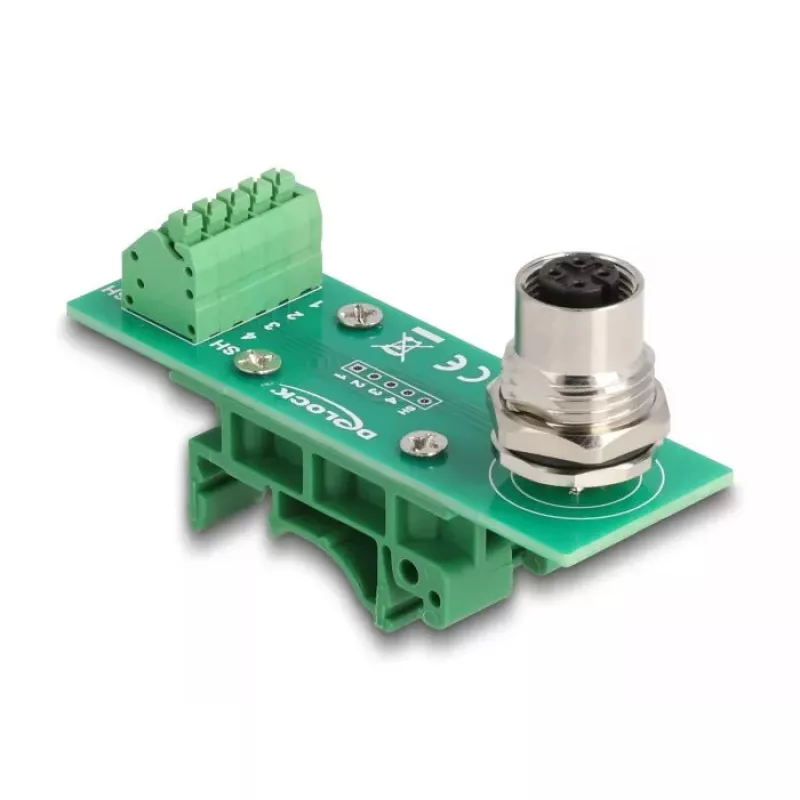

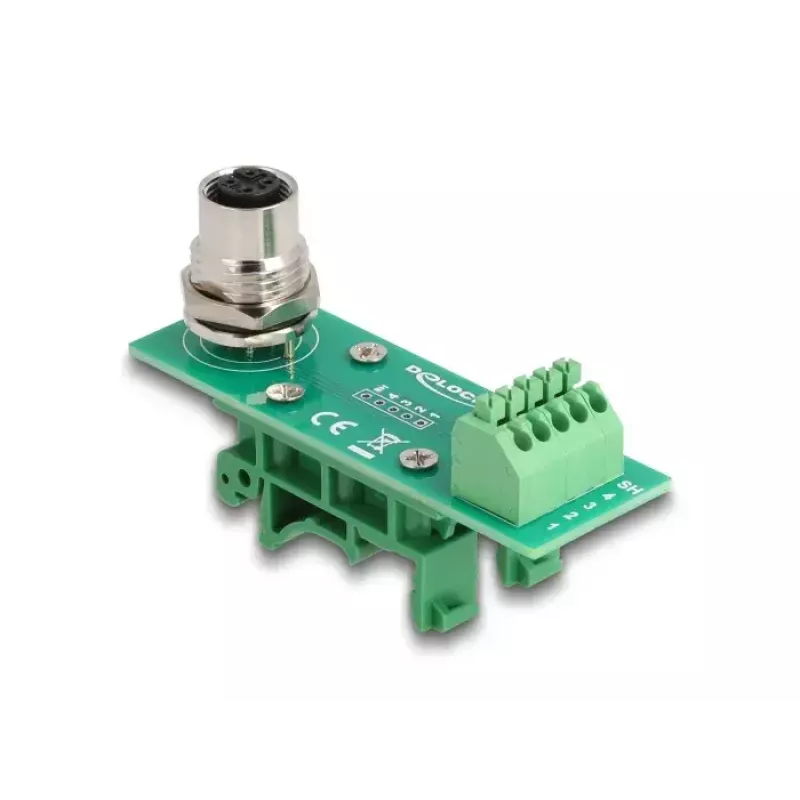

The DeLOCK M12 Transfer Module Adapter provides a secure electrical connection between devices with M12 connectors and circuits using a terminal block. It features a 4‑pin A‑coded female M12 connector and a 5‑pin terminal block, and is designed for DIN rail mounting. The adapter is compact (43 mm × 76.2 mm × 25.4 mm) and is supplied as a single green unit.

Advantages

The adapter enables straightforward conversion from an M12 4‑pin A‑coded female interface to a 5‑pin terminal block without additional cabling. Its form factor supports space-efficient installation on a 15 mm or 35 mm DIN rail using the included mounting clips. The product is intended for industrial and automation environments where a reliable, fixed connection between sensor, actuator or control wiring and terminal block wiring is needed.

Suitable for

• Industrial automation equipment requiring M12 to terminal block connections
• Building automation systems and control cabinets
• Sensors and actuators with 4‑pin A‑coded M12 connectors
• Field wiring integration onto DIN rails (15 mm or 35 mm)

Key specifications

• Brand: DELOCK
• Model / MPN: 60658
• EAN: 4043619606580
• Connector: 4‑pin A‑coded female M12 to 5‑pin terminal block
• Mounting: DIN rail (15 mm or 35 mm) with included clips
• Dimensions (W × D × H): 43 mm × 76.2 mm × 25.4 mm
• Color: Green
• Quantity: 1 piece

How to use

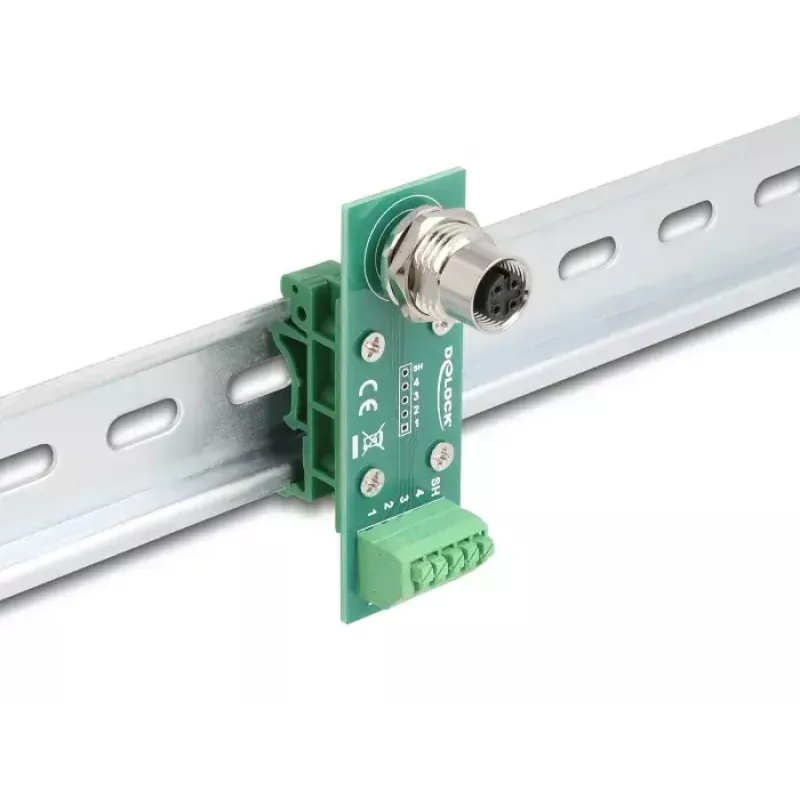

Mount the adapter onto a 15 mm or 35 mm DIN rail using the supplied clips. Connect the device cable with the 4‑pin A‑coded female M12 connector to the adapter. Insert stripped conductors into the corresponding terminals of the 5‑pin terminal block and secure them according to the terminal tightening instructions. Ensure correct pin assignment and secure connections before powering the circuit.

Recommendations

Use the adapter in dry, protected environments or within appropriately rated enclosures. Verify pinouts and wire cross‑sections for compatibility with connected devices. Tighten terminal screws to the manufacturer's recommended torque and avoid exceeding the adapter's intended current and voltage ratings.
