Conector de fios paralelo DB25 DeLOCK 66266

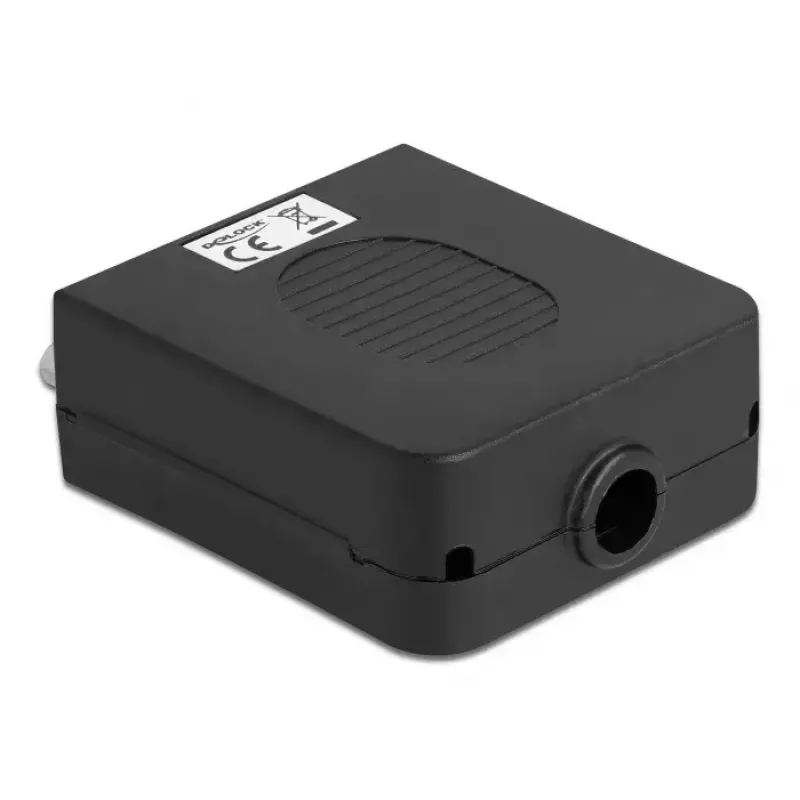

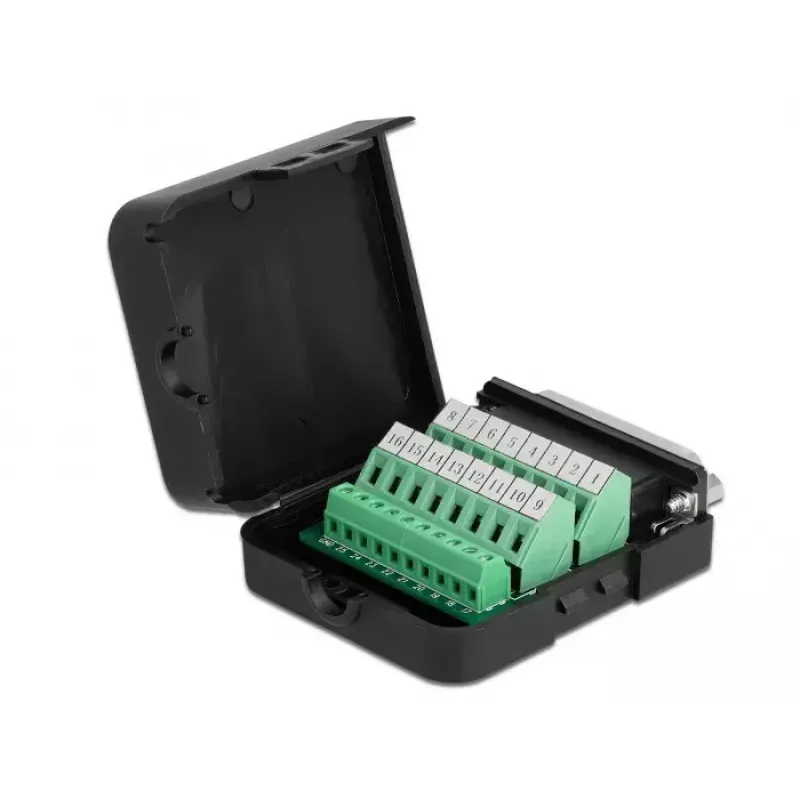

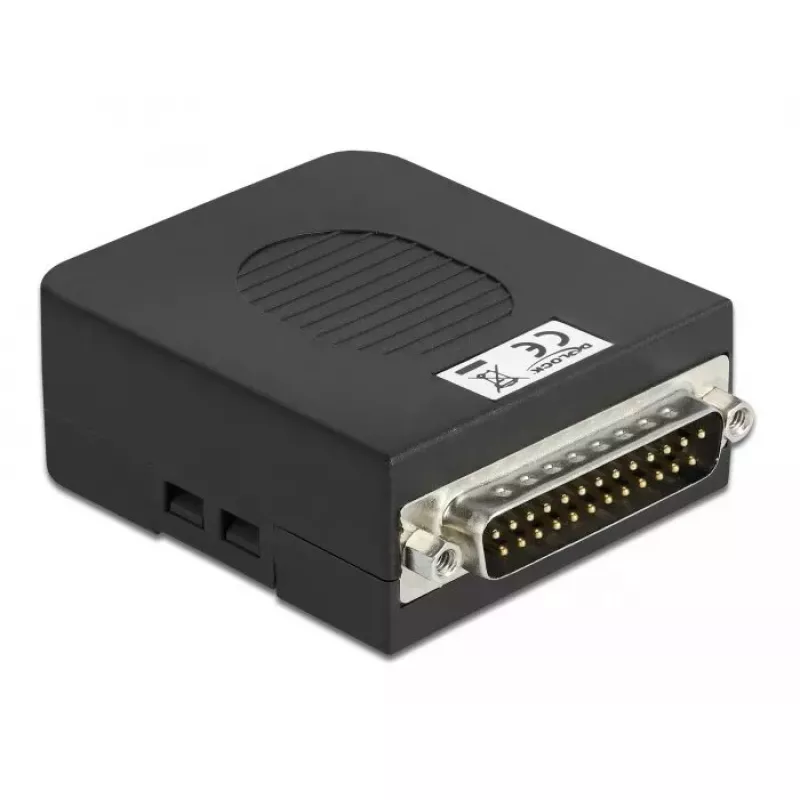

The DeLOCK 66266 wire connector is a parallel DB25 terminal block adapter with 26 screw terminals, designed to connect bare wires to a DB25 interface. Housed in a black plastic enclosure, the unit protects the printed circuit board from dirt and mechanical damage while offering integrated strain relief that secures the cable inside the housing.

Advantages

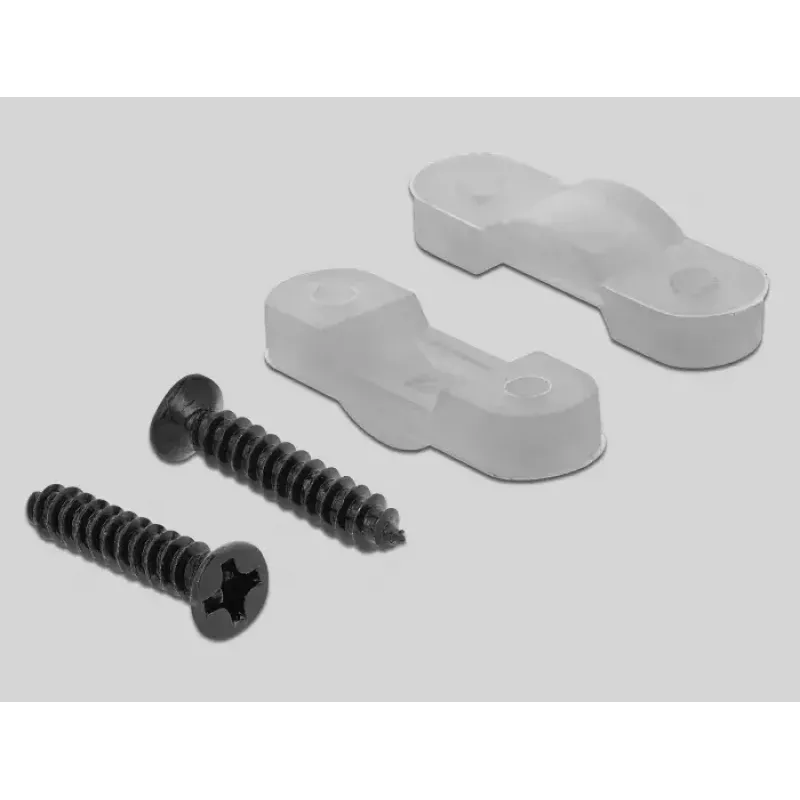

The plastic enclosure provides protection for the PCB and improves durability. The integrated strain relief prevents cable movement and reduces stress on the connections. Compact dimensions (56.4 x 64.8 x 25 mm) and a single-piece polybag packaging make the connector easy to store and install.

Suitable for

• Connecting bare wires to DB25 equipment
• Industrial control and signal wiring
• Hobby projects such as railway modelling

Key specifications

• Model: DeLOCK 66266
• Connector type: Parallel DB25
• Terminal block: 26 screw terminals
• Wire size compatibility: AWG 26–18
• Colour: Black
• Dimensions (W x D x H): 56.4 x 64.8 x 25 mm
• Packaging: 1 piece in polybag
• Brand: DELOCK
• MPN: 66266
• EAN: 4043619662661

How to use

Strip the insulation from the wire ends to the appropriate length for the screw terminals. Insert each bare conductor into the corresponding terminal and tighten the screws to secure the connection. Route the cable through the housing and position it under the integrated strain relief before closing or securing the enclosure to prevent movement and reduce mechanical stress on the contacts.

Recommendations

Ensure wires are stripped to the correct length and that screw terminals are tightened to a secure, but not excessive, torque. Use the integrated strain relief for all cables to extend connection life. Verify compatibility with device signal levels and grounding requirements before installation.
