DeLOCK D-Sub HD 44 pinos conector fêmea para régua de terminais para calha DIN 84 mm x 86 mm x 30 mm

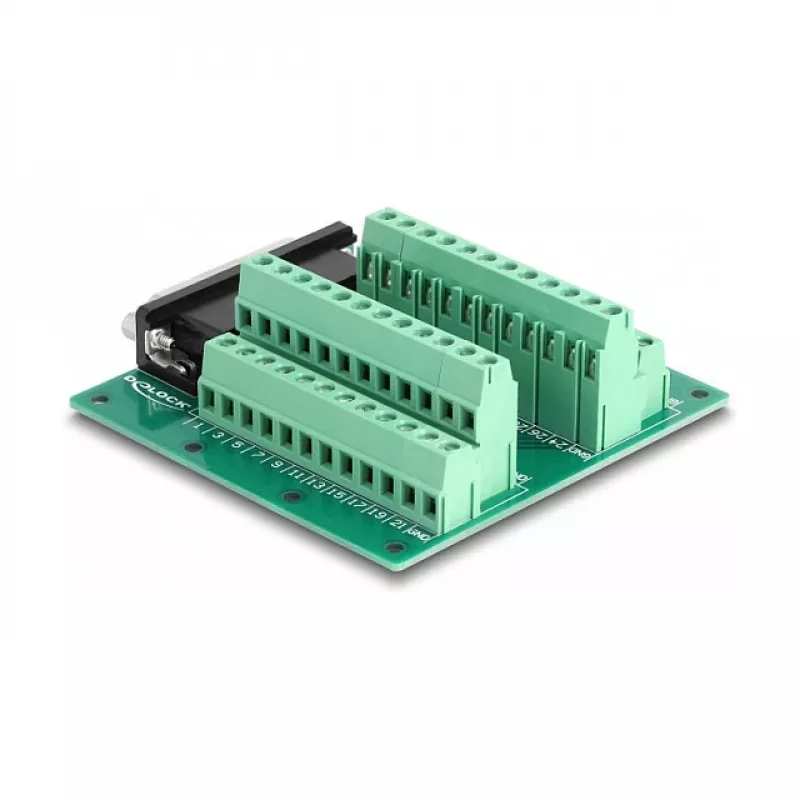

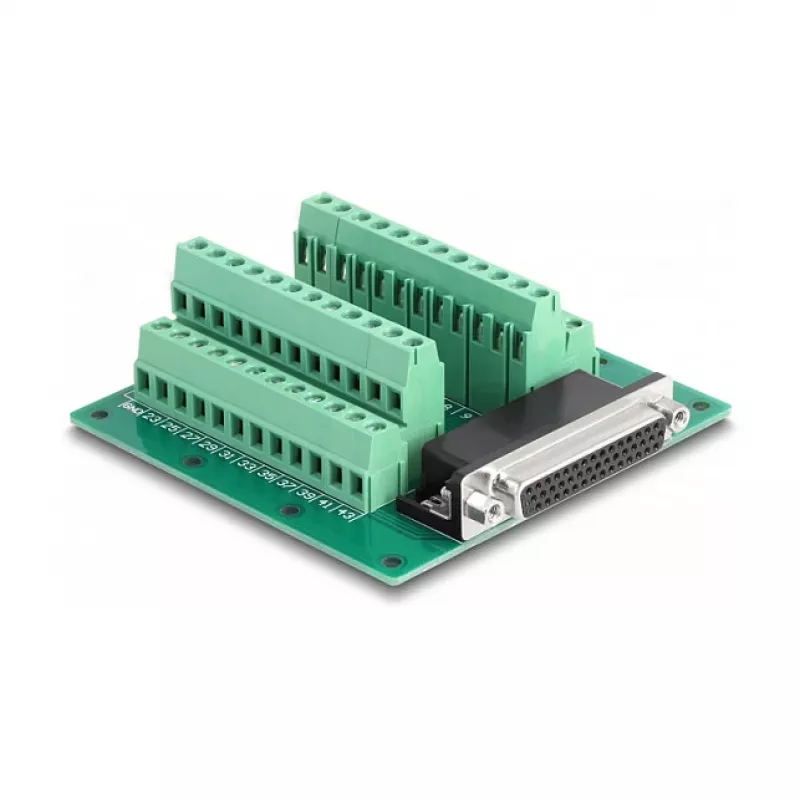

The DeLOCK D-Sub HD 44 pin female to Terminal Block is a compact adapter that converts a 44‑pin female D‑Sub HD connector to a terminal block for direct wire connections with stripped ends. It is intended for mounting on standard DIN rails and is suitable for industrial and electronic installations where a reliable, space-saving interface is required.

Advantages

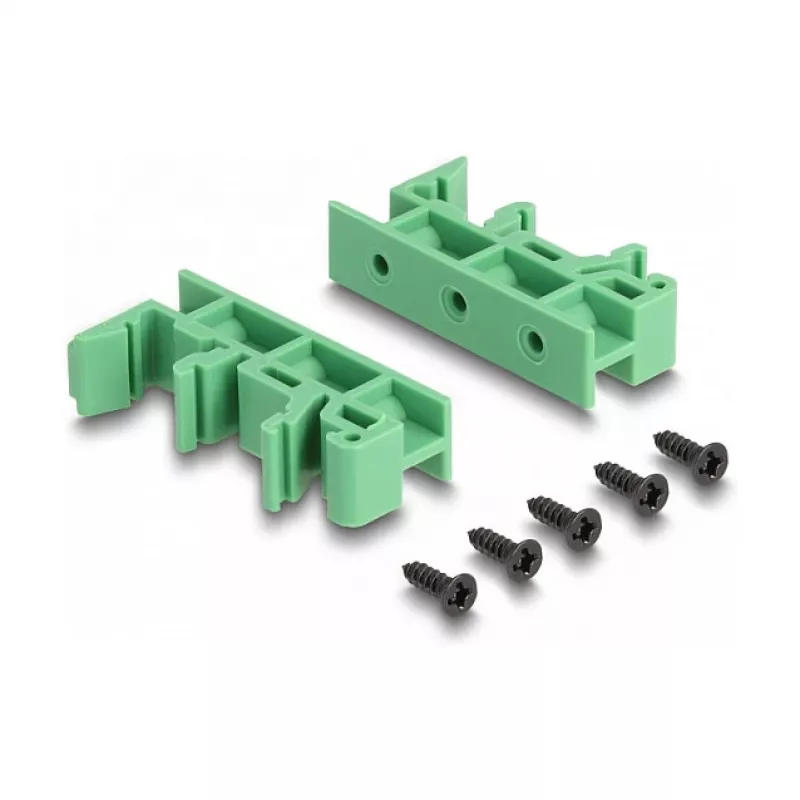

This adapter allows straightforward connection of individual wires to a D‑Sub HD 44‑pin interface without soldering, simplifying wiring and maintenance. The included mounting clips support installation on 15 mm and 35 mm DIN rails. The product’s compact dimensions (84 mm × 86 mm × 30 mm) and green colour enable easy identification and efficient use of panel space.

Suitable for

• Connecting devices with a D‑Sub HD 44‑pin female interface to individual wires
• DIN rail installations in control cabinets and industrial panels
• Prototyping, system integration and field wiring tasks

Key specifications

• Connector: D‑Sub HD 44 pin, female
• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Dimensions (W × D × H): 84 mm × 86 mm × 30 mm
• Colour: Green
• Brand: DELOCK
• MPN: 66916
• EAN: 4043619669165
• Manufactured in: China

How to use

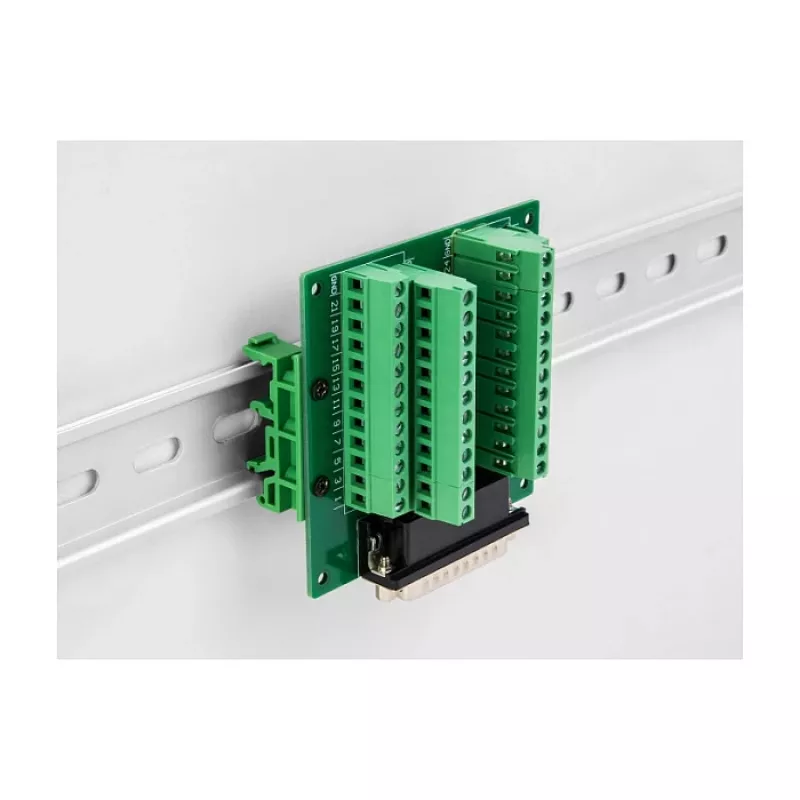

Attach the supplied clips to the adapter and snap it onto a compatible 15 mm or 35 mm DIN rail. Strip the insulation from the wire ends to the appropriate length, insert each stripped wire into the corresponding terminal point on the block, and secure them according to the terminal’s fastening method. Finally, connect the D‑Sub HD 44‑pin female connector to the mating D‑Sub port on your device or cable assembly.

Recommendations

Ensure correct pin mapping before powering the system and use proper wire gauges and secure terminations to maintain reliable electrical contact. Follow applicable installation standards and safety practices for DIN rail mounted equipment.
