InLine Tomada de parede Cat.6A de sobrepor ou embutir 2x conector fêmea RJ45 76842S

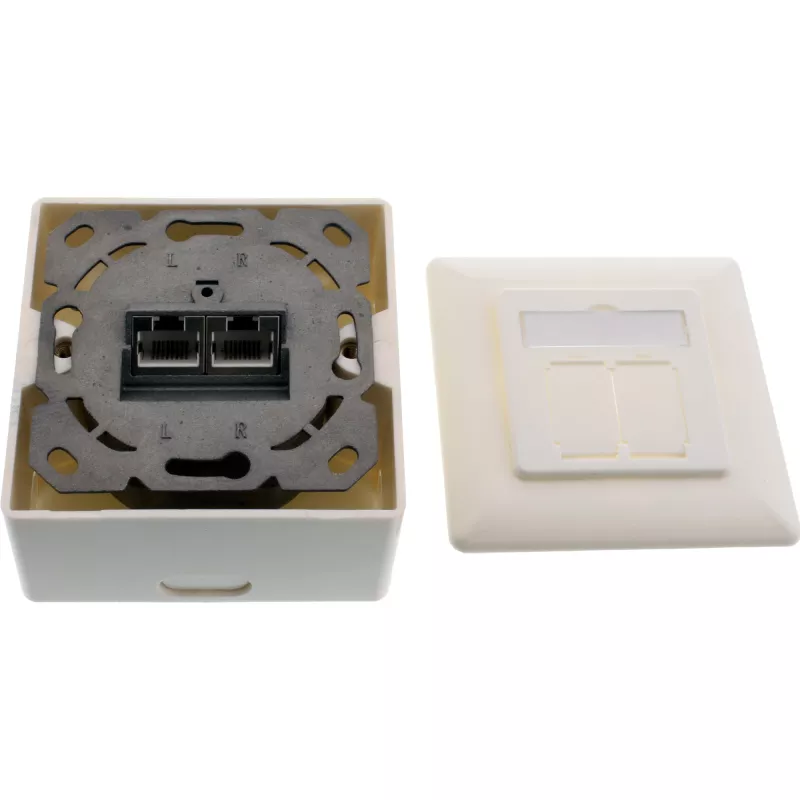

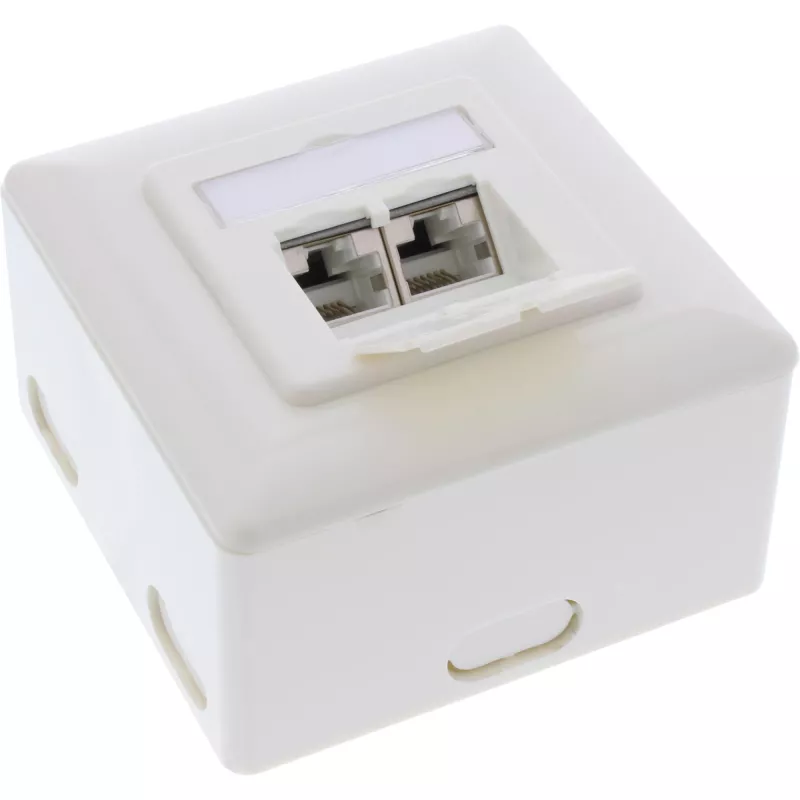

The InLine Cat.6A wall outlet box (model 76842S) is a versatile connection box for high-speed network installations. It supports surface or flush mounting and provides two shielded RJ45 sockets with internal LSA connection strips, each strip containing 8 insulation displacement connectors. The unit is fully shielded and available in white, suitable for structured cabling that requires Cat.6A performance.

Advantages

The outlet box offers support for Cat.6A data rates up to 10 Gbps and includes two RJ45 ports for connecting network devices. Its fully shielded design reduces electromagnetic interference, and the dual LSA strips simplify wiring with insulation displacement connectors. The surface or flush mount options allow flexible installation in both residential and commercial environments.

Suitable for

Key specifications

How to use

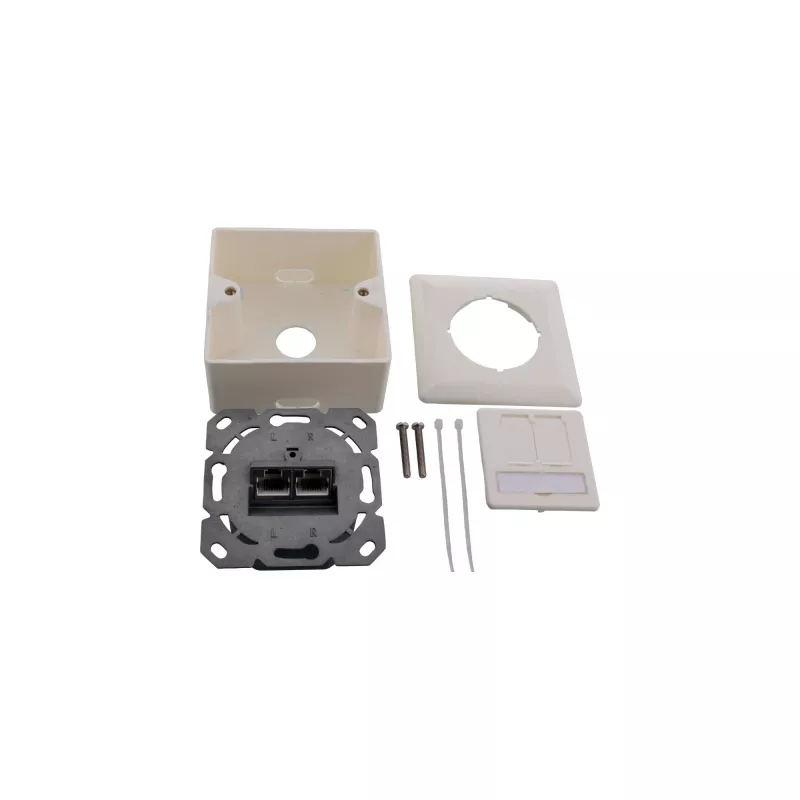

Choose surface or flush mounting according to the installation site. Route the network cable to the box, strip the outer sheath to expose conductor pairs, and terminate each conductor into the appropriate positions on the LSA insulation displacement strips. Ensure the shield continuity is maintained by connecting the cable shield to the outlet’s shield. After termination, insert the cover and secure the box in place. Test each RJ45 port with a cable tester to verify correct wiring and performance.

Recommendations

Use shielded Cat.6A cables and maintain proper grounding for the shield to ensure optimal performance. Verify compatibility with your network equipment and perform certification testing for critical installations.
