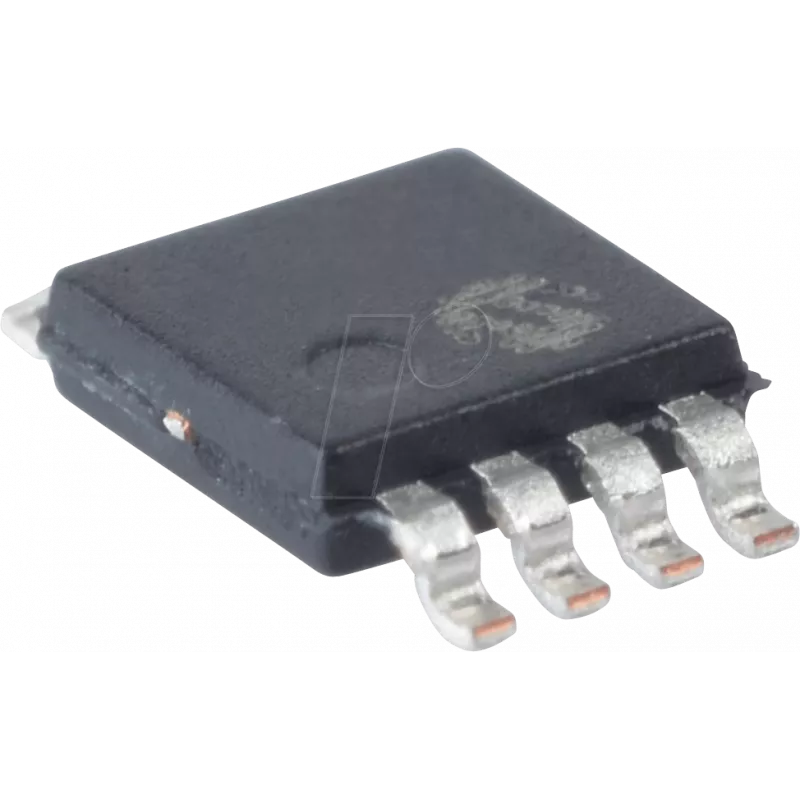

Amplificador de instrumentação Texas Instruments INA105 KU, monocanal, caixa SO-8

The Texas Instruments INA105 KU is a single-channel instrumentation amplifier in an SO-8 surface-mount package designed for precise differential signal amplification. It integrates the core functions of an instrumentation amplifier into a compact form factor suitable for PCB-mounted sensor interfaces and data acquisition front ends. The device is intended for applications that require low-noise amplification and accurate gain control of small differential voltages.

Advantages

The INA105 KU offers precise differential amplification with minimized offset and low noise suitable for sensitive measurement circuits. Its single-channel configuration and SO-8 package allow straightforward integration into space-constrained PCB layouts. The internal architecture provides stable gain and common-mode rejection, reducing the need for extensive external components while maintaining measurement accuracy.

Suitable for

• Sensor signal conditioning for strain gauges, thermocouples, and bridge sensors
• Data acquisition front ends and instrumentation systems
• Low-noise laboratory and industrial measurement circuits

Key specifications

• Topology: single-channel instrumentation amplifier
• Package type: SO-8 surface-mount
• Function: differential signal amplification with adjustable gain
• Low-noise performance suitable for precision measurements
• High common-mode rejection for robust differential measurement

How to use

Place the INA105 KU on the PCB following recommended footprint and thermal considerations for SO-8 packages. Connect the differential input signals to the amplifier input pins and provide appropriate supply rails as required by the amplifier architecture. Set the amplifier gain according to the application by using the external gain resistor or configured network as specified in the device datasheet. Ensure proper decoupling of supply rails and routing of input traces to minimize noise and preserve common-mode rejection.

Recommendations

For best results, follow the manufacturer's datasheet guidelines for gain resistor selection, input and output filtering, and decoupling. Route differential inputs as matched impedance pairs, keep analog ground returns separate from digital returns where possible, and use short traces to reduce interference. Validate performance in the intended operating environment, especially when measuring very small differential signals.
