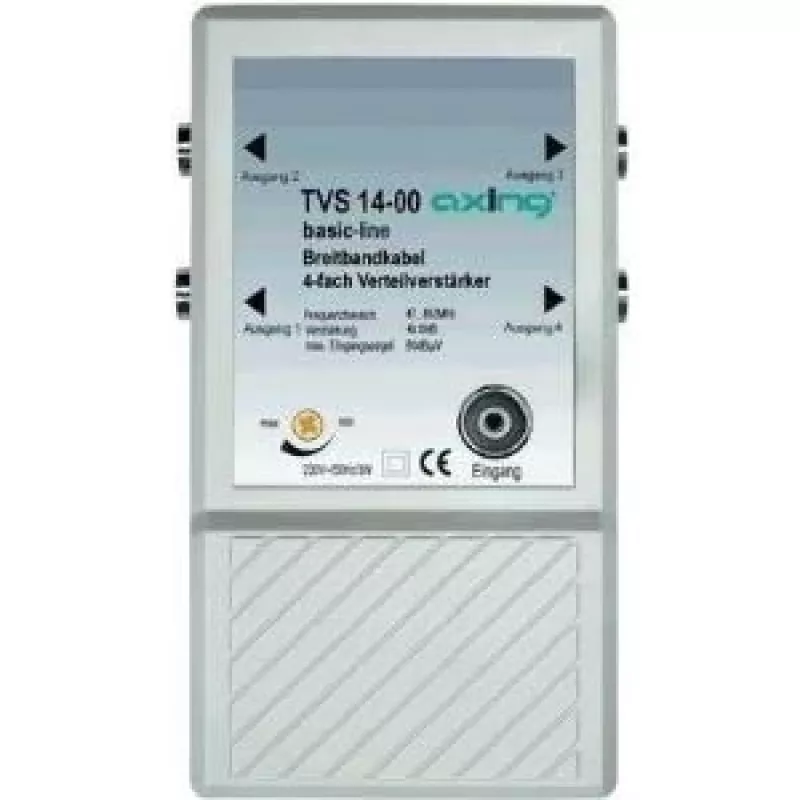

Amplificador de sinal de TV Axing TVS014001

The Axing TVS014001 is a compact TV signal amplifier for small CATV networks, offering four-way distribution to improve television reception. It uses IEC connectors and is powered from a 230 V AC supply with a nominal power consumption of 3 W. The unit's compact dimensions (80 mm × 140 mm × 60 mm) allow flexible installation in home or small professional setups.

Advantages

The amplifier provides four-way signal distribution and stable amplification for small cable TV networks. IEC connectors ensure straightforward connection to existing coaxial cabling. Low power consumption and a compact housing make the device suitable for confined installation spaces while maintaining consistent TV signal quality.

Suitable for

• Small CATV networks
• Home installations requiring four-way signal splitting
• Apartment buildings or small commercial premises with limited cabling

Key specifications

• Model: Axing TVS014001 (MPN: TVS 14)
• Distribution: 4-way
• Connectors: IEC
• Power supply: 230 V AC
• Power consumption: 3 W
• Dimensions (W × D × H): 80 × 140 × 60 mm
• EAN: 4016138506228

How to use

Install the amplifier inline with the incoming CATV coaxial feed and connect the four IEC output connectors to downstream TV or distribution cables. Ensure the unit is connected to a 230 V AC outlet. Position the amplifier in a dry, ventilated location and follow any local installation rules for cable routing and grounding. Verify signal levels on connected receivers and adjust network layout if needed.

Recommendations

Use the Axing TVS014001 in small cable TV networks where a four-way distribution and modest amplification are required; avoid placing the unit in areas with excessive heat or moisture and verify connector compatibility before installation.
