Amplificador interior de banda larga Alcad AI-200 VHF-UHF 1 entrada 2 saídas

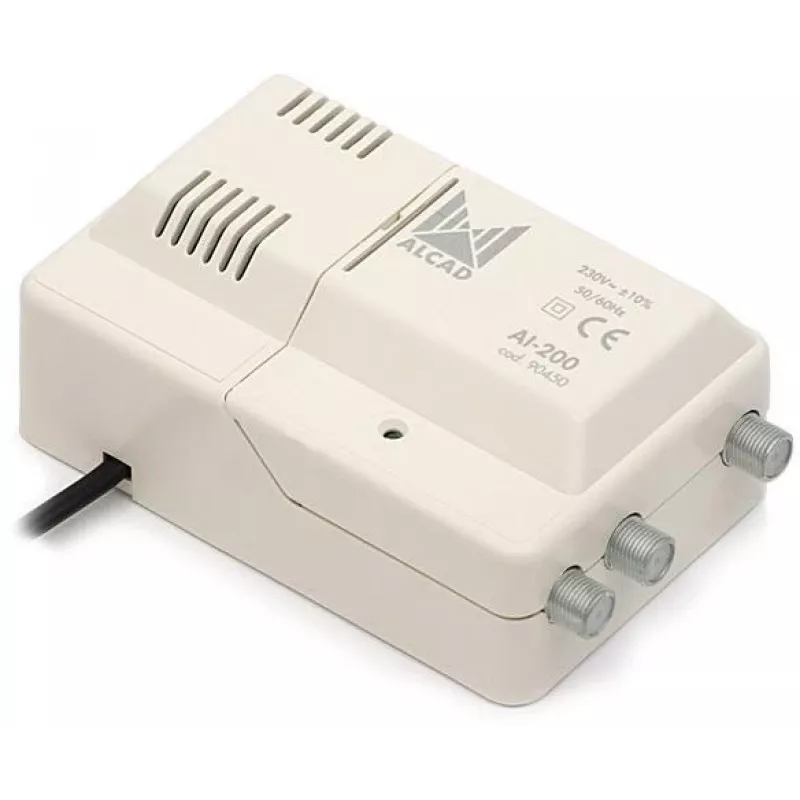

The Alcad AI-200 is a high-performance broadband indoor amplifier designed for VHF and UHF signal distribution. With a single input and two outputs, it ensures reliable signal amplification for TV and radio frequencies, making it ideal for home and small installation environments.

Advantages

This amplifier delivers 20 dB gain on both VHF and UHF bands, with an adjustable gain range of 0-15 dB to fine-tune signal levels. Its low noise figure (4.5 dB VHF, 5.5 dB UHF) ensures minimal signal degradation, while the high shielding factor (>100 dB) protects against interference. The compact design and F-type connectors simplify installation.

Suitable for

• Indoor TV signal distribution in residential or small commercial settings
• Boosting weak VHF/UHF signals from antennas
• Systems requiring one input and two output ports

Key specifications

• Frequency Range: VHF 47-254 MHz, UHF 470-862 MHz
• Gain: 20 dB (VHF and UHF)
• Gain Adjustment: 0-15 dB
• Noise Figure: 4.5 dB (VHF), 5.5 dB (UHF)
• Max Output Level: 105 dBµV (DIN 45004B)
• Inputs/Outputs: 1 input, 2 outputs
• Impedance: 75 Ohm
• Connector: F-type
• Power Supply: 230V AC, 50/60 Hz, 3.5 W
• Operating Temperature: -5 to +45 °C

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. This amplifier is designed for indoor use only and should be installed in a dry, ventilated area.
