Amplificador operacional Texas Instruments OPA703PA PDIP-8 CI linear de precisão de baixo ruído

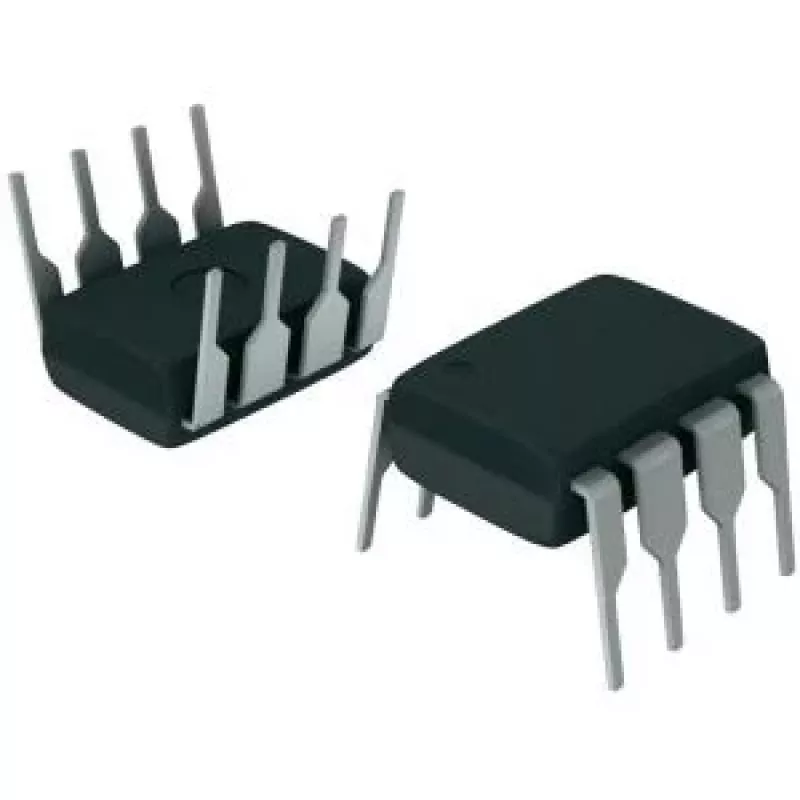

TEXAS INSTRUMENTS OPA703PA is a single-supply operational amplifier in a PDIP-8 package engineered for precision linear signal processing. The device offers low input noise and accurate amplification performance suitable for compact board designs that require DIP mounting. It supports common analog tasks such as gain stages, active filters, and signal conditioning where low-noise and stable linear response are important.

Advantages

The amplifier provides low input noise and precision linearity across its operating range, enabling cleaner signal amplification in sensitive circuits. Its PDIP-8 through-hole package simplifies prototyping and replacement on legacy boards. Single-supply operation and predictable offset and drift characteristics reduce the need for complex biasing, while the device’s bandwidth and open-loop gain deliver reliable performance in moderate-frequency applications.

Suitable for

• Sensor interfaces and transducer signal conditioning
• Precision gain stages and buffer amplifiers
• Active filtering in audio and instrumentation circuits
• Prototype boards and through-hole hobbyist projects

Key specifications

• Package type: PDIP-8 through-hole
• Supply configuration: single-supply operation
• Low input noise optimized for precision applications
• Precision linear amplification with low offset and drift
• Suitable bandwidth for general-purpose analog signal processing

How to use

Install the PDIP-8 amplifier into a compatible socket or solder it into a through-hole PCB footprint following the standard pinout for single op amp packages. Provide the recommended single-supply voltage and proper bypassing on the power pins to minimize noise. Configure the amplifier in the desired topology—non-inverting, inverting, buffer, or active filter—using external resistors and capacitors chosen to set gain and bandwidth according to your circuit requirements. Observe common analog layout practices: keep signal traces short, place decoupling capacitors close to supply pins, and route sensitive inputs away from digital lines.

Recommendations

For best results, use a low-noise power supply and decoupling capacitors (ceramic 0.1 µF close to the supply pins) to minimize supply-induced noise. Match resistor values and select low-noise, low-drift components for critical feedback networks. When prototyping, use an IC socket to allow easy replacement and to prevent heat stress during soldering.
