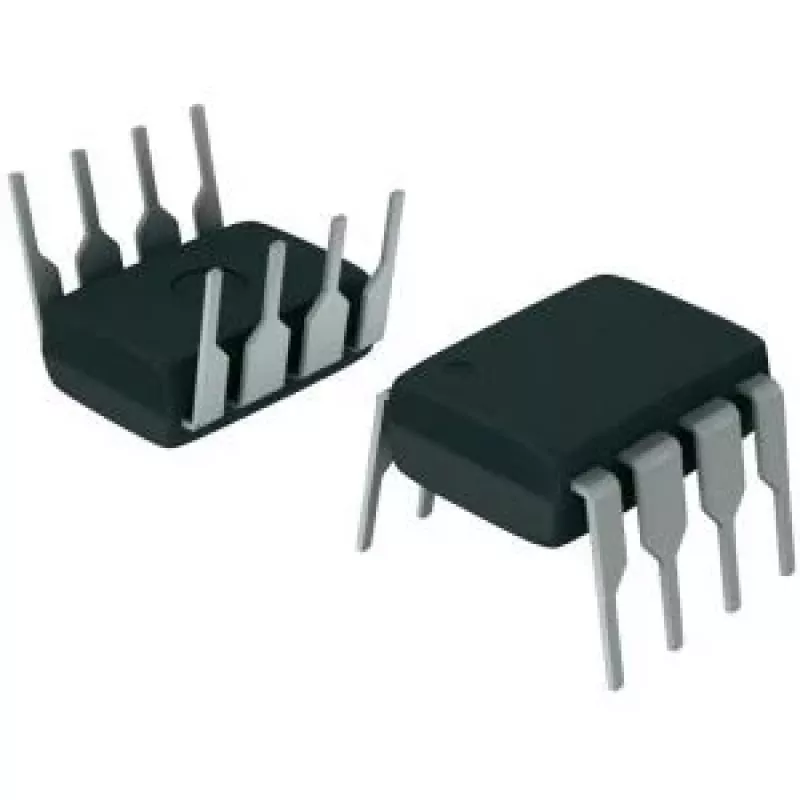

CI de potência regulador Texas Instruments LM2594N-5.0/NOPB — regulador DC/DC de comutação fixo 5,0 V (PMIC)

Texas Instruments LM2594N-5.0 is a fixed 5.0 V switching DC/DC step-down regulator (PMIC) designed to convert higher input voltages to a stable 5 V output with high efficiency. The device integrates a switching transistor, compensation network and thermal protection to simplify power-supply designs for embedded systems, industrial control modules, consumer electronics and battery-powered equipment requiring a regulated 5 V rail.

Advantages

The LM2594N-5.0 provides efficient step-down conversion with a fixed 5 V output, reducing power dissipation compared to linear regulators. Its integrated switching elements and compensation network minimize external component count and PCB area. The regulator includes built-in thermal shutdown and current limiting for improved system protection, and it supports a wide input voltage range suitable for many single-rail power sources. These characteristics make it suitable for designs that demand reliable 5 V regulation and compact power stages.

Suitable for

• Embedded system power supplies that require a stable 5 V rail
• Industrial control circuits and automation modules
• Consumer electronics such as routers, set-top boxes and peripherals
• Battery-powered devices where efficient step-down conversion is needed

Key specifications

• Output voltage: fixed 5.0 V
• Topology: step-down (buck) switching regulator
• Integrated switching transistor and compensation network
• Protection features: thermal shutdown and current limiting
• Typical usage: point-of-load regulation for digital and analog circuits

How to use

Place the LM2594N-5.0 on the PCB following the manufacturer’s recommended footprint and layout guidelines to ensure adequate thermal dissipation and minimized switching noise. Select the inductor, input and output capacitors according to the regulator’s datasheet to meet transient response and output ripple requirements. Connect the input to a higher-voltage rail within the supported input range, and route the regulated 5 V output to the load with proper decoupling. Observe polarity and grounding best practices and verify the output under expected load conditions before final deployment.

Recommendations

Use low-ESR capacitors and a recommended inductor value to achieve stable operation and low output ripple. Place input capacitors close to the regulator input pins and route switching traces with short, wide connections to reduce EMI. Verify thermal performance in your enclosure and, if necessary, provide additional copper area or heat sinking. Test the regulator with the expected load profile to confirm regulation, efficiency and protection behavior.
