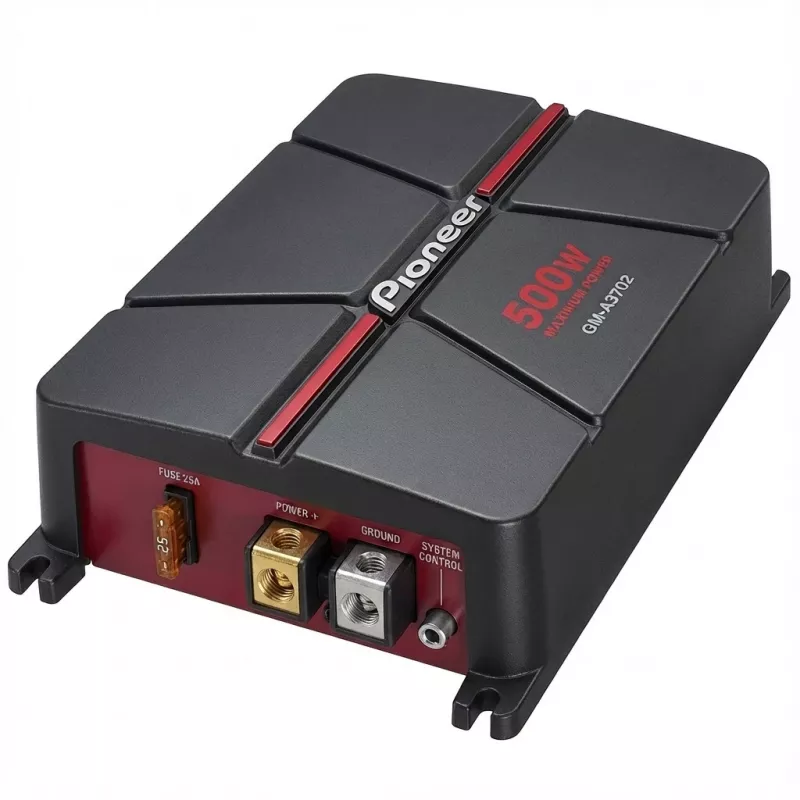

Amplificador para automóvel Pioneer GM-A3702 2 canais 500 W A/B

The Pioneer GM-A3702 is a compact 2-channel car audio amplifier delivering up to 500 W peak output in a Class A/B design. With dimensions of 246 mm × 180 mm × 60 mm and a black-and-red finish, it is built for flexible installation in a variety of vehicle cabins while aiming to improve sound quality compared with earlier models in the GM series.

Advantages

The GM-A3702 combines a Class A/B topology for enhanced audio fidelity with a space-efficient chassis that supports installation in tight locations. It integrates automatic input signal sensing and turn-on functionality, so the amplifier detects whether the source uses RCA or speaker-level inputs and powers up in sync with the receiver. The compact footprint and efficient power delivery provide a balance between performance and installation flexibility.

Suitable for

• Upgrading a factory car audio system to improved amplification
• Driving a pair of component or coaxial speakers in medium-power setups
• Installations where compact amplifier size is required

Key specifications

• Channels: 2 (stereo)
• Amplifier class: A/B
• Maximum output power: 500 W (peak)
• Dimensions (W × D × H): 246 mm × 180 mm × 60 mm
• Colour: Black, Red
• Brand / MPN: PIONEER / Pioneer GM-A3702
• EAN: 4988028340154

How to use

Mount the amplifier in a ventilated location using the provided mounting points and ensure secure wiring to the vehicle chassis for grounding. Connect the receiver to the amplifier using RCA cables when RCA outputs are available; if the source lacks RCA outputs, connect speaker-level inputs using the speaker wires. Power the unit by connecting the main 12 V power and remote turn-on lead to the vehicle battery and receiver respectively. Adjust gain and crossover settings on the amplifier to match speaker sensitivity and the desired frequency response before listening at normal volume levels.

Recommendations

Use correct wire gauges for power, ground, and speaker connections, and verify secure, corrosion-free battery and chassis connections. When integrating with an OEM receiver, allow the amplifier’s automatic signal sensing to select the proper input mode; if noise or turn-on chirps occur, check grounding points and route power cables separately from signal cables.
