Analisador e gerador de sinal HDMI Lindy HDMI 2.0 18G

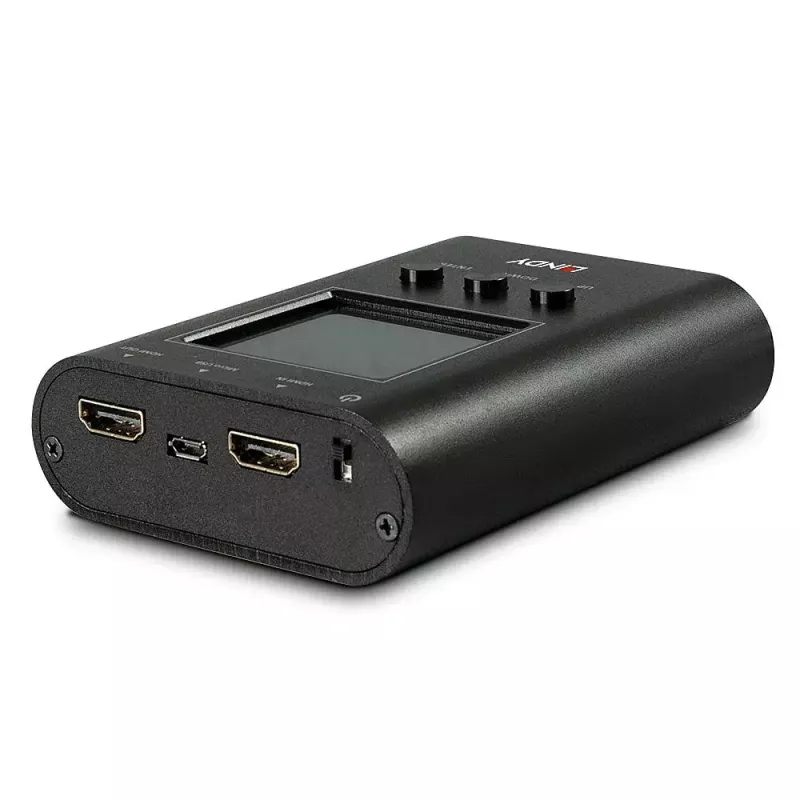

The Lindy HDMI 2.0 18G Signal Analyser and Generator is a compact handheld tool for testing and generating HDMI 2.0 signals. It supports up to 4K@60Hz with HDR and 18G bandwidth, provides an on-screen LCD readout of signal parameters and is suitable for both residential and commercial AV installations. The unit measures 130mm x 89mm x 14mm and is designed for portable field use.

Advantages

This device combines a pattern generator and signal analyser in one compact unit, allowing installers to generate test patterns and to read incoming HDMI signal information such as resolution, frame rate and HDCP version. It includes a cable test mode to verify cable capability up to HDMI 2.0 18G and displays results on a clear LCD. Its small size and portability make it easy to carry in an installer’s toolkit, and the product is covered by a 2 year warranty.

Suitable for

• Testing and troubleshooting HDMI sources and displays
• Verifying HDMI cable performance up to 18G
• Checking compatibility of displays with 4K@60Hz and HDR
• Field installation and maintenance for AV systems
• Testing setups with HDMI extenders and matrices

Key specifications

• Model: Lindy HDMI 2.0 18G Signal Analyser and Generator (MPN 32675, EAN 4002888326759)
• HDMI version: HDMI 2.0
• Maximum bandwidth: 18G
• Maximum output: 4K@60Hz with HDR support
• Functions: Pattern generator, Signal analyser (Sink), Cable tester

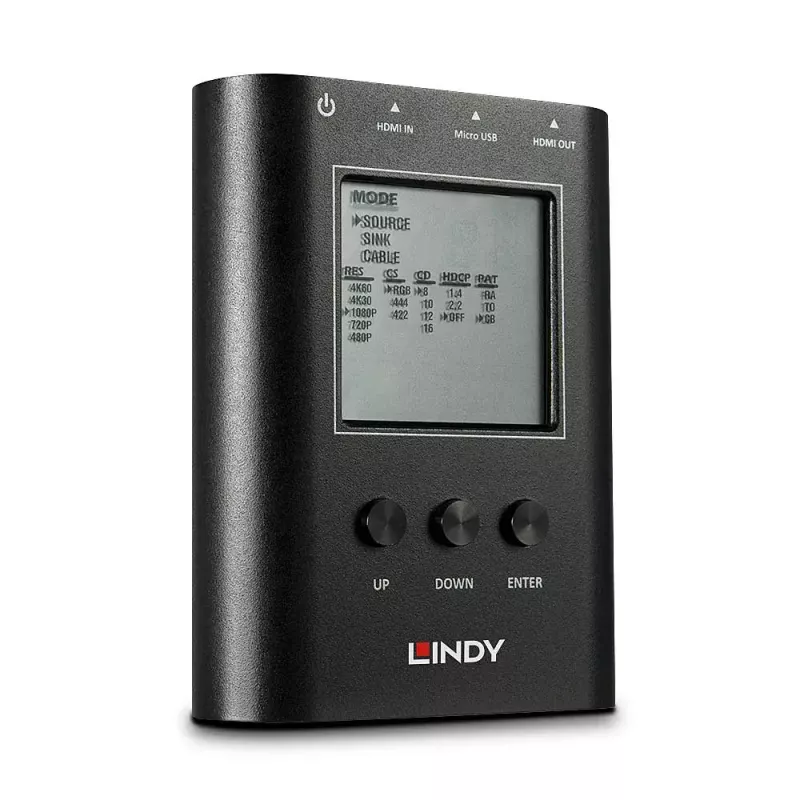

• Display: Built-in LCD showing resolutions, frame rates, HDCP versions and cable status
• Dimensions: 130 x 89 x 14 mm
• Warranty: 2 years

How to use

Connect the Lindy unit between a source and a display or directly to a source depending on the test. Use the pattern generator mode to output test patterns and verify a display’s maximum resolution and colour depth. Use Sink mode to read incoming signal parameters from a source device to identify resolution, frame rate and HDCP information. Use Cable mode to test HDMI cables for bandwidth capability and condition. Read the results on the built-in LCD and follow any on-screen indicators to isolate issues.

Recommendations

For reliable results, ensure source and display devices are set to the intended resolution and HDR settings before testing. When testing cables, test at the highest expected resolution and frame rate (for example 4K@60Hz) to confirm 18G capability. Store the device in a protective pouch to avoid damage during transport.
