Anel adaptador para parede oca Kaiser 9060-42 68/73 mm para caixas de parede oca 68 mm

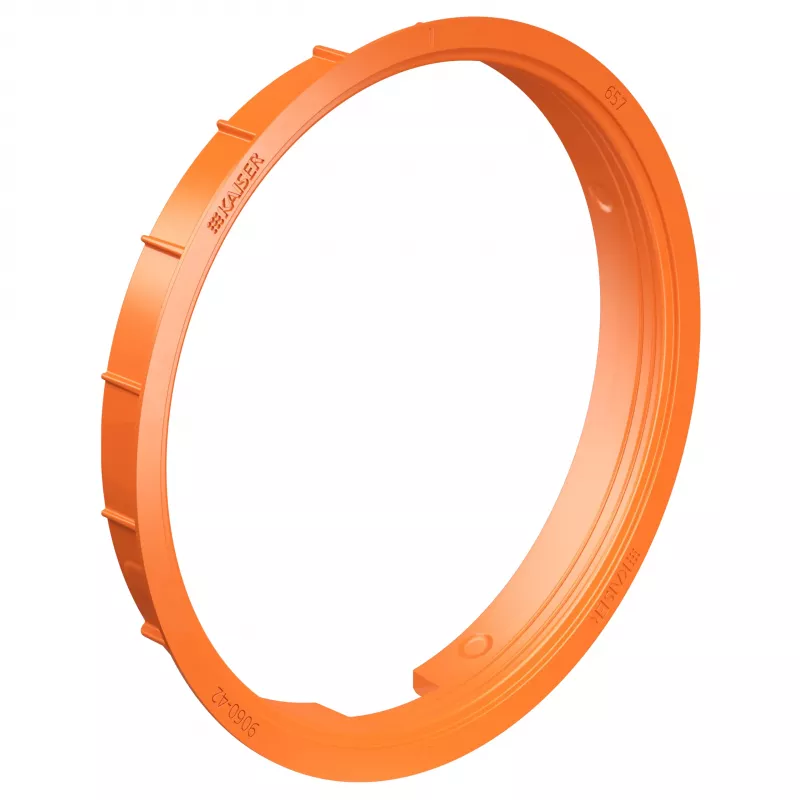

The Kaiser Hohlwand Adapter Ring 9060-42 is a high-quality accessory designed for cavity wall installations. It allows depth compensation and adaptation of standard 68 mm cavity wall boxes to a larger outer diameter of 73 mm, providing a secure and professional finish. Manufactured by Kaiser Elektro, a trusted brand in electrical installation, this adapter ring is made from halogen-free, flame-retardant polypropylene, ensuring safety and durability. Its snap-on/clip-on mounting makes installation quick and tool-free. Ideal for indoor use, the ring is UV-resistant and temperature-resistant from -5 °C to +60 °C, complying with DIN EN 60670-1.

Advantages

This adapter ring offers several benefits: it increases installation depth by 12 mm, compensates for uneven wall surfaces, and provides a secure fit for cavity wall boxes. The insulating properties enhance safety, while the orange colour ensures easy identification. The halogen-free material reduces toxic smoke in case of fire, and the flame-retardant rating adds an extra layer of protection.

Suitable for

• Cavity wall installations requiring depth compensation
• Adapting 68 mm cavity wall boxes to 73 mm outer diameter
• Indoor electrical installations in dry environments
• Use with Kaiser Hohlwand-Programm series products

Key specifications

• Product Type: Adapter Ring
• Application: Cavity Wall Installation
• Compatible Box Diameter: 68 mm
• Outer Diameter: 73 mm
• Inner Diameter: 68 mm
• Added Installation Depth: 12 mm
• Material: Plastic (Polypropylene)
• Material Properties: Halogen-free
• Flame Retardant: Yes
• Color: Orange
• Mounting Type: Snap-on / Clip-on
• Function: Depth compensation, Box adaptation
• Insulation: Insulating
• Temperature Resistance: -5 °C to +60 °C
• UV Resistance: No (for indoor use)
• Standard Compliance: DIN EN 60670-1
• Manufacturer Series: Kaiser Hohlwand-Programm
• Packaging Unit: 1 piece

Recommendations

For optimal results, use this adapter ring with Kaiser cavity wall boxes and ensure the wall opening is clean and debris-free. The snap-on mechanism provides a secure hold; no additional tools are required. Suitable for dry indoor environments only.
