Ângulo plano OBO Bettermann GK-F70170RW branco puro 70x170mm 6274720

90° flat angle for OBO Bettermann GK cable trunking, 70 mm height × 170 mm width, pure white (RAL 9010) PVC, clip-on mounting.

Overview

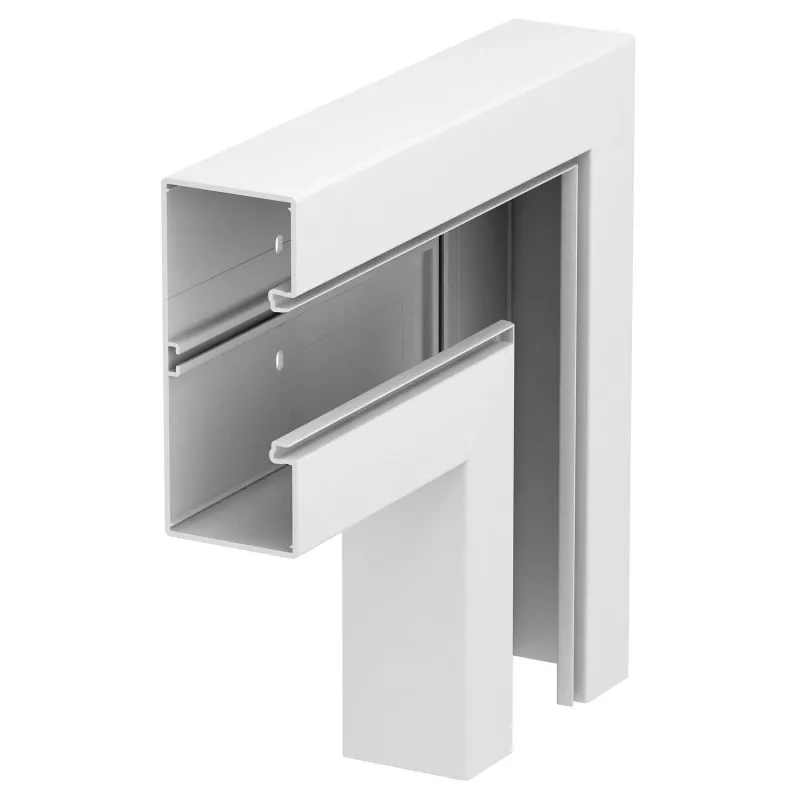

The OBO Bettermann Flat Angle GK-F70170RW is a corner piece designed for the GK cable trunking system. It enables clean 90° direction changes in trunking runs with a height of 70 mm and width of 170 mm. The component is made from PVC and comes in pure white (RAL 9010), matching the trunking profile for a seamless appearance.

What stands out

• 90° angle for precise corner transitions
• Compatible with 70 mm high and 170 mm wide GK trunking
• Clip-on / push-fit mounting for quick installation
• Self-extinguishing PVC material
• Includes lid for lidded trunking system

Technical details

• Material: PVC
• Colour: Pure White (RAL 9010)
• Temperature range: -5 to +60 °C
• Halogen-free: No
• UV-resistant: No
• Self-extinguishing: Yes
• Mounting method: Clip-on / Push-fit
• With lid: Yes
• Standard: EN 50085-1

Our verdict

A reliable corner piece that ensures neat and professional cable routing in OBO GK trunking installations.
