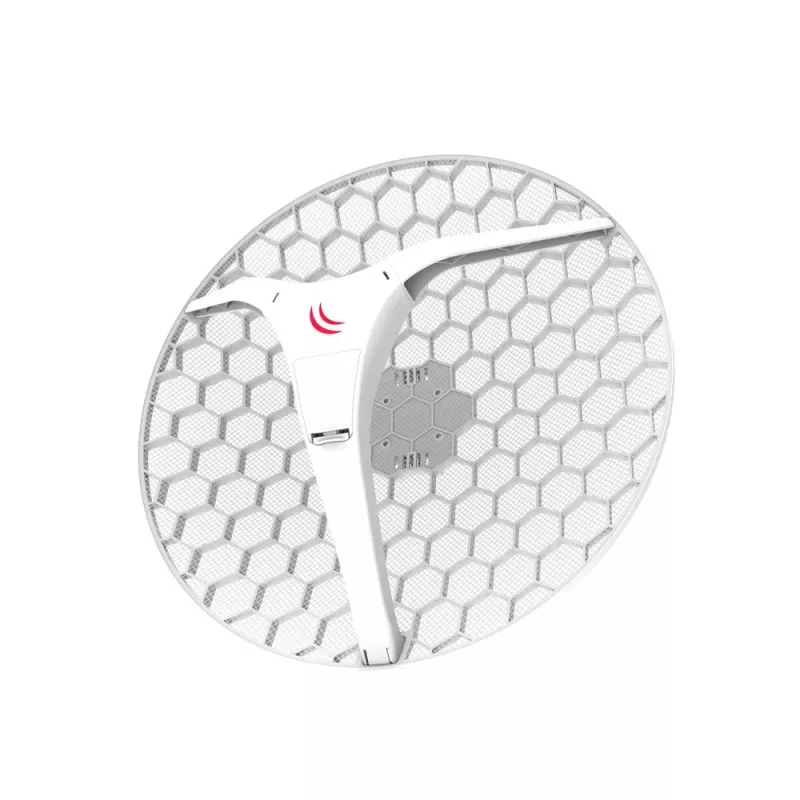

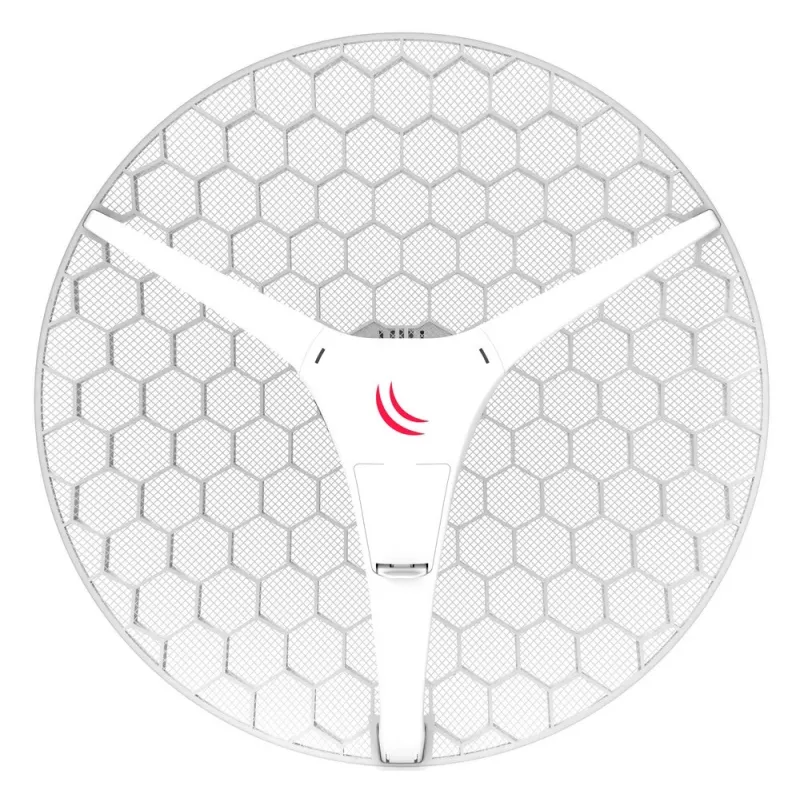

Antena de rede MikroTik LHG XL HP5 27,5 dBi 5 GHz dupla polarização, PoE, 245 mm de altura, 55 cm de diâmetro

The MikroTik LHG XL HP5 is an outdoor 5 GHz network antenna with 27.5 dBi gain and dual polarization, intended for long-range point-to-point or point-to-multipoint wireless links. The unit features a compact, rugged white housing with a height of 245 mm and a diameter of 550 mm, and it operates via Power over Ethernet with a maximum power consumption of 7 W. Its lightweight construction simplifies mounting while maintaining resistance to shock and vibration for reliable signal transmission in outdoor installations.

Advantages

The antenna provides high gain (27.5 dBi) and dual polarization to improve link reliability and throughput over long distances. Its compact parabolic design and light weight make installation and alignment easier on masts and poles. Built for outdoor use, the housing is shock resistant and vibration proof. Power over Ethernet operation reduces cabling complexity and supports remote deployment with low power consumption.

Suitable for

• Long-range point-to-point wireless links
• Point-to-multipoint outdoor networks
• Rural broadband and backhaul connections
• Wireless links requiring compact, lightweight antennas

Key specifications

• Frequency band: 5 GHz
• Antenna gain: 27.5 dBi
• Polarization: dual (dual polarization)
• Power: Power over Ethernet (PoE), max consumption 7 W
• Dimensions: height 245 mm, diameter 550 mm
• Weight: 0.945 kg
• Colour: white

How to use

Mount the antenna on a suitable mast or pole, align it toward the remote station for optimal signal strength, and connect it to a PoE injector or PoE-capable switch to provide power and data over a single Ethernet cable. Perform fine alignment while monitoring link quality metrics to maximize throughput and stability. Ensure connectors and mounting hardware are secured and weatherproofed according to site conditions.

Recommendations

For best long-range performance, mount the MikroTik LHG XL HP5 above nearby obstacles with a clear line of sight to the remote endpoint, use quality Ethernet cabling rated for outdoor use, and verify PoE power budget of your supply to accommodate the antenna's maximum 7 W consumption.
