Antena de rede Poynting XPOL-24 SMA, dual-band 0,617–0,96 e 1,71–4,2 GHz, ganho 11 dBi, 50 Ω, ficha SMA

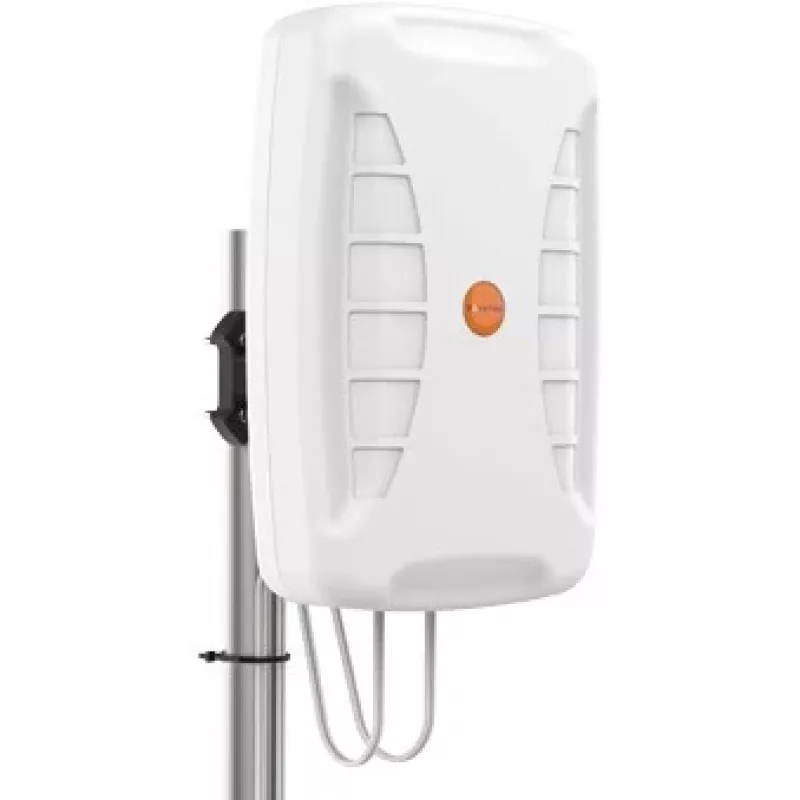

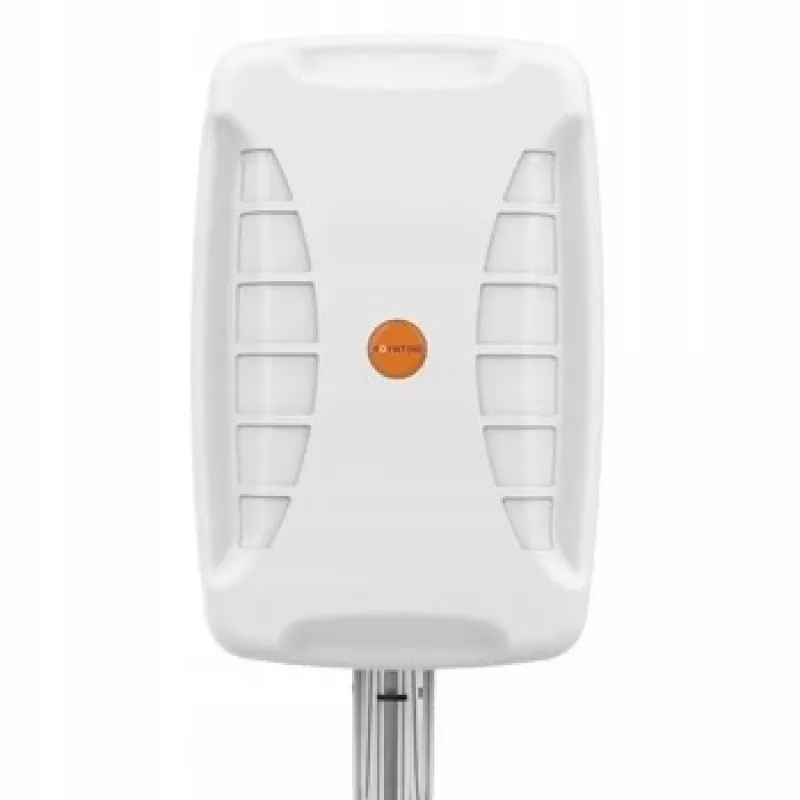

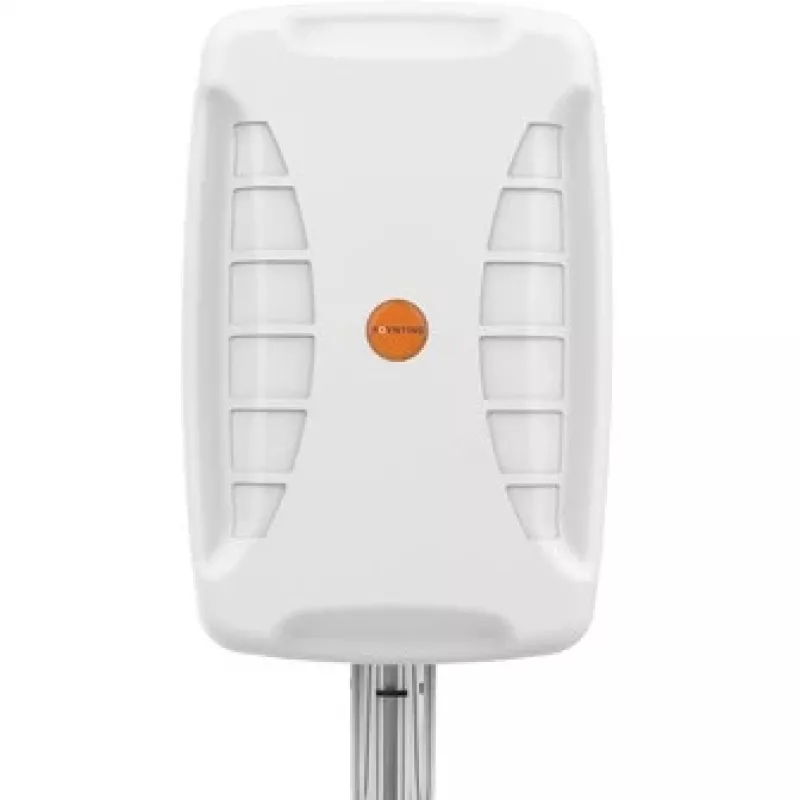

Poynting XPOL-24 SMA is a dual-band network antenna designed for mobile signal enhancement, M2M applications and fixed wireless links. It covers wide frequency ranges from 0.617–0.96 GHz and 1.71–4.2 GHz, offers up to 11 dBi peak gain and a 50 Ω impedance, and uses an SMA male connector for straightforward connection to compatible equipment. The antenna integrates metamaterial technology and an Artificial Magnetic Conductor (AMC) to deliver improved bandwidth and consistent gain across current and emerging 5G and LTE bands while keeping a compact form factor (290×110×444 mm).

Advantages

The XPOL-24 provides wideband coverage across multiple cellular bands and supports 4x4 MIMO capability, improving throughput and reliability in carrier aggregation scenarios. Its advanced metamaterial design and AMC enhance performance without substantially increasing size. The enclosure is built to resist weather, dust and vandalism and is rated for outdoor installation, while the SMA male interface and DC power input simplify deployment and integration into existing network setups.

Suitable for

• Outdoor and indoor mobile signal improvement for LTE and 5G networks
• Machine-to-Machine (M2M) connectivity and IoT gateways
• Fixed wireless access links and point-to-point or point-to-multipoint installations
• Carrier aggregation and multi-antenna (4x4 MIMO) deployments
• Installations on poles or walls in both urban and rural environments

Key specifications

• Frequency bands: 617–960 MHz and 1710–4200 MHz (wideband coverage)
• Supported bands within range: 617–960, 1710–2170, 2300–2700, 3400–4200 MHz
• Peak gain: up to 11 dBi
• Impedance: 50 Ω
• Polarization: horizontal and vertical (cross-polarised elements for MIMO)
• MIMO capability: 4x4 to support higher throughput and reliability
• Connector type: SMA male
• Power input: DC
• Enclosure: weather, dust and vandal resistant, suitable for outdoor use
• Survival wind speed: 160 km/h

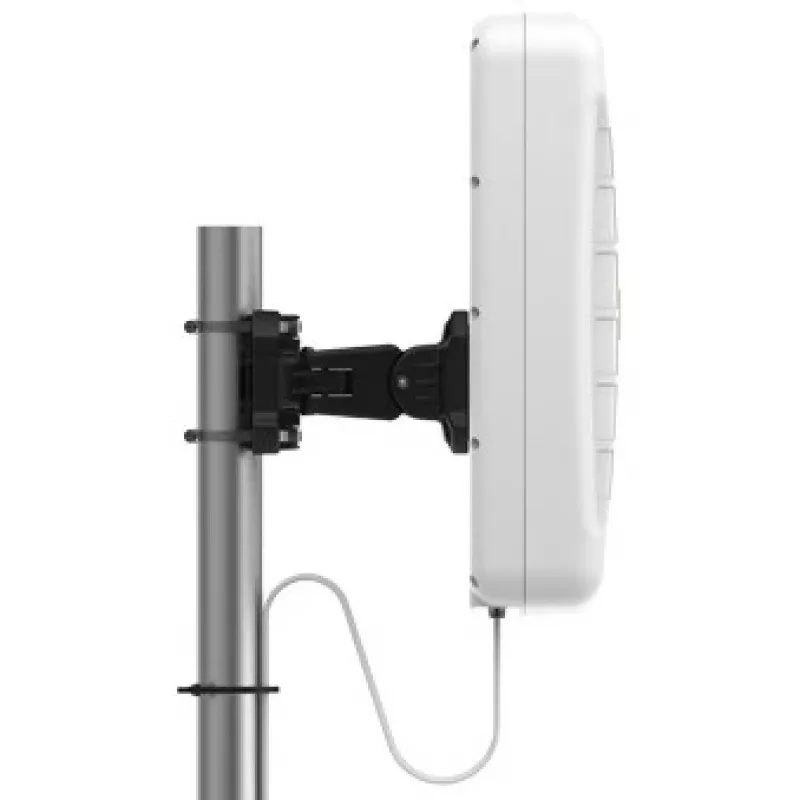

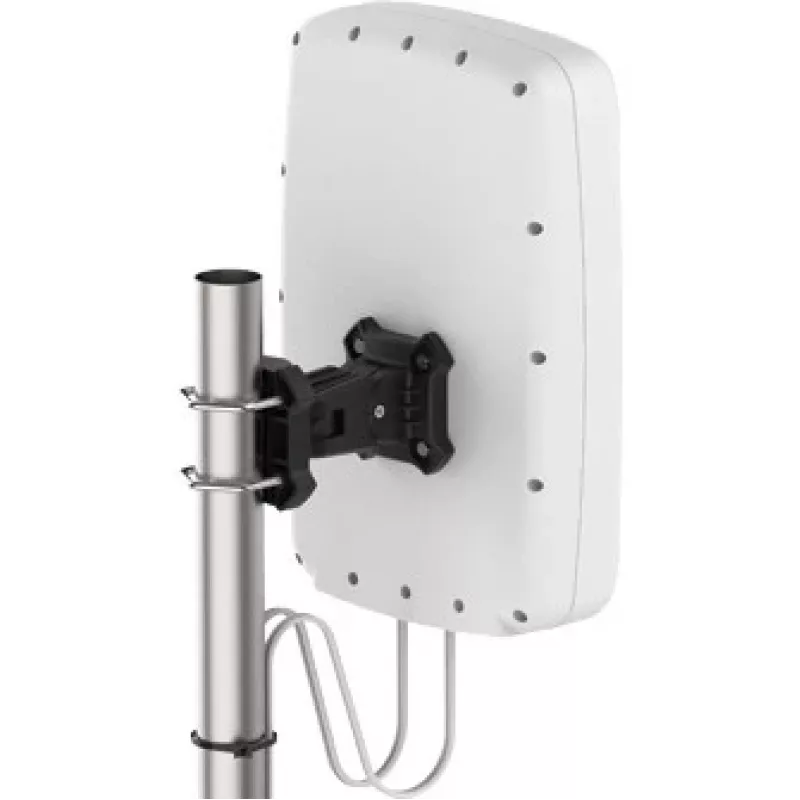

• Mounting options: wall or pole
• Dimensions (approx.): 290 × 110 × 444 mm

How to use

Mount the XPOL-24 on a suitable pole or wall bracket at a location with clear line-of-sight to the desired cellular towers where possible. Connect the antenna to your modem, router or radio using an appropriate coaxial cable terminated to the SMA male connector. If using 4x4 MIMO, ensure each antenna port is connected to the corresponding radio ports and follow the modem or radio manufacturer’s instructions for antenna configuration and MIMO setup. Provide DC power as required for integrated active elements and verify operation by checking signal strength and throughput on the connected device.

Recommendations

For best performance, place the antenna as high as practicable and oriented to maximise reception of the target network signals. Use quality low-loss coaxial cables and proper lightning protection for outdoor installations. Verify that the chosen mounting location meets local regulations and consider professional installation for exposed or high-elevation mounts.
