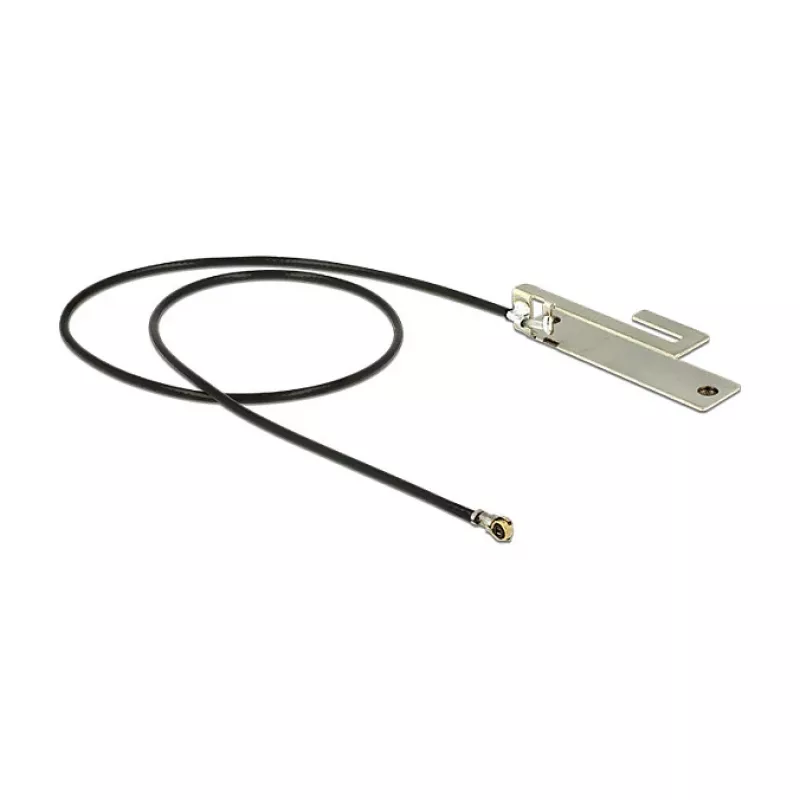

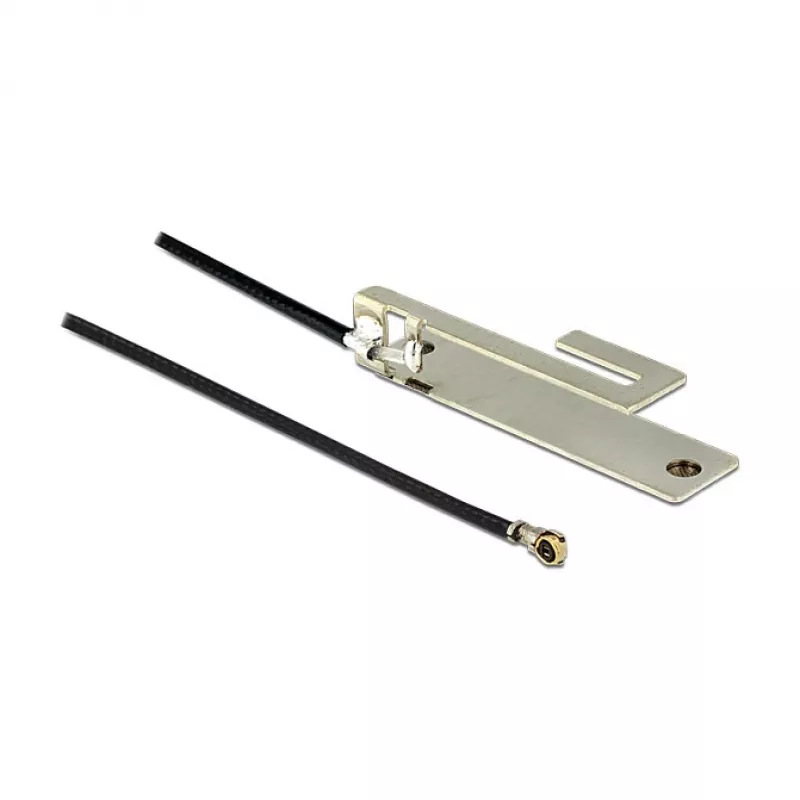

Antena DeLOCK WLAN MHF IV/HSC MXHP32

The DeLOCK WLAN MHF IV/HSC MXHP32 antenna is a compact indoor antenna designed for use with 2.4 GHz WLAN systems. It provides 3 dBi gain, operates across the 2.4–2.5 GHz frequency band, and comes with a 0.25 m coaxial cable terminated in an F-type connector. The antenna has a 50 Ω impedance and a small footprint (6 mm × 25 mm × 5 mm), making it suitable for installation in constrained spaces. It is supplied in a polybag for easy handling and storage.

Advantages

The antenna delivers a stable 3 dBi gain for improved reception and transmission within the 2.4 GHz WLAN band while maintaining standard 50 Ω impedance for compatibility with common RF equipment. Its compact size and short coaxial lead simplify placement inside devices or enclosures. The F-type connector provides a reliable connection and the included polybag protects the antenna during transport and storage.

Suitable for

• Indoor Wi‑Fi modules and routers operating on 2.4 GHz
• Embedded wireless devices with MHF IV/HSC interfaces
• Small enclosures or installations with limited space

Key specifications

• Antenna gain: 3 dBi
• Frequency band: 2.4 – 2.5 GHz
• Impedance: 50 Ω
• Connector: F-type
• Cable length: 0.25 m coaxial
• Dimensions: 6 mm × 25 mm × 5 mm
• Colour: Black

How to use

Connect the F-type terminated coaxial cable to the corresponding socket or adapter on the WLAN device following the device manufacturer’s instructions. Position the antenna inside the enclosure or near the device where it will have the least obstruction for the 2.4 GHz signal. Ensure the cable routing avoids sharp bends or pinching to preserve signal quality.

Recommendations

For optimal performance, place the antenna vertically and avoid placing metal objects directly between the antenna and the intended coverage area. Verify connector compatibility with your equipment and use appropriate adapters if necessary.
