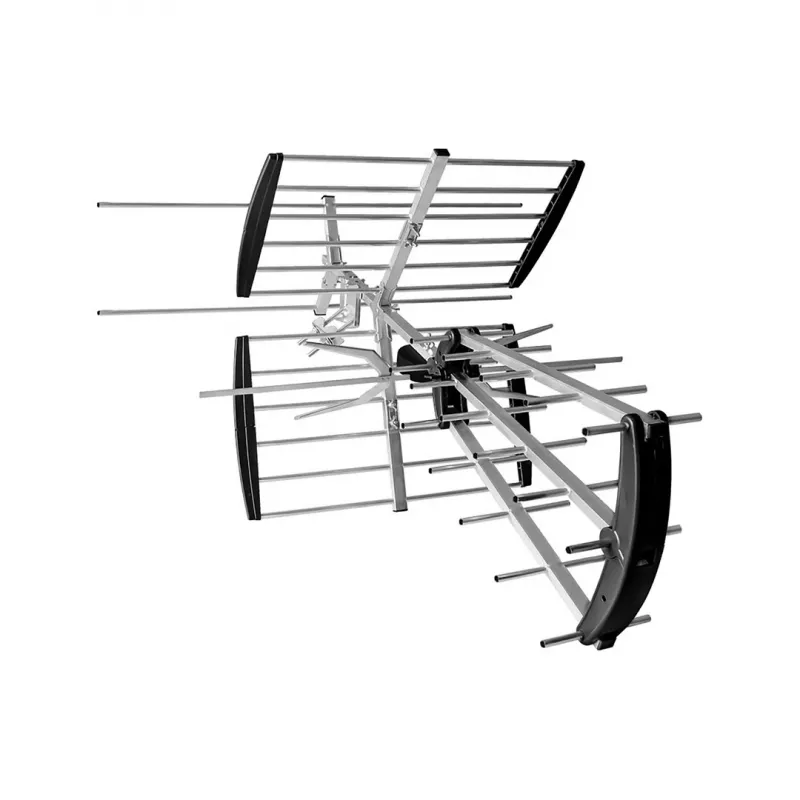

Antena direcional HUAWEI ANT0730 HN63 DPM DVB-T2 Combo LTE VHF/UHF filtro

Typical indoor antennas struggle to pull in distant signals, but the HUAWEI ANT0730 takes a different approach: a mast-mounted Yagi design that combines VHF and UHF reception in one rugged outdoor unit. Built for fringe areas, it delivers clear DVB-T, DVB-T2, and DAB+ even where simple set-top antennas fail.

Highlights

• Directional multi-element Yagi design for maximum gain and interference rejection
• Wide VHF Band III (174–230 MHz) and UHF Band IV/V (470–694 MHz) coverage
• Integrated LTE filter blocks mobile signals above 694 MHz, preventing dropouts
• High gain: up to 10 dBi on VHF and 16.5 dBi on UHF
• Robust aluminium and UV-resistant plastic construction for year-round outdoor use
• Includes mast clamp for poles Ø 25–60 mm; withstands wind up to 120 km/h

In daily use

Mount the HN63 DPM on a rooftop, balcony, or attic mast and point it toward your nearest transmitter. The F-type female connector accepts standard 75-ohm coaxial cable (not included), and the antenna can be oriented horizontally or vertically to match broadcast polarization. Its high front-to-back ratio (>20 dB) suppresses reflections and multi-path distortion, while the LTE filter keeps 4G/5G signals from overloading your tuner. Whether you are upgrading a fringe reception setup or building a new DVB-T2 system, this antenna provides stable, low-noise performance.

Full specifications

• Antenna type: Directional Yagi-style combo antenna
• Frequency range: VHF 174–230 MHz, UHF 470–694 MHz
• Gain: VHF 8–10 dBi, UHF 12–16.5 dBi
• LTE filter: Integrated (blocks frequencies > 694 MHz)
• Polarization: Horizontal (can be mounted vertically)
• Impedance: 75 Ohm
• Connector: F-type (female)
• VSWR: < 2.5
• Front-to-back ratio: > 20 dB
• Compatibility: DVB-T, DVB-T2, DAB+
• Mounting: Mast clamp included (for mast Ø 25-60 mm)
• Material: Aluminium, UV-resistant plastic
• Wind load resistance: Up to 120 km/h
• Number of elements: Multi-element design

Final note

The HUAWEI ANT0730 is a professional-grade outdoor antenna that ensures reliable reception of terrestrial digital broadcasts even in challenging locations.
