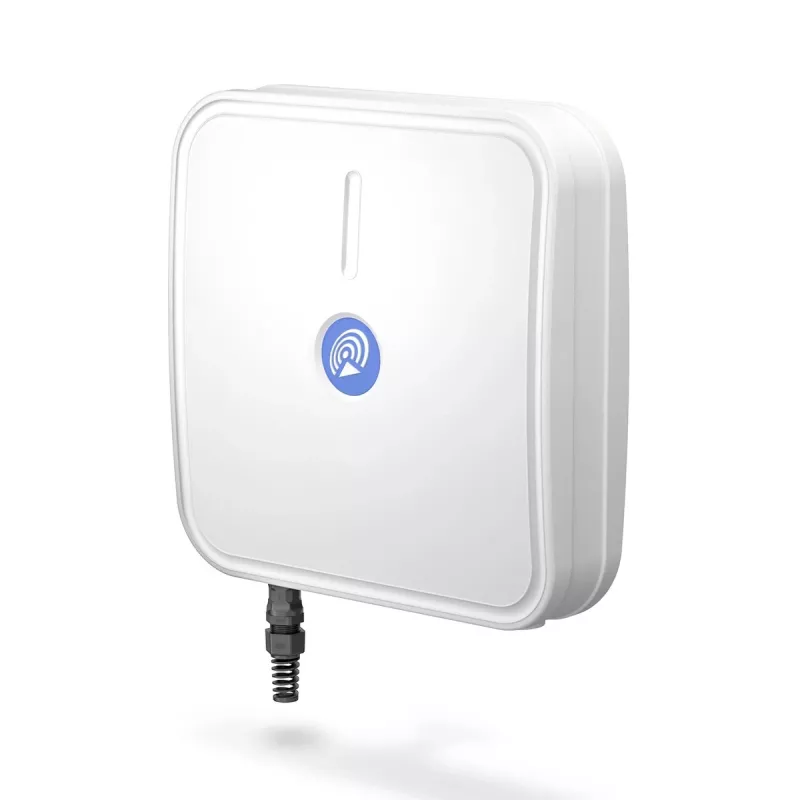

Antena direcional QuWireless QuMax XR All In

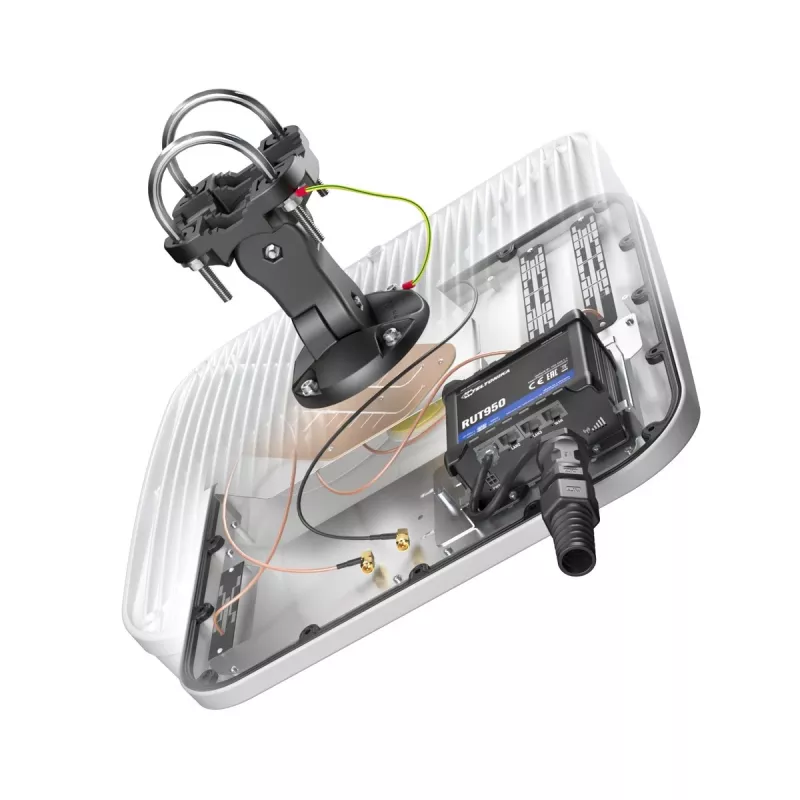

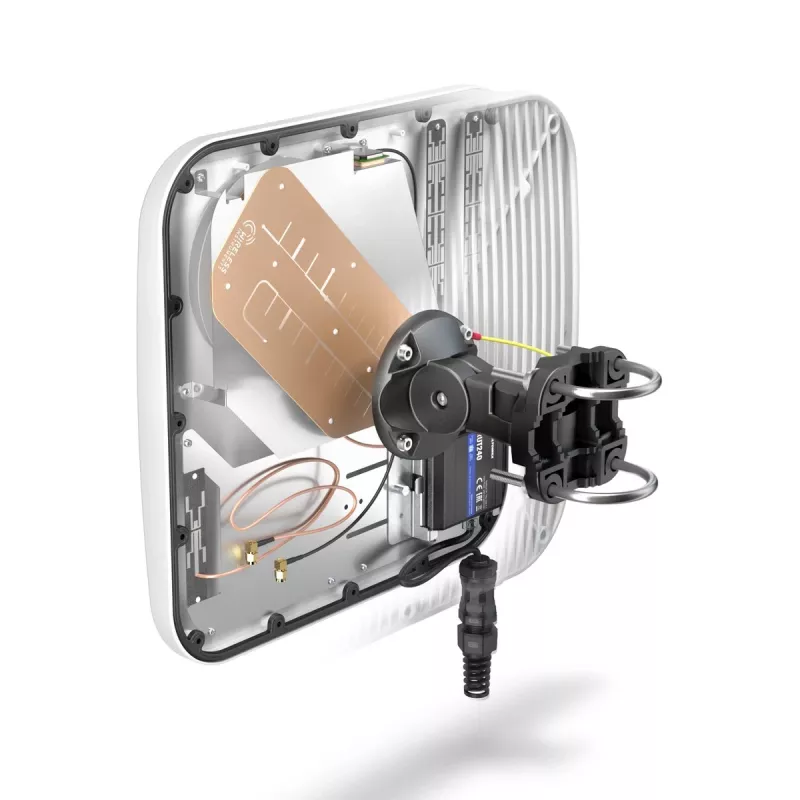

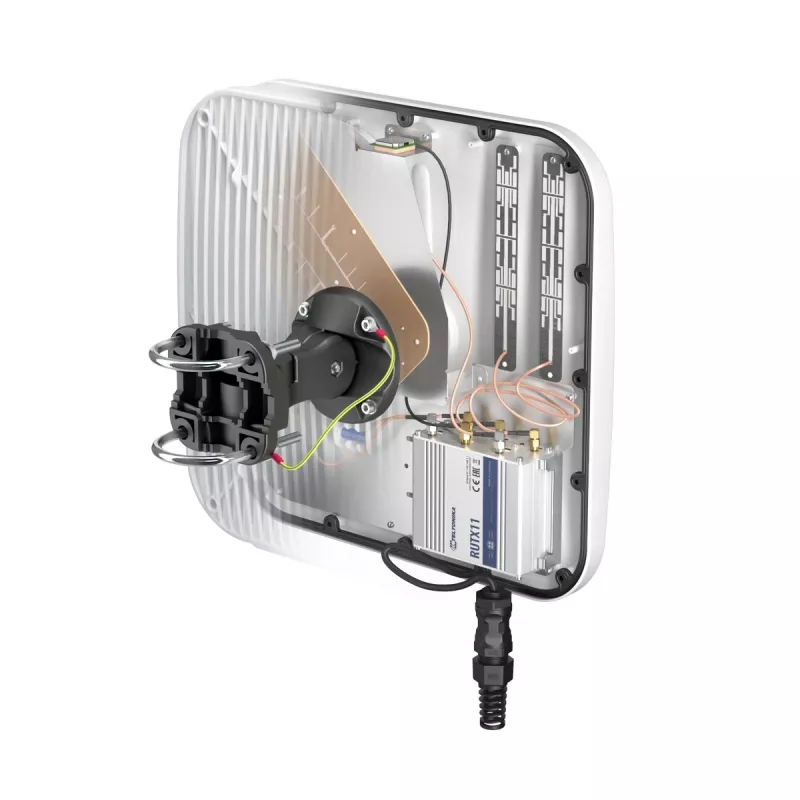

The QuWireless QuMax XR All In is an integrated outdoor multi-band antenna combining a high-gain directional LTE antenna with embedded omni Wi‑Fi (2.4 / 5 GHz), Bluetooth and GPS antennas in a single IP67 enclosure. The housing is sized to accommodate a Teltonika RUT series router (models RUT200/240/241/950/951/955/956/X09/X11), and the antenna supports a wide frequency range (0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz for cellular and 2.4–2.5 / 4.7–6 GHz for Wi‑Fi) with dual polarization and a 7 dBi directional LTE gain.

Advantages

The integrated design reduces external cabling and simplifies installation by combining directional LTE, dual‑band omni Wi‑Fi, Bluetooth and GPS into one weatherproof unit. Dual polarization and multi‑band coverage provide compatibility with many cellular and Wi‑Fi deployments, while the built‑in space for Teltonika RUT routers enables a compact, protected fixed installation. The PoE/LAN connector option eases power and data delivery to the mounted router.

Suitable for

• Fixed long‑range cellular connections to distant base stations
• Outdoor Wi‑Fi coverage using 2.4 GHz and 5 GHz bands
• Industrial or remote sites requiring a compact, weatherproof router installation
• Deployments needing GPS and Bluetooth signals alongside cellular and Wi‑Fi

Key specifications

• Model: QuWireless QuMax XR All In (MPN: AXRA)
• LTE directional gain: 7 dBi
• Frequency ranges: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz (cellular); 2.4–2.5 / 4.7–6 GHz (Wi‑Fi)
• Polarization: dual polarization
• Connector type: PoE / LAN
• Enclosure rating: IP67
• Dimensions: 392 mm × 99 mm × 392 mm
• Made in Poland

How to use

Mount the QuMax XR All In on a suitable outdoor mast or wall using corrosion‑resistant fasteners and orient the directional LTE panel toward the target base station for best reception. Install a compatible Teltonika RUT series router inside the enclosure following the router manufacturer’s mounting instructions, connect the antenna cables to the router’s antenna ports and provide power/data via the PoE/LAN connector if supported. Ensure cable glands are tightened and seals are intact to maintain IP67 protection.

Recommendations

For optimal LTE performance, point the directional panel toward the strongest nearby cell tower and verify signal levels in multiple positions before final tightening. Use shielded, weather‑rated Ethernet and antenna cabling for outdoor runs, and follow local regulations for mast and rooftop installations. Periodically inspect seals and connectors to preserve weatherproofing and signal quality.
